2016 Yamaha Raider (XV19CGR) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2016 Yamaha Raider (XV19CGR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

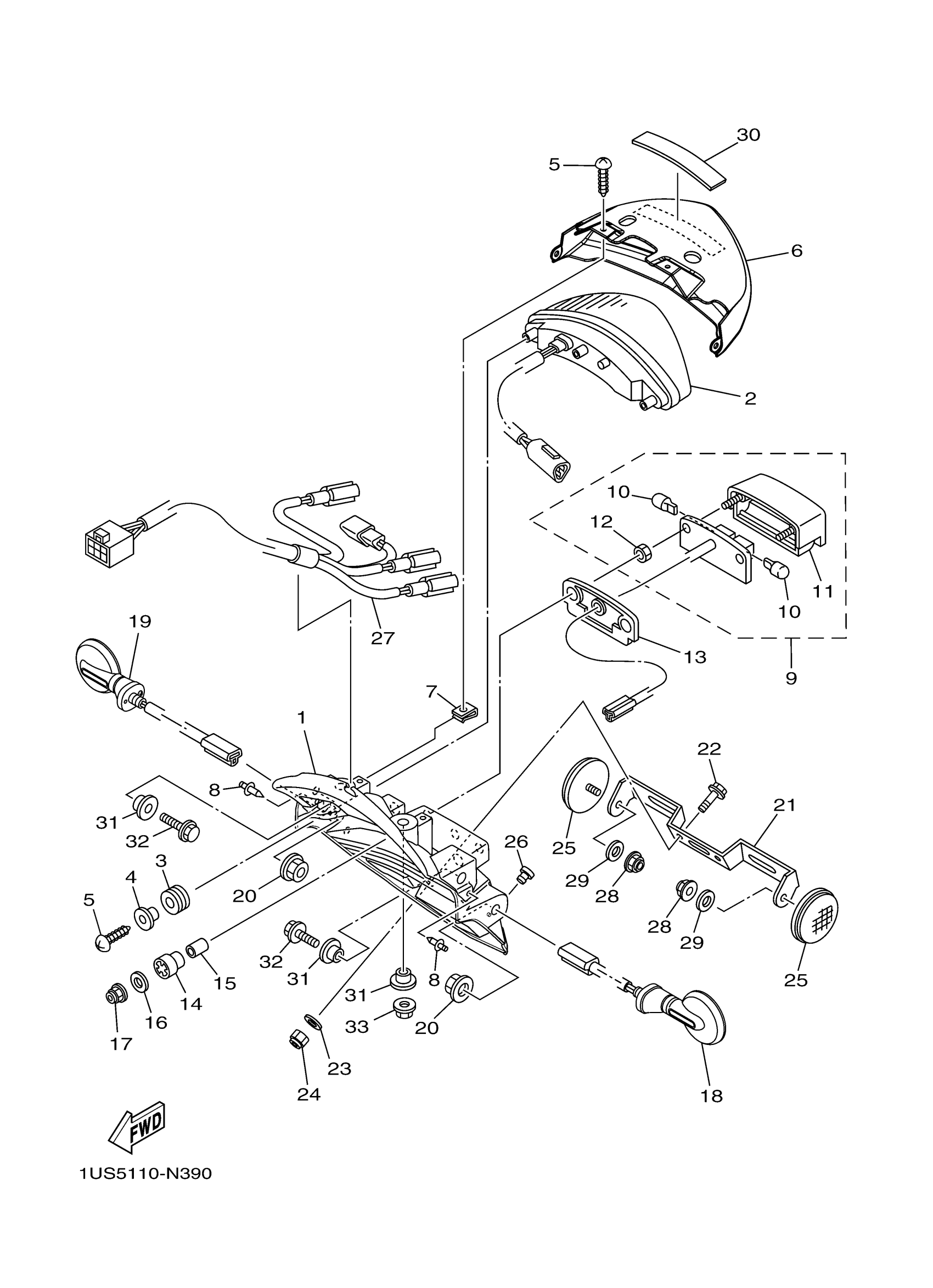

2016 Yamaha Raider (XV19CGR) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BASE, TAILLIGHT

5C7-84711-00-00

1
Out of stock

2

TAILLIGHT UNIT ASSY

5C7-84710-00-00

—
Out of stock

3

DAMPER

5PX-84553-00-00

1
Out of stock

4

COLLAR

5PX-84557-00-00

1
Out of stock

5

SCREW, TRUSS TAP.

97707-50012-00

1

$3.15

In stock

6

COVER, TAILLIGHT

5C7-84716-01-00

—
Out of stock

7

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

8

RIVET

90269-06012-00

1
Out of stock

9

LICENCE LIGHT UNIT ASSY

5C7-84745-00-00

1
Out of stock

10

BULB

5PX-84744-00-00

1
Out of stock

11

BODY, LICENCE LIGHT

5PX-84749-00-00

1
Out of stock

12

NUT, SPECIAL

5PX-84748-00-00

—
Out of stock

13

SEAT, BASE

5PX-84742-00-00

1
Out of stock

14

DAMPER

3F9-84553-00-00

—
Out of stock

15

COLLAR (420)

90387-06241-00

1

$6.18

In stock

16

WASHER, PLATE

90201-05025-00

—

$5.14

In stock

17

NUT, U

95617-05100-00

—

$6.68

In stock

18

REAR FLASHER LIGHT

1US-83330-01-00

—
Out of stock

19

REAR FLASHER LIGHT

1US-83340-01-00

—
Out of stock

20

95702-12500

95702-12500-00

—

$3.03

In stock

21

BRACKET, LICENSE

5C7-84751-00-00

—
Out of stock

22

BOLT, FLANGE(4DU)

95027-06014-00

—

$0.74

In stock

23

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

24

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

25

REFLECTOR, REAR 1

449-85131-02-00

—

$25.74

In stock

26

PLUG(1NL)

90338-07180-00

—

$5.68

In stock

27

CORD, TAILLIGHT

1US-84717-00-00

—
Out of stock

28

NUT, S/L FLANGE

95607-05200-00

—

$6.86

In stock

29

WASHER, PLAIN (3GDF)

90201-051K1-00

—

$6.46

In stock

30

DAMPER (L.H)

1AE-2834E-00-00

—
Out of stock

31

COLLAR

90387-06153-00

—
Out of stock

32

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

33

NUT, U FLANGE

95604-06200-00

—

$2.35

In stock
