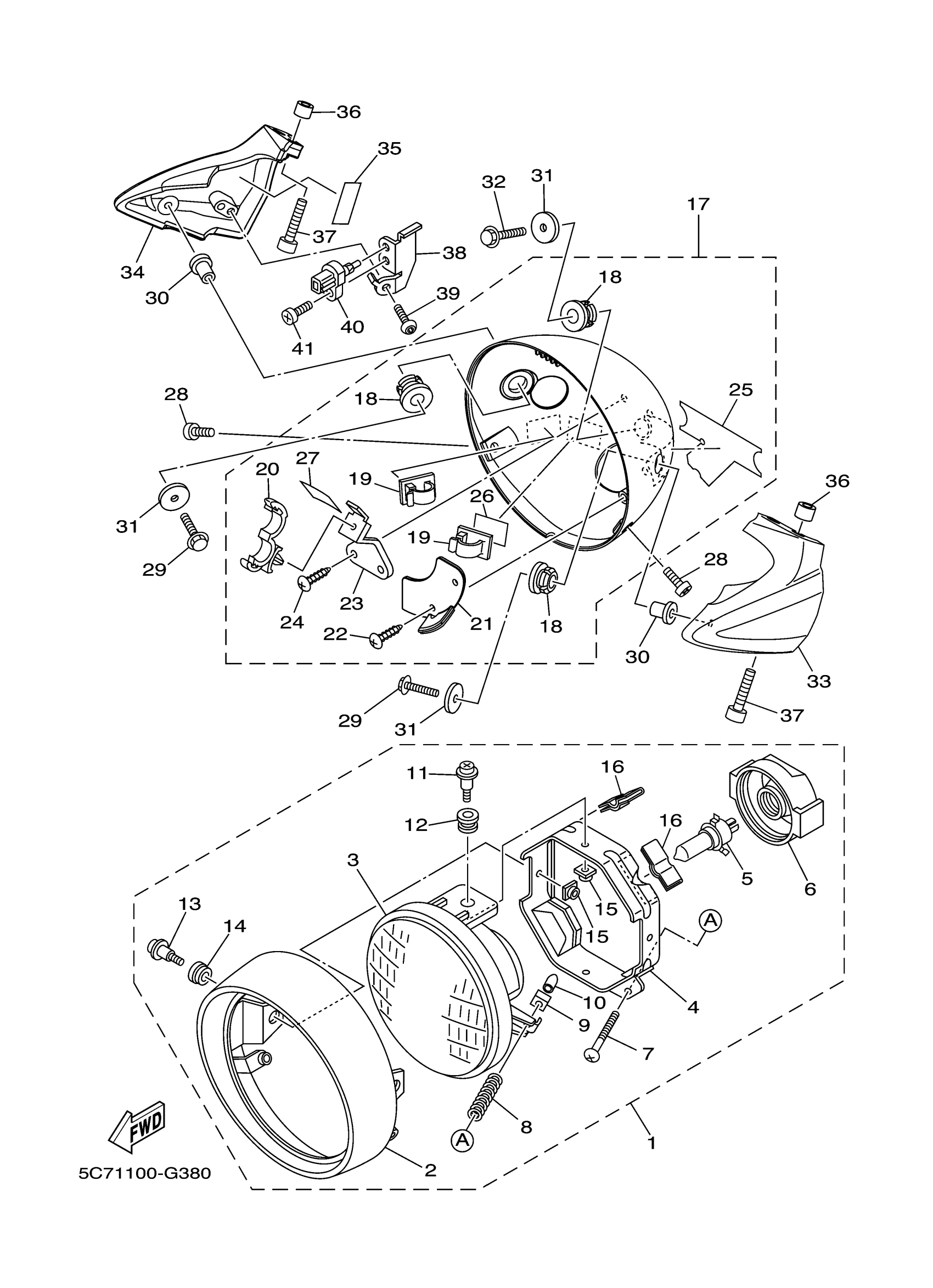

Find the part on the Headlight diagram for your 2016 Yamaha Raider (XV19CGR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Raider (XV19CGR) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

5C7-84310-00-00

1
Out of stock

2

RIM, HEADLIGHT

5C7-84315-00-00

1
Out of stock

3

LENS ASSY

5PX-84320-00-00

1

$184.20

In stock

4

STAY, HEADLIGHT 1

5PX-84318-00-00

1

$59.90

In stock

5

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

6

COVER, SOCKET

5PX-84397-00-00

1

$34.05

In stock

7

SCREW, RIM ADJUSTING

5PX-84331-00-00

1

$6.38

In stock

8

SPRING, SCREW

5PX-84332-00-00

1

$6.38

In stock

9

NUT, ADJUSTING

5PX-84334-00-00

1

$6.38

In stock

10

CAP,1

5PX-84385-00-00

1

$6.38

In stock

11

SCREW, RIM FITTING

5PX-84325-00-00

1

$6.43

In stock

12

GROMMET

5PX-84354-00-00

1

$4.91

In stock

13

SCREW, RIM FITTING

5PX-84125-00-00

1

$6.43

In stock

14

GROMMET

5PX-84352-00-00

1

$5.93

In stock

15

NUT

5PX-84317-00-00

1

$10.20

In stock

16

SEAL

5PX-21669-01-00

—

$9.91

In stock

17

BODY ASSY

5C7-84330-10-00

—
Out of stock

18

DAMPER, HEADLIGHT 1

5PX-84366-00-00

—
Out of stock

19

CLAMP(4FM)

90464-13185-00

—

$3.72

In stock

20

CLAMP(4TR)

90464-18246-00

—
Out of stock

21

PLATE, SET

5C7-84309-00-00

—
Out of stock

22

SCREW, TAPPING

97702-50016-00

—

$1.98

In stock

23

METAL, ADJUSTING

5C7-8431T-00-00

—
Out of stock

24

SCREW, TAPPING

97702-50016-00

—

$1.98

In stock

25

PLATE, GUIDE

5C7-8413G-00-00

—
Out of stock

26

SEAL

5C7-28307-00-00

—
Out of stock

27

DAMPER

2AL-84553-00-00

—

$10.55

In stock

28

SCREW, BIND(4DN)

98980-05014-00

—

$1.78

In stock

29

BOLT, FLANGE

95022-06025-00

—

$1.46

In stock

30

COLLAR

90387-06206-00

—
Out of stock

31

WASHER, PLATE

90201-06086-00

—
Out of stock

32

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

33

STAY, HEADLIGHT 1

5C7-84118-00-00

—
Out of stock

34

STAY, HEADLIGHT 2

5C7-84119-00-00

—
Out of stock

35

DAMPER, HEADLIGHT STAY

5C7-84143-00-00

—

$1.46

In stock

36

PIN, DOWEL(N02)

91810-08012-00

—
Out of stock

37

BOLT, SOCKET

91317-08035-00

—
Out of stock

38

STAY, SETTING

5C7-8431R-00-00

—
Out of stock

39

BOLT, BUTTON HEAD

92012-06012-00

—

$2.49

In stock

40

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

—

$29.26

In stock

41

SCREW, PAN HEAD

98507-05014-00

—

$6.18

In stock
