2016 Yamaha Raider (XV19CGR) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 2016 Yamaha Raider (XV19CGR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

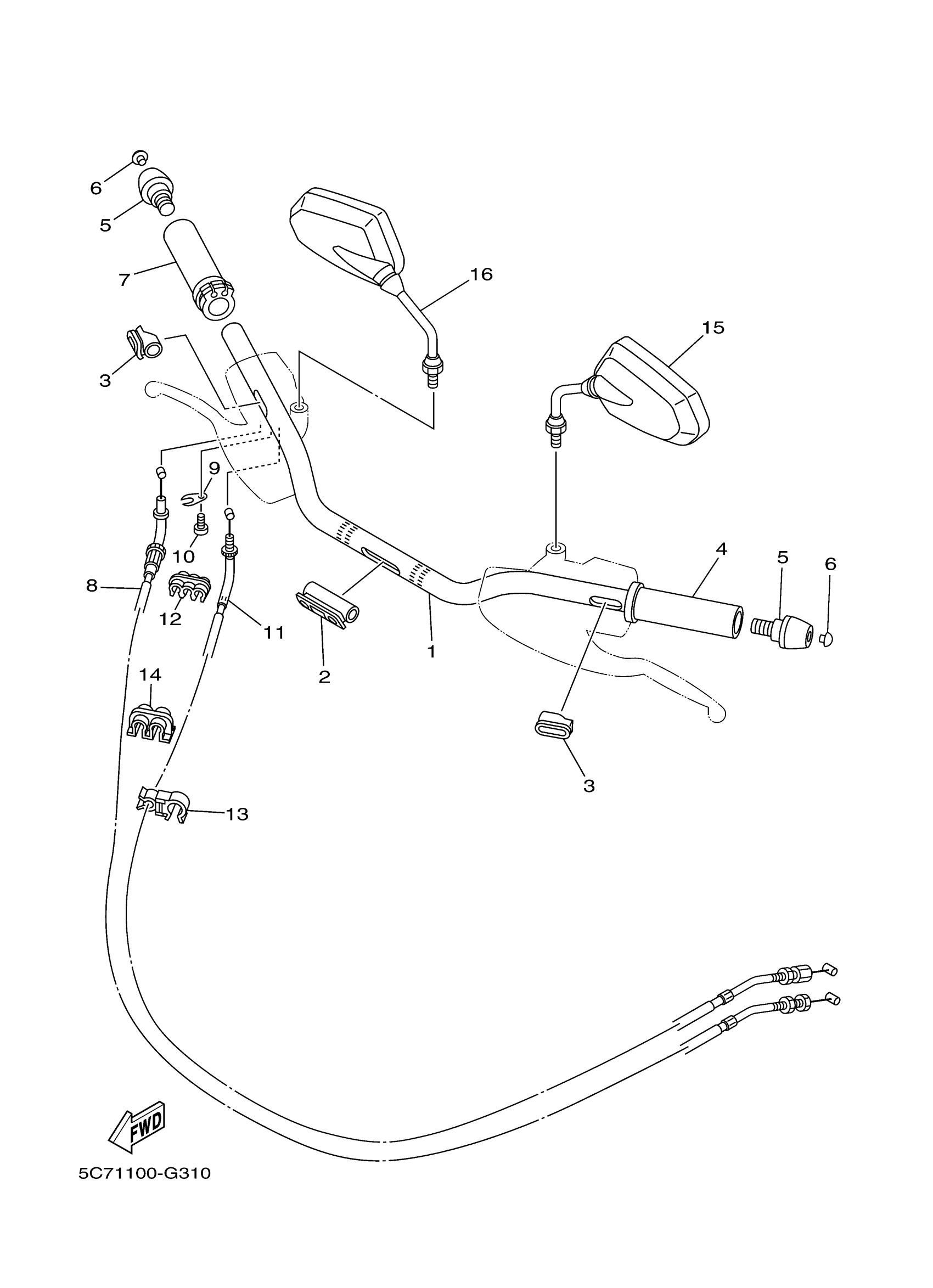

2016 Yamaha Raider (XV19CGR) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

5C7-26111-00-00

1
Out of stock

2

GROMMET, CABLE

5C7-26288-00-00

—
Out of stock

3

GROMMET

1D7-82595-00-00

—
Out of stock

4

GRIP

4NK-26241-01-00

—
Out of stock

5

END, GRIP

1D7-26246-00-00

1
Out of stock

6

PLUG(42X)

90338-10164-00

1

$7.35

In stock

7

GRIP ASSY

4XY-26240-00-00

1
Out of stock

8

WIRE, THROTTLE 1

5C7-26311-01-00

—
Out of stock

9

HOLDER

5H0-26393-00-00

1

$6.72

In stock

10

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

11

CABLE, THROTTLE 2

5C7-26312-01-00

1
Out of stock

12

CLIP(J38)

90468-07179-00

1

$6.89

In stock

13

CLAMP

90464-12008-00

1
Out of stock

14

CLAMP

90464-06008-00

1
Out of stock

15

REAR VIEW MIRROR ASSY (LEFT)

5C7-26280-10-00

—
Out of stock

16

REAR VIEW MIRROR ASSY (RIGHT)

5C7-26290-11-00

—
Out of stock
