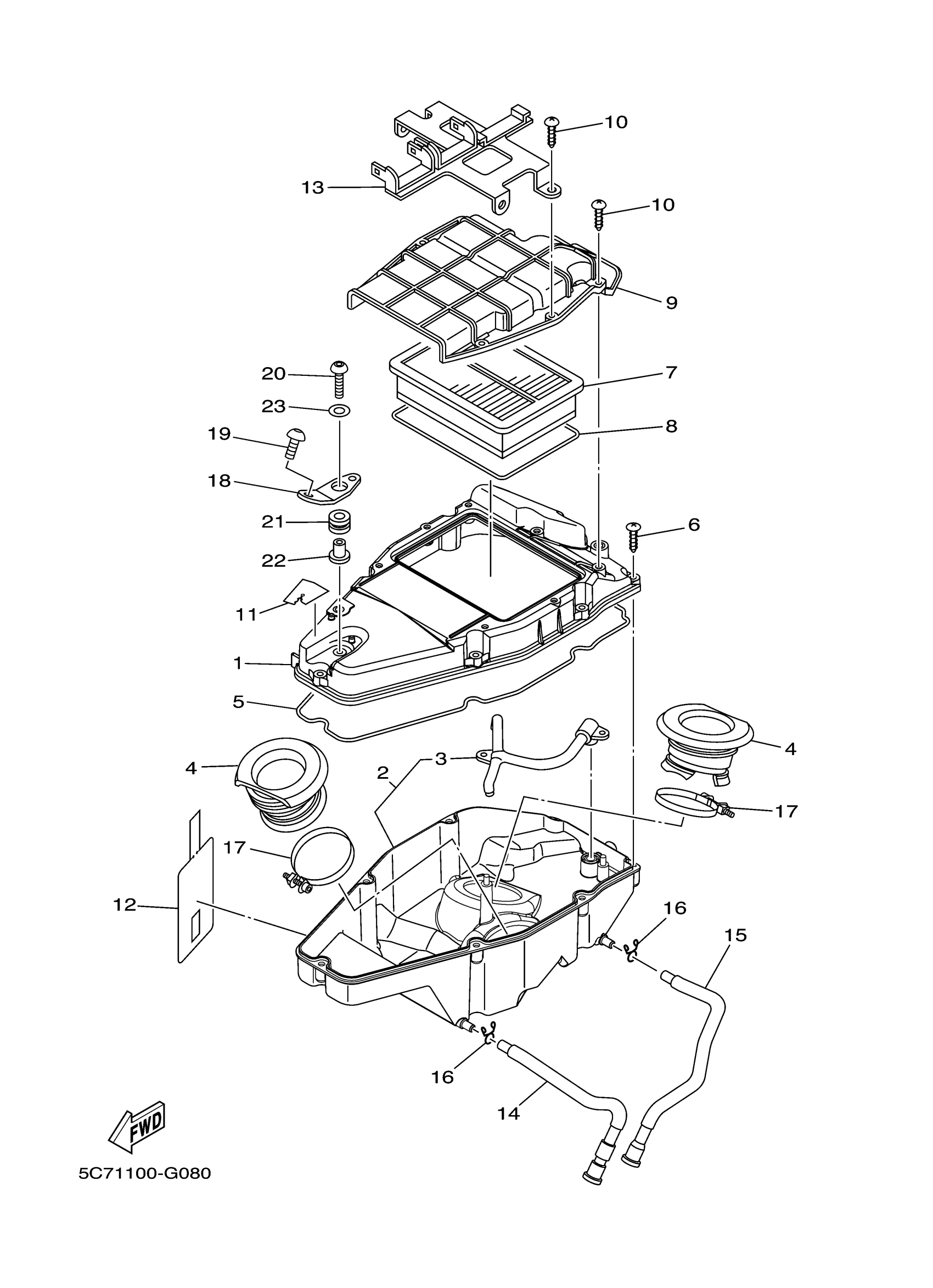

Find the part on the Intake 2 diagram for your 2016 Yamaha Raider (XV19CGR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Raider (XV19CGR) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SILENCER, INTAKE 1

1D7-14431-00-00

—
Out of stock

2

CAP, CLEANER CASE 1

5C7-W1443-00-00

—
Out of stock

3

PIPE

1D7-14419-00-00

1
Out of stock

4

JOINT, AIR CLEANER 1

1D7-14453-00-00

—
Out of stock

5

SEAL

51Y-14462-00-00

1

$11.61

In stock

6

SCREW, TAPPING

97707-50030-00

1
Out of stock

7

ELEMENT, AIR CLEANER 2

1D7-14461-01-00

1
Out of stock

8

SEAL

1D7-14452-00-00

—
Out of stock

9

CAP, CLEANER CASE 1

1D7-14412-00-00

1
Out of stock

10

SCREW, TAPPING(4TV)

90167-05078-00

1

$5.12

In stock

11

DAMPER 1

1D7-14425-00-00

—
Out of stock

12

COVER 1

1D7-14417-00-00

1
Out of stock

13

BRACKET 1

5C7-83955-00-00

1
Out of stock

14

PIPE, DRAIN

5C7-1443E-00-00

—
Out of stock

15

PIPE, DRAIN 2

5C7-1443G-00-00

—
Out of stock

16

CLIP

90467-090A2-00

—

$2.51

In stock

17

HOSE CLAMP ASSY

90450-56001-00

—

$14.77

In stock

18

STAY 2

5C7-14414-00-00

—
Out of stock

19

BOLT, BUTTON HEAD

92012-08016-00

—
Out of stock

20

BOLT, BUTTON HEAD

92012-06025-00

—
Out of stock

21

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

22

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

23

WASHER, PLATE 1012832300

90201-06066-00

—
Out of stock
