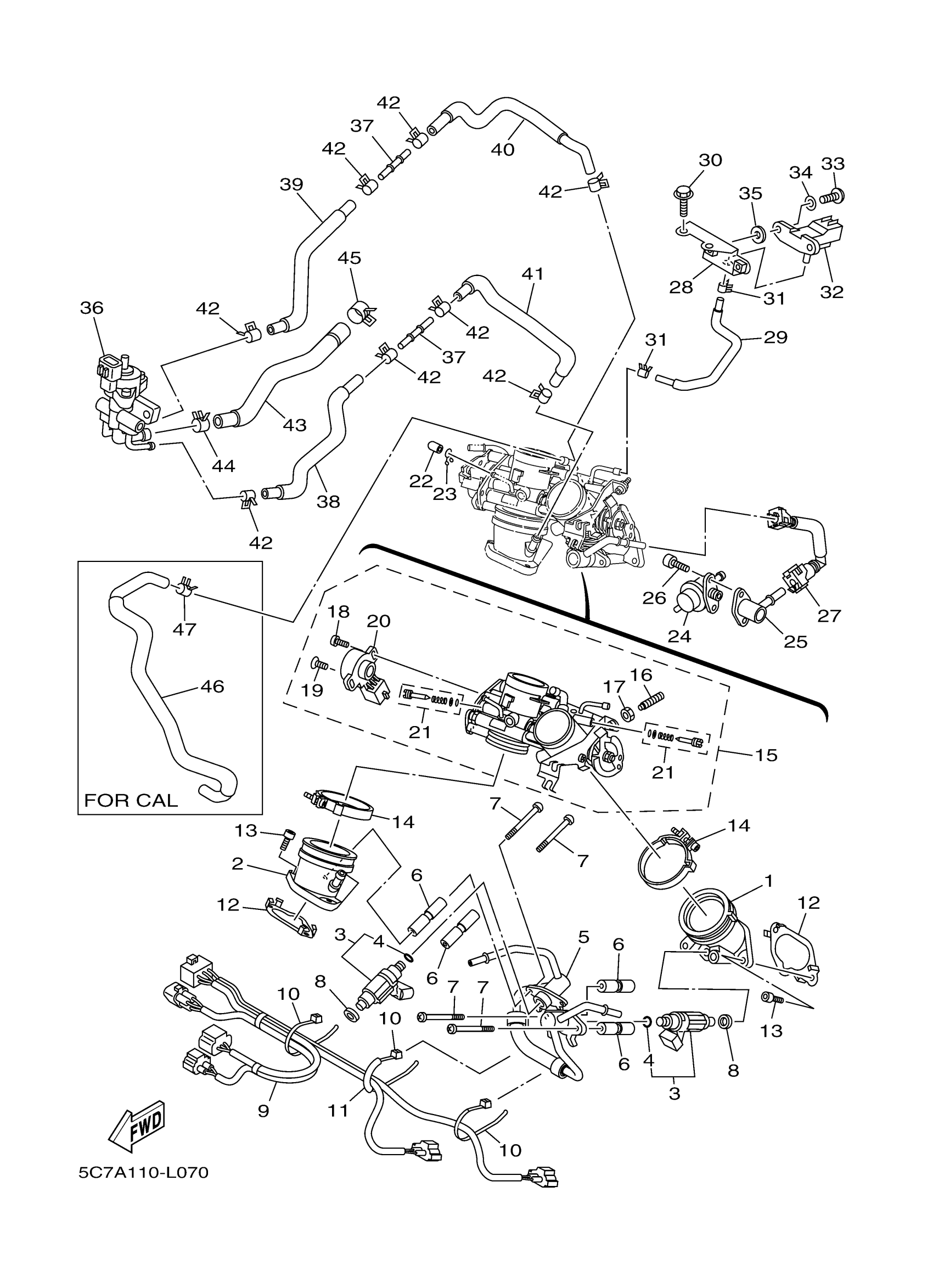

Find the part on the Intake diagram for your 2016 Yamaha Raider (XV19CGR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Raider (XV19CGR) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

1D7-13586-00-00

—
Out of stock

2

JOINT, CARBURETOR 2

1D7-13596-00-00

—
Out of stock

3

INJECTOR ASSY

5YU-13761-00-00

—
Out of stock

4

O-RING

5FL-14147-00-00

1
Out of stock

5

PIPE INLET ASSEMBLY

1D7-13930-00-00

—
Out of stock

6

COLLAR

1D7-13716-00-00

—
Out of stock

7

SCREW, PAN

98507-06050-00

1
Out of stock

8

GASKET, MANIFOLD

8FP-13556-00-00

1

$12.27

In stock

9

WIRE, SUB LEAD

1D7-82509-40-00

—
Out of stock

10

CLAMP

90464-55002-00

—

$0.99

In stock

11

HOSE

90445-08039-00

—
Out of stock

12

SEAL

1D7-14467-00-00

1
Out of stock

13

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

14

HOSE CLAMP ASSY

90450-62004-00

—

$13.79

In stock

15

THROTTLE BODY ASSY

5C7-13750-10-00

—
Out of stock

16

SCREW

3FV-14567-00-00

—
Out of stock

17

NUT, CABLE ADJUSTING

3JD-14161-00-00

—
Out of stock

18

SCREW

4KM-24453-00-00

—

$4.85

In stock

19

SCREW, FLAT

98707-04010-00

—
Out of stock

20

THROTTLE SENSOR AS

8GL-85885-01-00

—

$76.17

In stock

21

AIR SCREW SET

5JW-14104-00-00

—

$14.51

In stock

22

CAP

895-14169-00-00

—

$4.02

In stock

23

CLIP, PIPE

8A7-14139-00-00

—

$6.80

In stock

24

REGULATOR, PRESSURE

5C7-13906-00-00

—

$182.31

In stock

25

JOINT

5PX-13595-00-00

—
Out of stock

26

BOLT

91312-05025-00

—

$6.25

In stock

27

PIPE, FUEL 2

5C7-13972-00-00

—
Out of stock

28

STAY 1

1D7-14493-00-00

—
Out of stock

29

HOSE, AIR

1D7-13895-00-00

—
Out of stock

30

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

31

CLIP(42X)

90467-07093-00

—

$1.72

In stock

32

SENSOR, PRESSURE

1C7-82380-00-00

—
Out of stock

33

BOLT(6A1)

97095-05016-00

—

$1.46

In stock

34

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

35

WASHER, PLATE (35R)

90201-060H9-00

—

$3.40

In stock

36

LINEAR, CONTROL VALVE

5C7-85880-01-00

—
Out of stock

37

PIPE

5PX-14466-00-00

—
Out of stock

38

HOSE 1

5C7-13545-00-00

—
Out of stock

39

HOSE 2

5C7-13546-00-00

—
Out of stock

40

HOSE 3

5C7-13547-00-00

—
Out of stock

41

HOSE, AIR 4

5C7-13548-00-00

—
Out of stock

42

CLIP(3BM)

90467-10135-00

—

$6.91

In stock

43

PIPE, AIR

5C7-13897-00-00

—
Out of stock

44

CLIP

90467-15001-00

—

$5.72

In stock

45

CLIP(3TB)

90467-17128-00

—

$6.68

In stock

46

PIPE

5C7-14349-00-00

—
Out of stock

47

CLIP

90467-09120-00

—

$5.62

In stock
