2016 Yamaha Raider (XV19CGR) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2016 Yamaha Raider (XV19CGR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

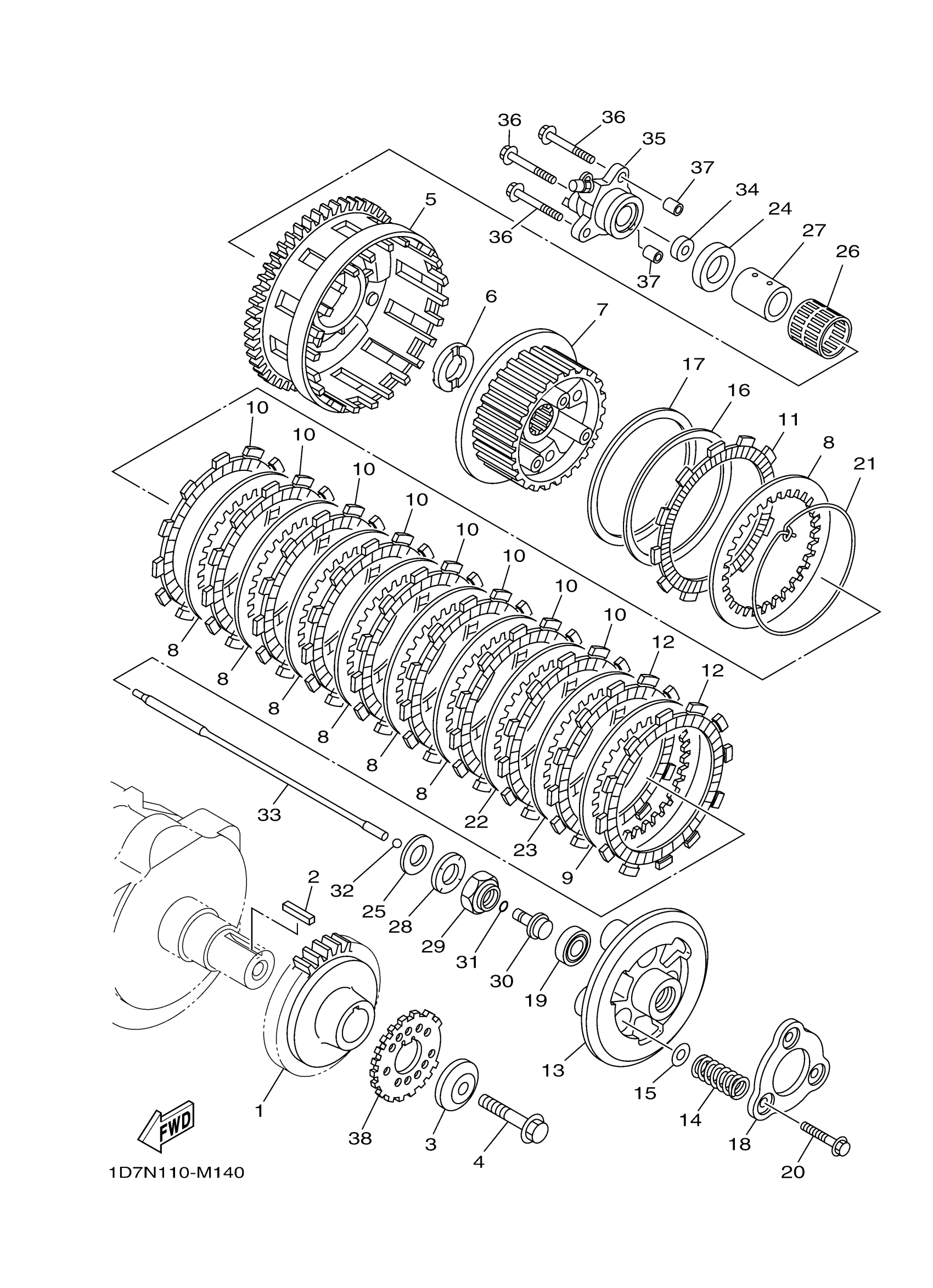

2016 Yamaha Raider (XV19CGR) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

1D7-16111-00-00

—
Out of stock

2

KEY, FEATHER

4WM-16193-00-00

—
Out of stock

3

SPACER 1

4WM-16181-00-00

—
Out of stock

4

BOLT, FLANGE

90105-12059-00

—
Out of stock

5

PRIMARY DRIVEN GEAR COMP.

1D7-16150-10-00

1
Out of stock

6

PLATE, THRUST 1

1D7-16154-00-00

1
Out of stock

7

BOSS, CLUTCH

1D7-16371-10-00

—
Out of stock

8

PLATE, CLUTCH 2

2H7-16325-10-00

1
Out of stock

9

PLATE, CLUTCH 2

1D7-16325-00-00

1
Out of stock

10

PLATE, FRICTION

1D7-16321-00-00

1
Out of stock

11

PLATE, FRICTION 2

4XV-16331-00-00

1
Out of stock

12

PLATE, FRICTION 2

1PK-16331-00-00

1
Out of stock

13

PLATE, PRESSURE 1

1D7-16351-10-00

1
Out of stock

14

SPRING, COMPRESSION

1D7-16173-00-00

—
Out of stock

15

PLATE, SEAT

1D7-16384-00-00

1
Out of stock

16

SPRING, CLUTCH BOSS

36Y-16383-00-00

—
Out of stock

17

PLATE, SEAT

36Y-16384-00-00

—
Out of stock

18

PLATE, PRESSURE 2

1D7-16352-00-00

—
Out of stock

19

BEARING(2JN)

93306-00315-00

—
Out of stock

20

SCREW, SPRING

1D7-16337-00-00

—
Out of stock

21

RING, CLUTCH BOSS SPRING SET

2H7-16385-00-00

—
Out of stock

22

PLATE, CLUTCH 1

2H7-16324-10-00

—
Out of stock

22

PLATE, CLUTCH 2

2H7-16325-10-00

1
Out of stock

22

PLATE, CLUTCH 1

47X-16324-10-00

—
Out of stock

23

PLATE, CLUTCH 1

2H7-16324-10-00

—
Out of stock

23

PLATE, CLUTCH 2

2H7-16325-10-00

1
Out of stock

23

PLATE, CLUTCH 1

47X-16324-10-00

—
Out of stock

24

PLATE, THRUST 2

1D7-16164-00-00

—
Out of stock

25

WASHER, PLATE

90201-22013-00

—
Out of stock

26

BEARING

93310-33559-00

—
Out of stock

27

COLLAR

90387-28006-00

—
Out of stock

28

WASHER, CONICAL SPRING

90208-22003-00

—
Out of stock

29

NUT

90179-22010-00

—
Out of stock

30

ROD, PUSH 1

4KG-16356-00-00

—
Out of stock

31

O-RING (26H)

93210-06632-00

—
Out of stock

32

BALL (498)

93511-32027-00

—
Out of stock

33

ROD, PUSH 2

1D7-16357-00-00

—
Out of stock

34

OIL SEAL(12E)

93109-08061-00

—
Out of stock

35

PUSH LEVER COMP.

1D7-16381-00-00

—
Out of stock

36

BOLT, FLANGE

95814-06055-00

—
Out of stock

37

PIN, DOWEL

99530-08012-00

1
Out of stock

38

ROTOR

1D7-81673-01-00

—
Out of stock
