2016 Yamaha Raider (XV19CGR) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 2016 Yamaha Raider (XV19CGR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

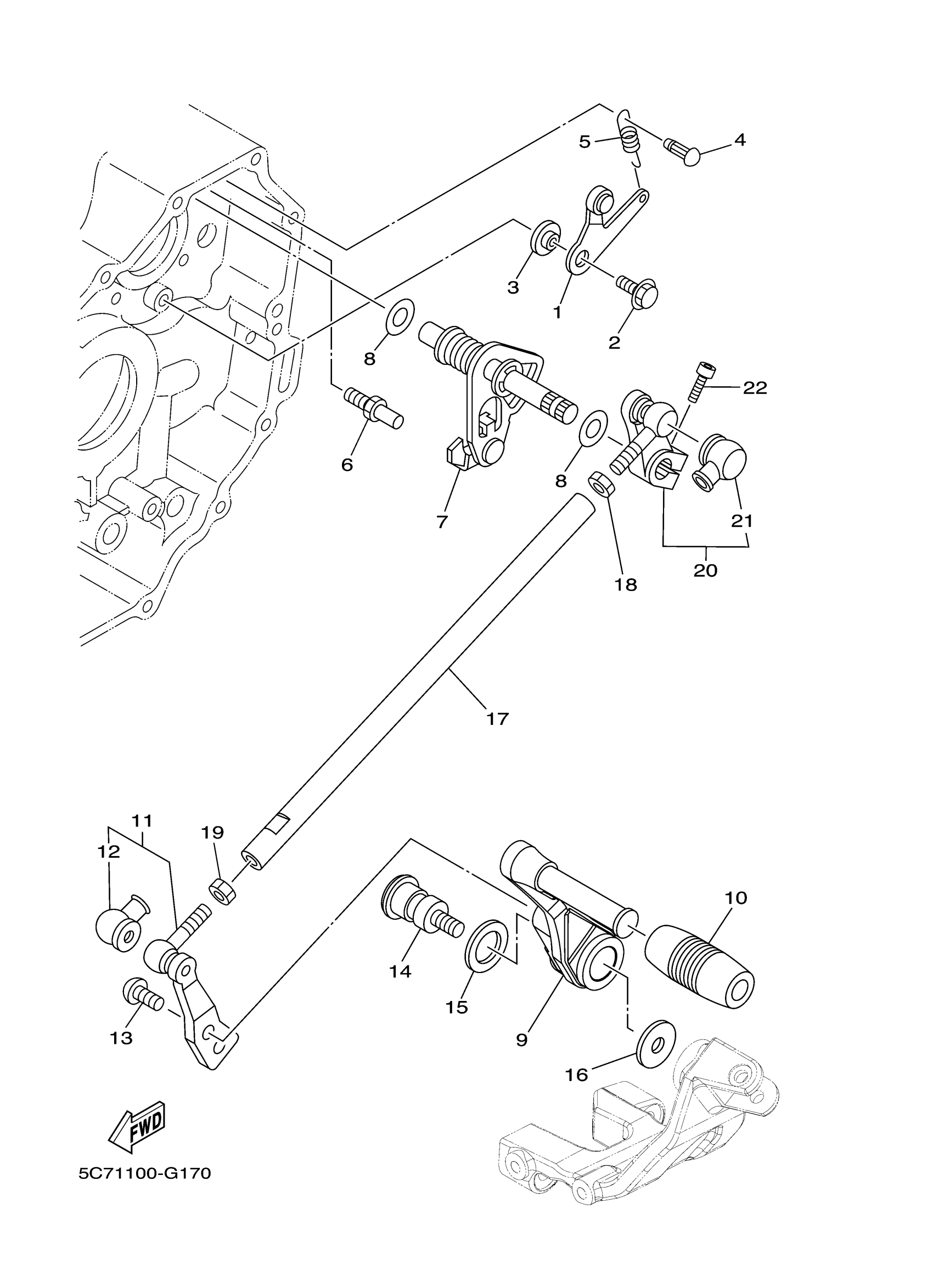

2016 Yamaha Raider (XV19CGR) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STOPPER LEVER ASSY

1D7-18140-00-00

—
Out of stock

2

SCREW, WITH WASHER

90159-06028-00

1

$6.26

In stock

3

SPACER

4NX-18175-00-00

—
Out of stock

4

HOOK, SPRING

132-16346-00-00

1
Out of stock

5

HANGER, SPRING

5C7-18144-00-00

—
Out of stock

6

STOPPER, SCREW

5VK-18127-00-00

—

$10.89

In stock

7

SHIFT SHAFT ASSY

1D7-18101-01-00

1
Out of stock

8

WASHER, PLATE (5N6)

90201-127E1-00

1

$3.68

In stock

9

PEDAL, SHIFT

5C7-18111-00-00

1
Out of stock

10

COVER, SHIFT PEDAL

5VN-18113-00-00

1

$13.06

In stock

11

KNOB, SHIFTER

5C7-18164-00-00

—
Out of stock

12

COVER, DUST

2H9-18154-00-00

1
Out of stock

13

BOLT, BUTTON HEAD

92012-08016-00

1
Out of stock

14

BOLT

5C7-27434-09-00

—
Out of stock

15

WASHER, PLATE

90201-18025-00

1

$4.71

In stock

16

WASHER, PLATE

90201-08061-00

—

$6.23

In stock

17

ROD, SHIFT

5C7-18115-00-00

—
Out of stock

18

. NUT

95380-08700-00

1

$3.07

In stock

19

NUT(1KT)

90170-08358-00

—
Out of stock

20

SHIFT LEVER ASSY

5C7-18150-00-00

—
Out of stock

21

COVER, DUST

2H9-18154-00-00

1
Out of stock

22

BOLT,SOCKET HEAD

91314-06020-00

—

$2.05

In stock
