1984 Yamaha Virago 1000 CA (XV1000LC) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1984 Yamaha Virago 1000 CA (XV1000LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

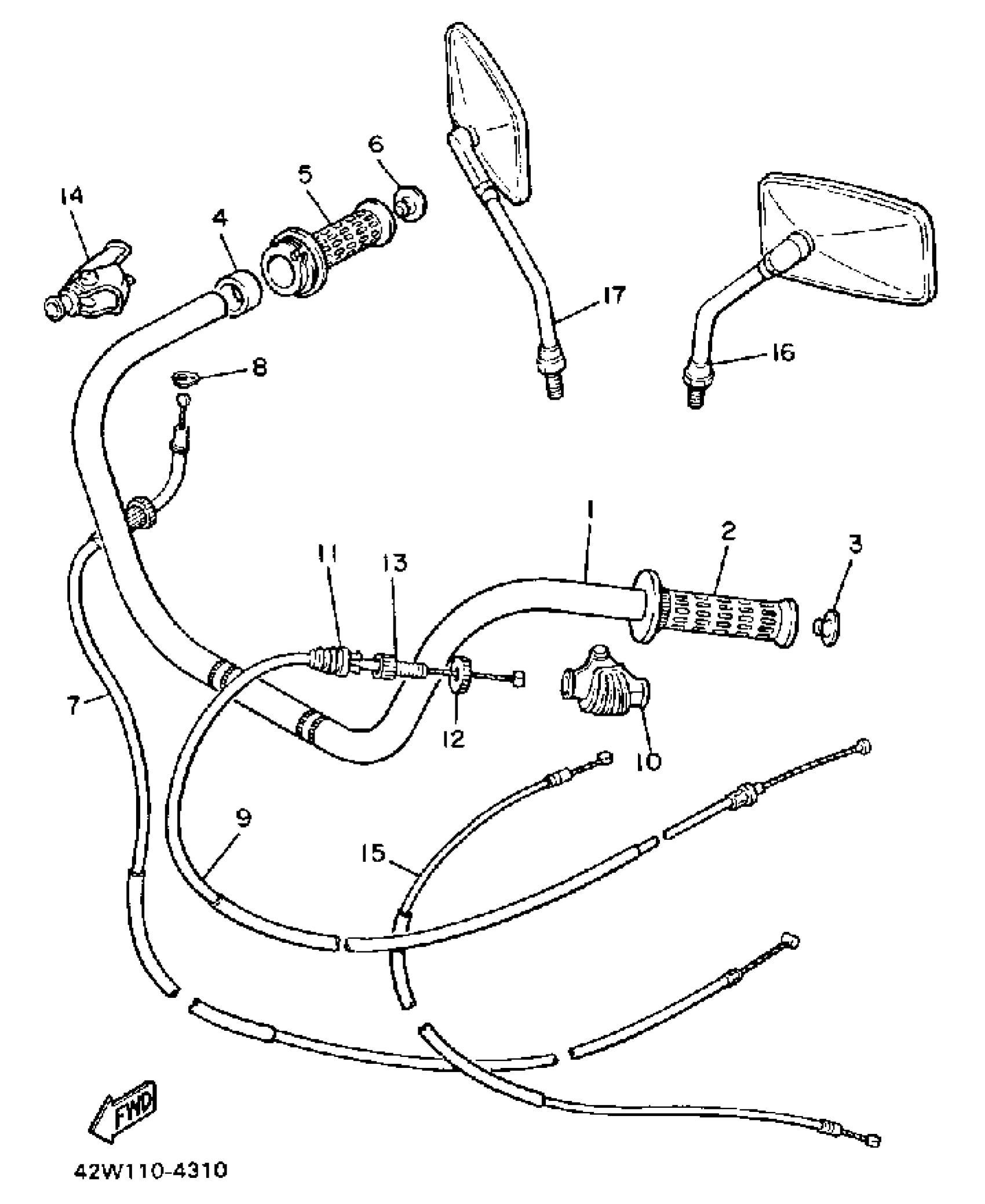

1984 Yamaha Virago 1000 CA (XV1000LC) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

42X-W2611-00-00

1
Out of stock

2

GRIP (L.H)

42X-26241-00-00

—

$32.57

In stock

3

CAP, GRIP

26H-2628J-00-00

1

$7.51

In stock

4

RING, LEAF

31A-26249-00-00

1
Out of stock

5

GRIP ASSEMBLY

42X-26240-00-00

1
Out of stock

6

CAP, GRIP

26H-2628J-00-00

1

$7.51

In stock

7

CABLE, THROTTLE 1

42X-26311-00-00

—

$50.86

In stock

8

HOLDER

5H0-26393-00-00

1

$6.72

In stock

9

CABLE, CLUTCH

57A-26335-00-00

1
Out of stock

10

COVER, HANDLE LEVER

11H-26372-00-00

1
Out of stock

11

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

12

NUT

90179-08030-00

1

$3.78

In stock

13

BOLT

90123-08002-00

1

$8.93

In stock

14

COVER, HANDLE LEVER

31A-26372-10-00

1
Out of stock

15

CABLE, STARTER 1

42X-26331-00-00

1
Out of stock

16

REAR VIEW MIRROR ASSY(LEFT)

4H7-26290-20-00

—
Out of stock

17

REAR VIEW MIRROR ASSY (RIGHT)

4H7-26290-50-00

—
Out of stock
