1984 Yamaha Virago 1000 CA (XV1000LC) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1984 Yamaha Virago 1000 CA (XV1000LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

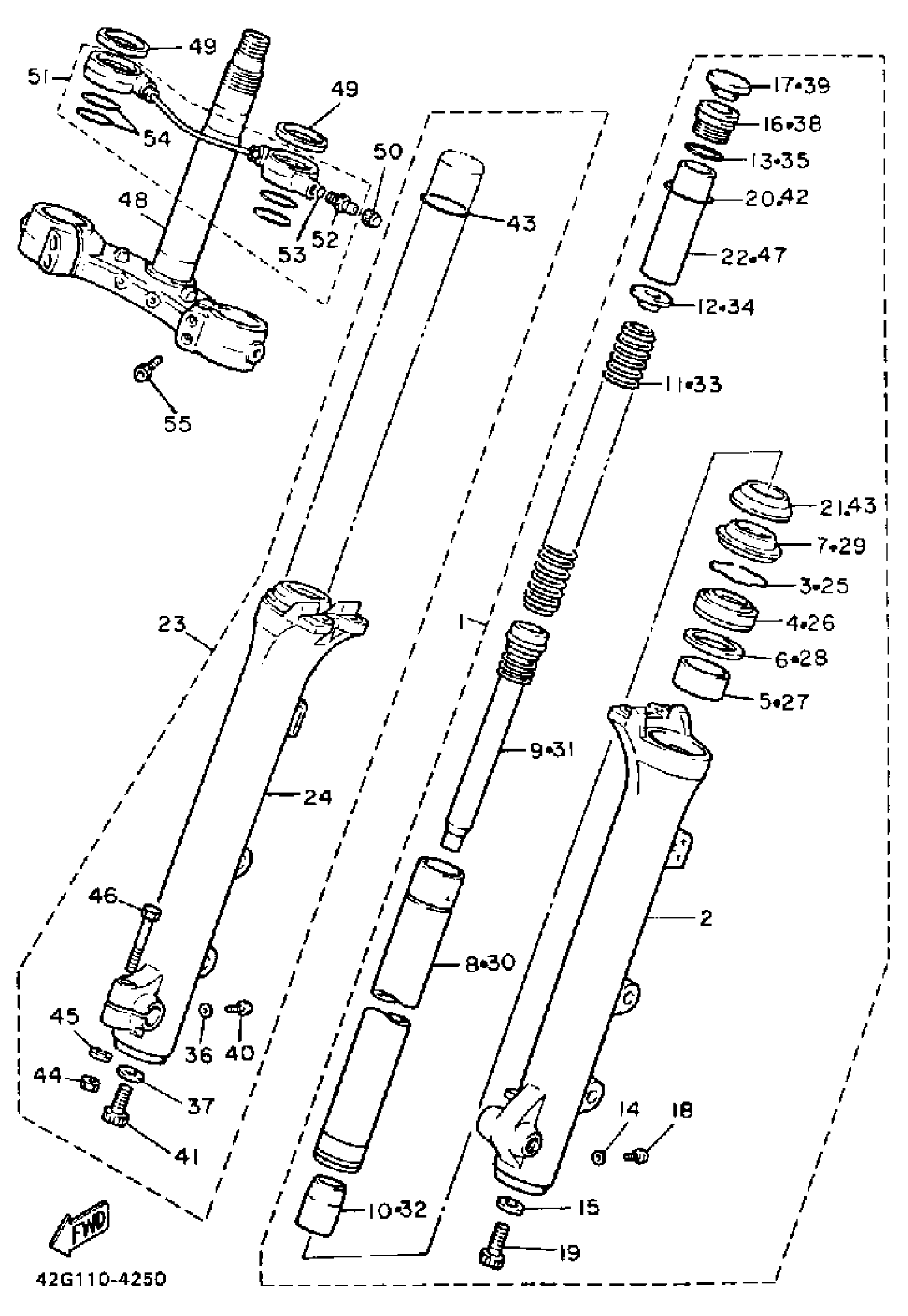

1984 Yamaha Virago 1000 CA (XV1000LC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L (LH) (N/NC)

42H-23102-01-00

1
Out of stock

2

TUBE,OUTER(LEFT)

3JK-23126-10-00

1
Out of stock

3

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

4

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

5

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

6

WASHER

4V2-23146-L0-00

1
Out of stock

7

SEAL, DUST

42H-23144-01-00

1
Out of stock

8

. INNER TUBE COMP1

1TA-23110-00-00

1
Out of stock

9

. CYLINDER COMP, FRONT FORK

33M-23170-00-00

1
Out of stock

10

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

11

. SPRING, FRONT FORK

42H-23141-00-00

1
Out of stock

12

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

13

O-RING

1W1-23114-L0-00

1
Out of stock

14

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

15

GASKET

509-23158-L0-00

1

$14.34

In stock

16

. BOLT, CAP

31A-23111-31-00

1
Out of stock

17

CAP, FRONT FORK

42H-23168-00-00

—
Out of stock

18

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

20

. RING, SNAP

42H-23153-00-00

1
Out of stock

21

SEAL, DUST

42H-23144-01-00

1
Out of stock

22

. SPACER

42H-23118-00-00

1
Out of stock

23

FRONT FORK ASSEMBLY R (R.H) (N/NC)

42H-23103-01-00

1
Out of stock

24

TUBE,OUTER(RIGHT)

3JK-23136-10-00

1
Out of stock

25

RING, SNAP

3R4-23153-00-00

1

$7.51

In stock

26

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

27

METAL, SLIDE 1

2YK-23125-00-00

1
Out of stock

28

WASHER

4V2-23146-L0-00

1
Out of stock

29

SEAL, DUST

42H-23144-01-00

1
Out of stock

30

. INNER TUBE COMP1

1TA-23110-00-00

1
Out of stock

31

. CYLINDER COMP, FRONT FORK

33M-23170-00-00

1
Out of stock

32

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

33

. SPRING, FRONT FORK

42H-23141-00-00

1
Out of stock

34

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

35

O-RING

1W1-23114-L0-00

1
Out of stock

36

GASKET, DRAIN PLUG

122-23129-00-00

1

$6.37

In stock

37

GASKET

509-23158-L0-00

1

$14.34

In stock

38

. BOLT, CAP

31A-23111-31-00

1
Out of stock

39

CAP, FRONT FORK

42H-23168-00-00

—
Out of stock

40

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

41

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

42

. RING, SNAP

42H-23153-00-00

1
Out of stock

43

SEAL, DUST

42H-23144-01-00

1
Out of stock

44

NUT(6L2)

95333-08600-00

—

$3.20

In stock

45

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

46

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

47

. SPACER

42H-23118-00-00

1
Out of stock

48

UNDER BRACKET COMP.

2AE-23340-30-00

1
Out of stock

49

WASHER

2H7-23163-00-00

—

$4.35

In stock

50

CAP, AIR VALVE

10M-23184-01-00

1
Out of stock

51

HOSE ASSEMBLY

42H-2318J-00-00

1
Out of stock

52

AIR VALVE COMP.

23X-23190-L0-00

—
Out of stock

53

O-RING

3J2-23147-00-00

—
Out of stock

54

O-RING

42H-23188-00-00

—

$6.58

In stock

55

BOLT,SOCKET

91314-08030-00

—

$2.29

In stock
