1984 Yamaha Virago 1000 CA (XV1000LC) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1984 Yamaha Virago 1000 CA (XV1000LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

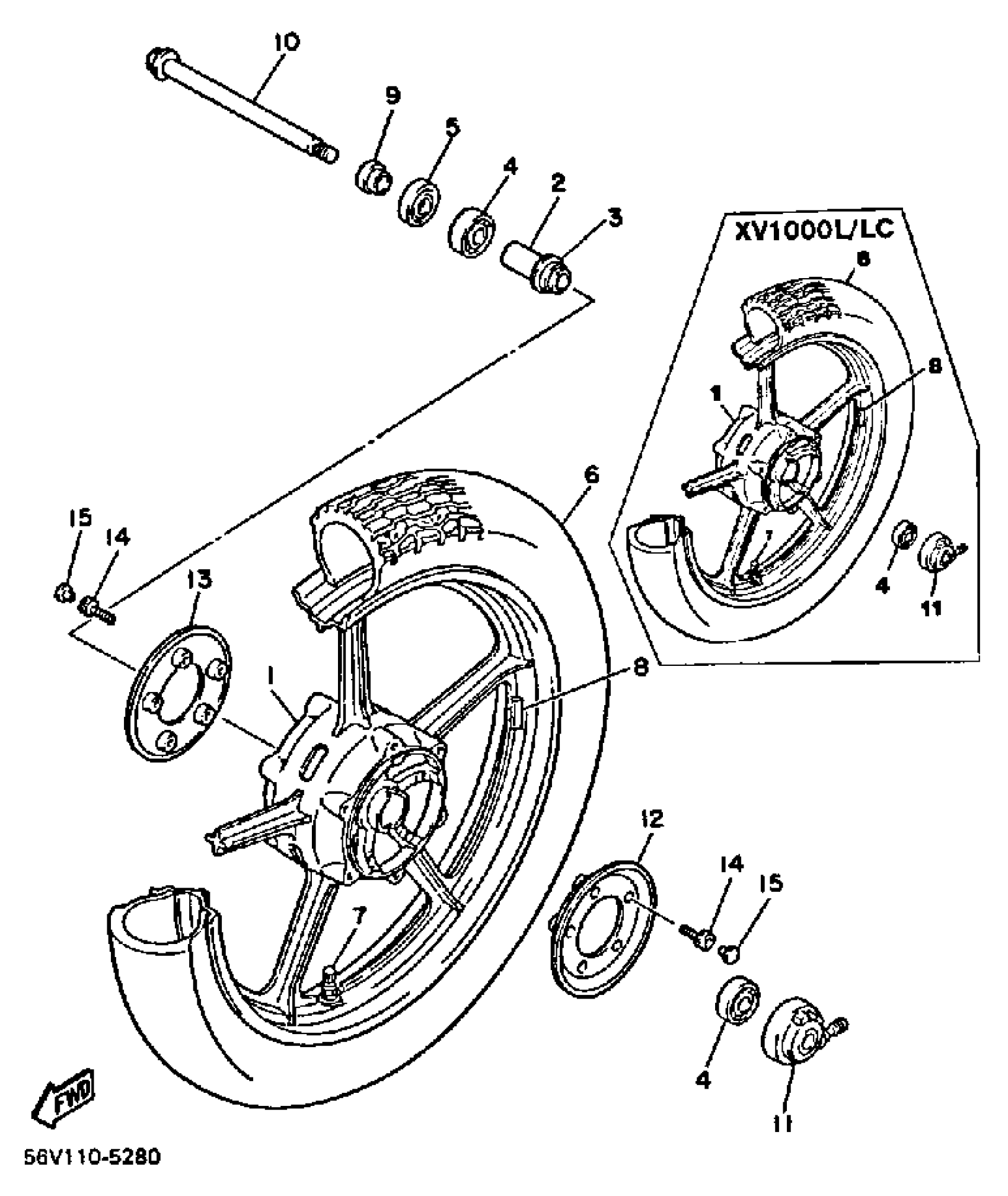

1984 Yamaha Virago 1000 CA (XV1000LC) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAST WHEEL,FRONT

56W-25168-00-8L

1
Out of stock

1

CAST WHEEL,FRONT

56W-25168-00-8L

1
Out of stock

2

SPACER

90560-15116-00

1
Out of stock

3

FLANGE, SPACER

146-25115-00-00

1

$6.17

In stock

4

BEARING

93306-30212-00

1

$33.35

In stock

5

OIL SEAL (22X42X7)

93102-22014-00

1

$10.68

In stock

6

110/90-19L303RWLTL (100/90-19-57H)

94110-196M3-00

1
Out of stock

7

VALVE, RIM (31A)

93900-00031-00

1
Out of stock

8

BALANCER, WHEEL

5MT-25398-00-00

1

$15.54

In stock

8

BALANCER, WHEEL

5MT-25398-10-00

1

$15.37

In stock

8

BALANCER, WHEEL

5MT-25398-20-00

—

$38.22

In stock

9

COLLAR (1L9)

90387-15550-00

1
Out of stock

10

AXLE, WHEEL

42X-25181-00-00

1
Out of stock

11

GEAR UNIT ASSY

42X-25190-00-00

1
Out of stock

12

CAP, WHEEL (LEFT)

56W-2512A-00-00

1
Out of stock

13

CAP, WHEEL (RIGHT)

56W-2512A-10-00

1
Out of stock

14

BOLT,SOCKET

91317-06016-00

—

$1.16

In stock

15

PLUG(42H)

90338-06162-00

—
Out of stock
