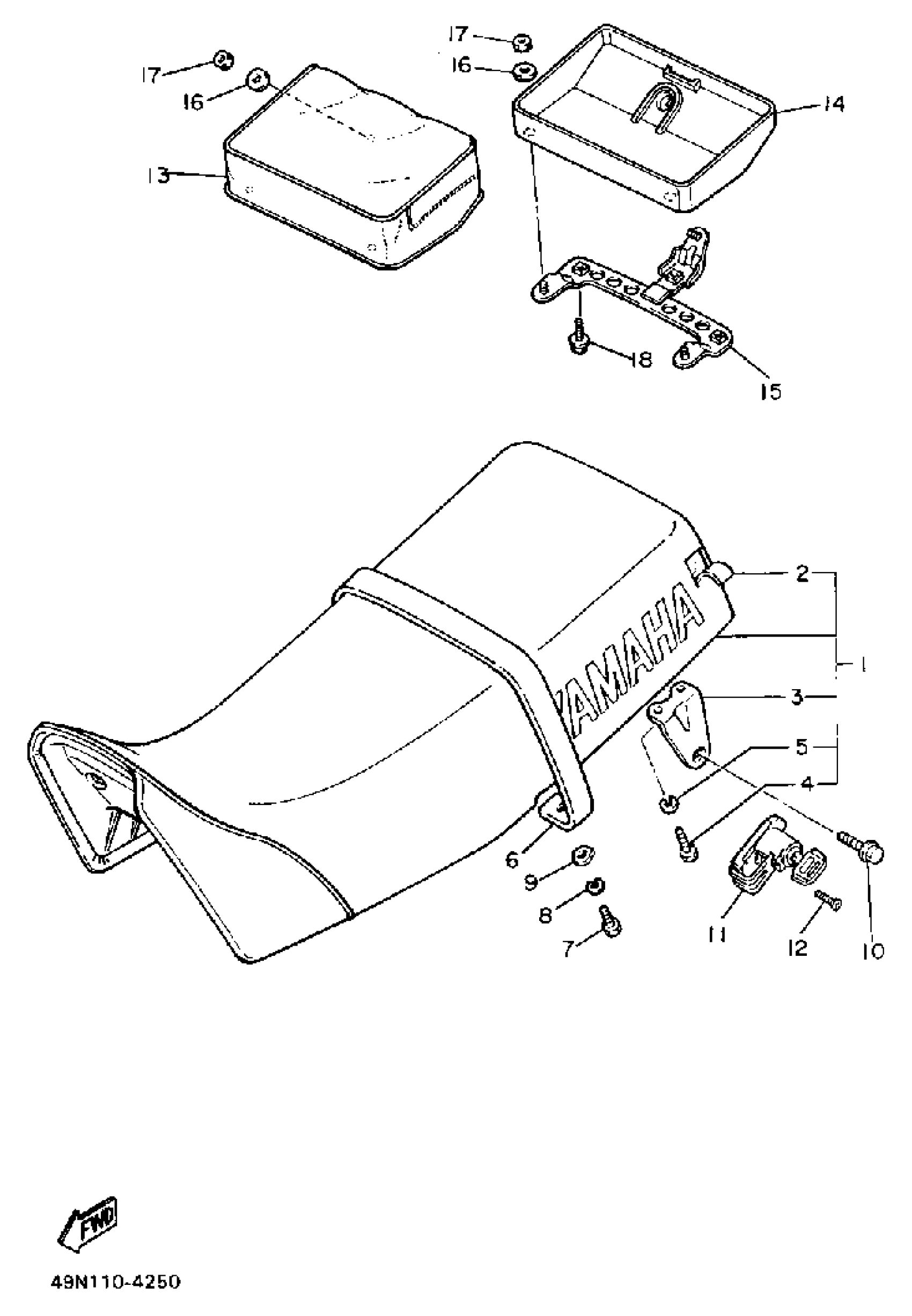

Find the part on the Seat diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha XT600 CA (XT600SC) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL SEAT ASSEMBLY

43F-24770-10-00

1
Out of stock

2

. COVER, DOUBLE SEAT

43F-24731-00-00

1
Out of stock

3

BRACKET, SEAT

43F-24738-00-00

1
Out of stock

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

BAND, SEAT

43F-24734-00-00

1
Out of stock

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

WASHER, WAVE

(90206-06765-00)

1
Out of stock

10

BOLT, FLANGE

95812-06010-00

1

$2.75

In stock

11

HELMET HANGER ASSY

5H0-21308-01-00

1
Out of stock

12

SCREW, FLAT

98707-06014-00

1
Out of stock

13

CARRIER BOX ASSEMBLY

33G-24850-00-00

1
Out of stock

14

BRACKET, CARRIER 2

33G-24833-00-00

1
Out of stock

15

STAY, DOCUMENT BOX

49R-24884-00-00

1
Out of stock

16

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

17

NUT(650)

95380-06700-00

—

$6.17

In stock

18

BOLT, WITH WASHER(55K)

90119-06117-00

—

$3.74

In stock
