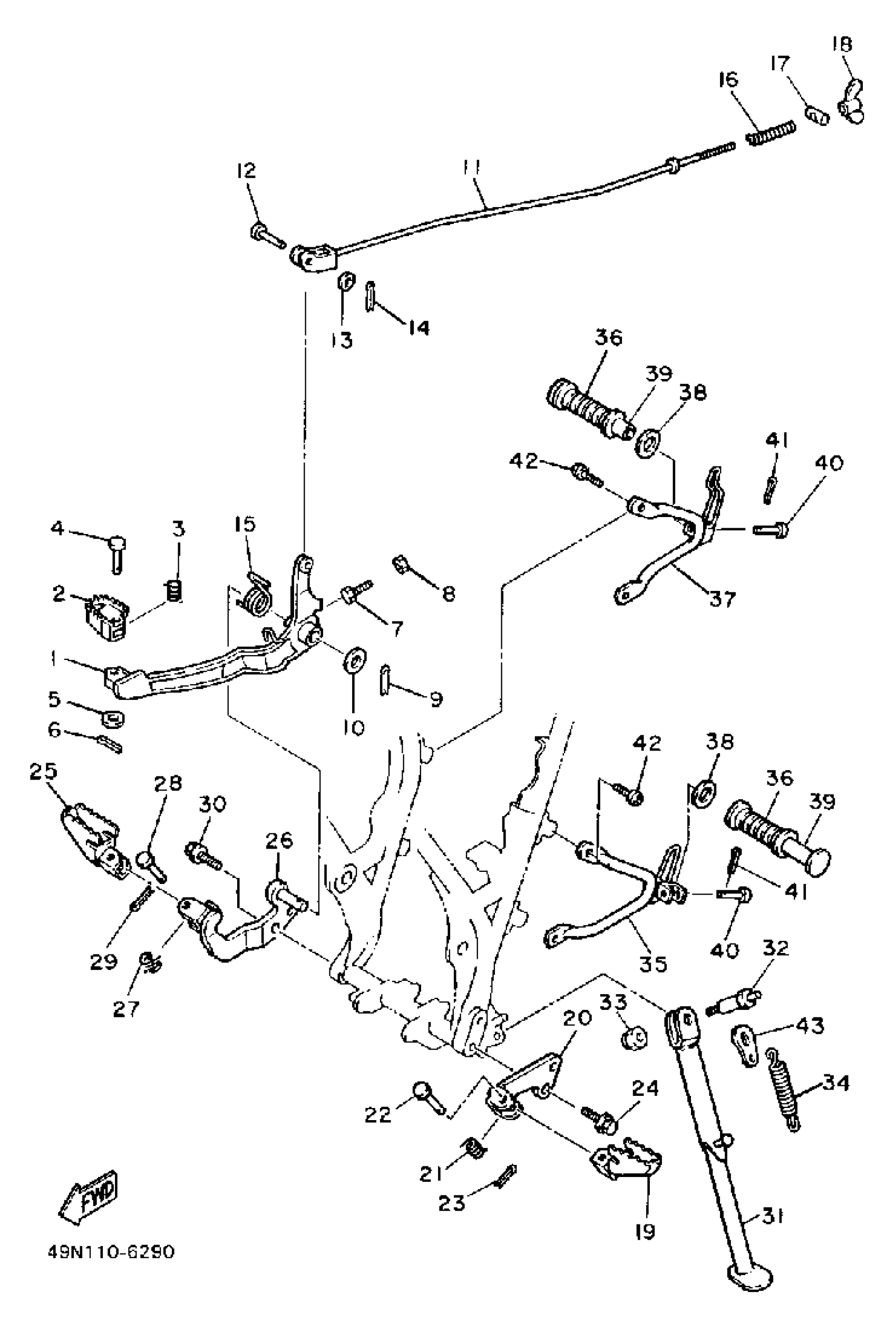

Find the part on the Stand - Footrest diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha XT600 CA (XT600SC) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

1VJ-27200-00-90

1
Out of stock

2

PEDAL, BRAKE

55V-27242-00-00

1

$19.86

In stock

3

SPRING, TORSION (1W2)

90508-14352-00

1

$6.89

In stock

4

PIN, COTTER (1W2)

91701-06022-00

1

$1.83

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

PIN, COTTER

91490-20025-00

1

$1.31

In stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

9

PIN COTTER

91490-30025-00

1
Out of stock

10

WASHER PLATE 148272190000

90201-14215-00

1
Out of stock

11

ROD, BRAKE

43F-27231-00-00

1
Out of stock

12

PIN, CLEVIS (24X)

90240-06103-00

1

$6.45

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

PIN, COTTER

91490-20025-00

1

$1.31

In stock

15

SPRING, TORSION

90508-32690-00

1
Out of stock

16

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

17

PIN 1562723700

90249-12008-00

—

$4.70

In stock

18

NUT (25K)

90179-06411-00

—

$5.10

In stock

19

FOOTREST 1

22W-27411-01-90

—
Out of stock

20

BRACKET, FOOTREST 1

34L-27412-00-R4

1
Out of stock

21

—

$3.26

In stock

22

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

23

PIN, COTTER

91490-25020-00

—

$2.94

In stock

24

PIN, COTTER

91490-25020-00

—

$2.94

In stock

25

FOOTREST 2

22W-27421-01-90

—

$29.63

In stock

26

BRACKET, FOOTREST 2 (34L-27422-01-R4)

34L-27422-01-00

1
Out of stock

27

—

$3.26

In stock

28

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

29

PIN, COTTER

91490-25020-00

—

$2.94

In stock

30

BOLT, FLANGE(3GD)

95817-10025-00

—

$6.17

In stock

31

STAND,SIDE

55W-27311-01-00

1
Out of stock

32

BOLT, WASHER BASED

90105-12616-00

1
Out of stock

33

NUT, SELF LOCKING (23X)

90185-12119-00

—
Out of stock

34

SPRING, MAIN STAND

4KN-27116-00-00

—

$10.32

In stock

35

BRACKET 1

26F-27432-00-FH

1
Out of stock

36

COVER, REAR FOOTREST

120-27433-00-00

—

$7.51

In stock

37

BRACKET 2

50T-27442-00-FH

1
Out of stock

38

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

39

FOOTREST, REAR 1

2GV-27431-00-00

—

$27.39

In stock

40

PIN, CLEVIS (1Y8)

91701-06032-00

—

$6.85

In stock

41

PIN, COTTER

91490-16020-00

1

$6.23

In stock

42

BOLT (34L)

90109-08789-00

—

$6.38

In stock

43

LINK, SIDE STAND

5Y1-27315-00-00

—

$13.28

In stock
