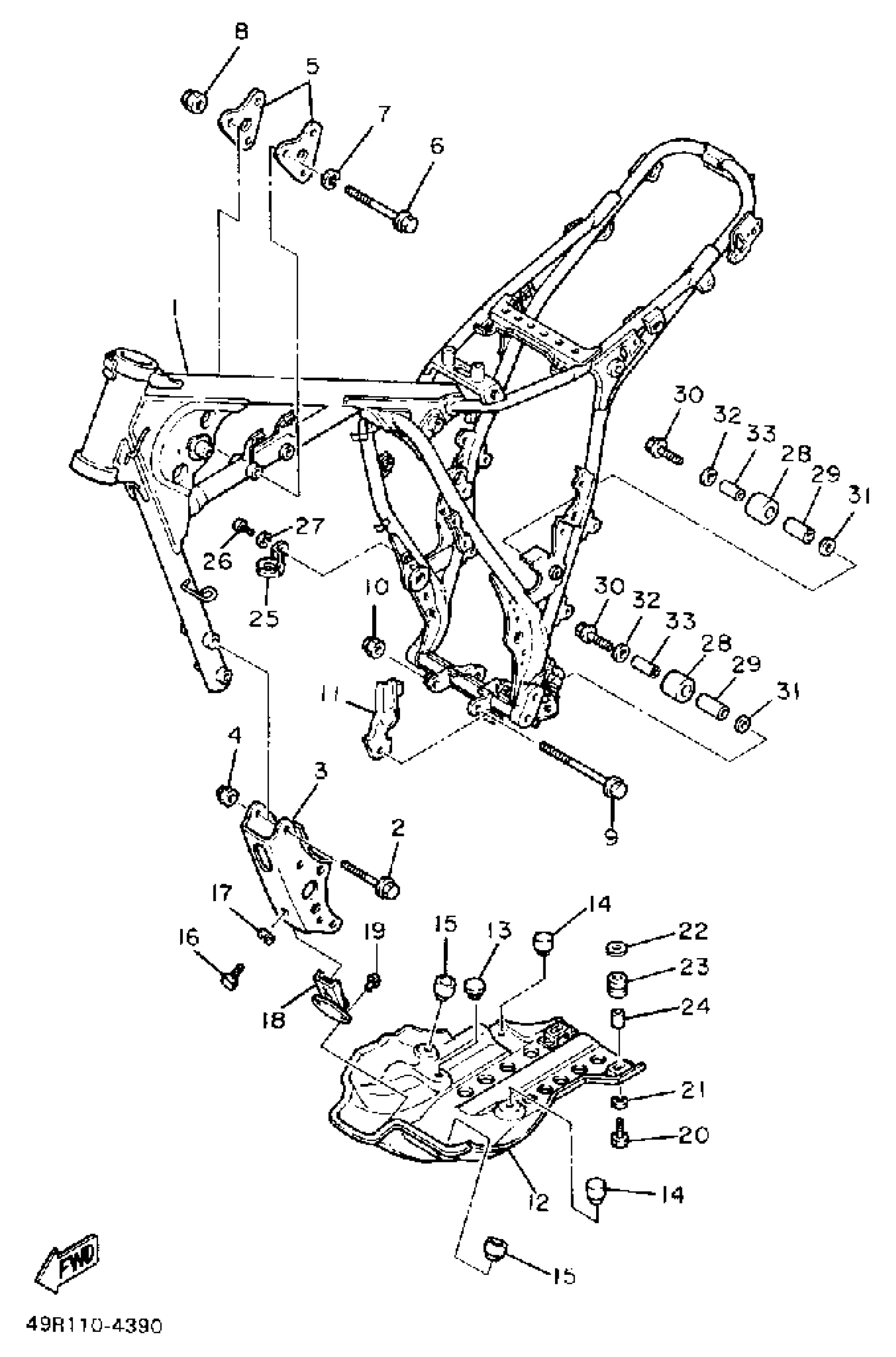

Find the part on the Frame XT600SC diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha XT600 CA (XT600SC) Frame XT600SC Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

1WN-21110-01-FH

1
Out of stock

2

BOLT, WASHER BASED (39E)

90105-10286-00

1

$6.03

In stock

3

STAY, ENGINE 3

(34L-21316-00-FH)

1
Out of stock

4

1

$6.02

In stock

5

STAY, ENGINE 2

34L-21315-00-00

1
Out of stock

6

BOLT, WASHER BASED(65J)

90105-10M75-00

1

$6.14

In stock

7

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

8

1

$6.02

In stock

9

BOLT, FLANGE(4MY)

95817-10100-00

1
Out of stock

10

1

$6.02

In stock

11

PLATE

(34L-2176E-01-00)

1
Out of stock

12

PROTECTOR, ENGINE

34L-21471-00-00

1
Out of stock

13

SEAL, RIGHT SIDE COVER

2J5-21732-00-00

1
Out of stock

14

STOPPER, MAIN STAND

4N0-27114-00-00

1
Out of stock

15

DAMPER, RUBBER 1

34L-21485-00-00

1

$18.72

In stock

16

BOLT, HEXAGON

97017-08016-00

—
Out of stock

17

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

18

DAMPER 2

34L-21486-00-00

1
Out of stock

19

RIVET, BLIND (8K2)

90267-48079-00

—
Out of stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

UNAVAILABLE IN PRICE BOOK

92906-06100-0

1
Out of stock

22

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

23

GROMET (3X3)

90480-14229-00

—

$6.17

In stock

24

COLLAR

90387-06113-00

—

$10.51

In stock

25

UNAVAILABLE IN PRICE BOOK

5Y1-21441-00-0

1
Out of stock

26

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

UNAVAILABLE IN PRICE BOOK

30X-22178-00-0

1
Out of stock

29

UNAVAILABLE IN PRICE BOOK

4V4-22184-00-0

1
Out of stock

30

BOLT (23X)

90109-08705-00

—

$12.78

In stock

31

WASHER, PLATE(3RR)

90201-133P2-00

—

$6.85

In stock

32

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

33

COLLAR (7R4)

90387-085E1-00

—

$5.37

In stock
