1984 Yamaha XT600 CA (XT600LC) Stand - Footrest Diagram

← All diagrams

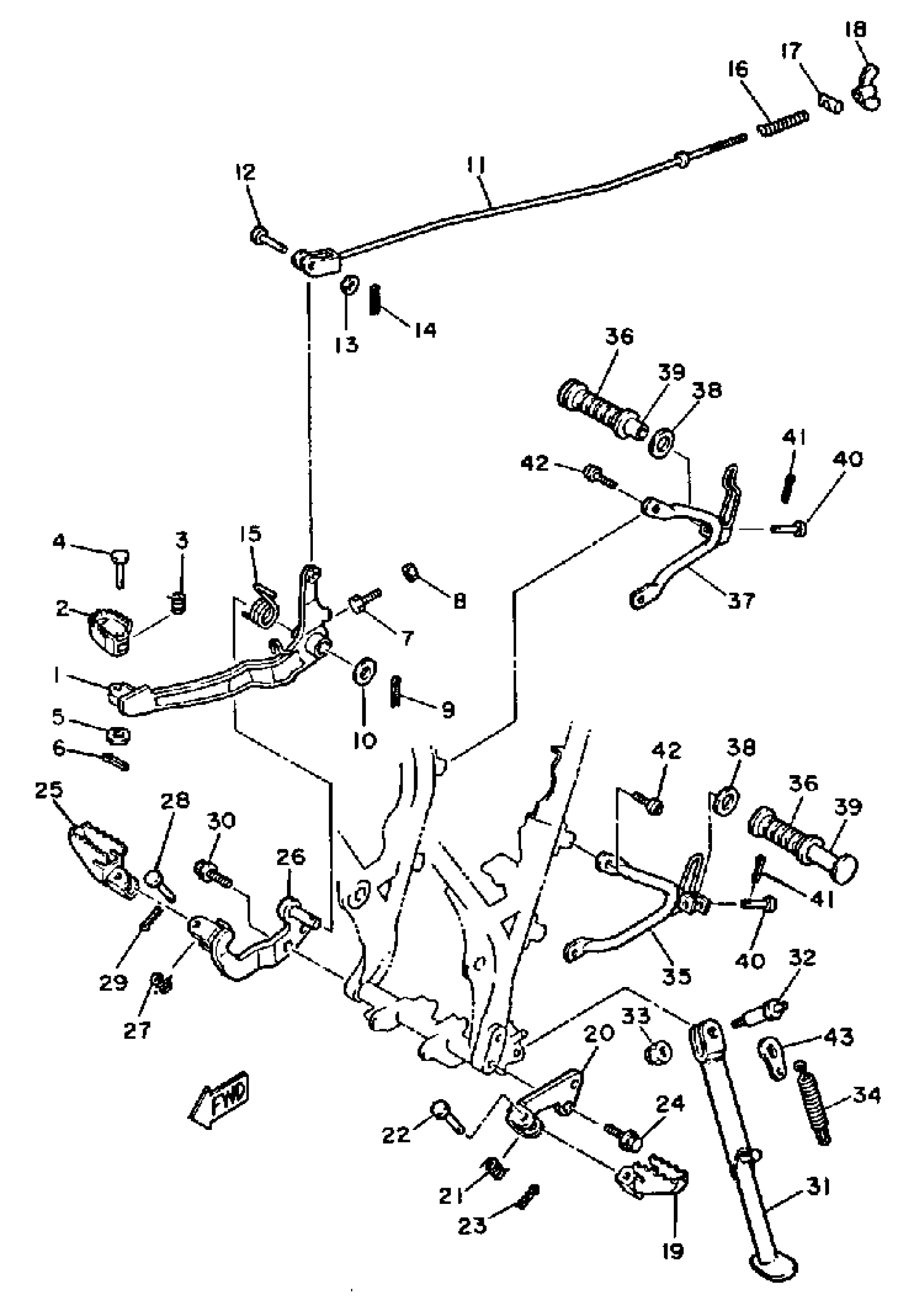

Find the part on the Stand - Footrest diagram for your 1984 Yamaha XT600 CA (XT600LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha XT600 CA (XT600LC) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

1VJ-27200-00-90

1
Out of stock

2

PEDAL, BRAKE

55V-27242-00-00

1
Out of stock

3

SPRING, TORSION (1W2)

90508-14352-00

1
Out of stock

4

PIN, COTTER (1W2)

91701-06022-00

1
Out of stock

5

WASHER, PLATE (4H7)

90201-061A5-00

1
Out of stock

6

PIN, COTTER

91490-20025-00

1
Out of stock

7

BOLT, HEXAGON

97017-06025-00

1
Out of stock

8

NUT, HEXAGON

95380-06600-00

1
Out of stock

9

PIN COTTER

91490-30025-00

1
Out of stock

10

WASHER PLATE 148272190000

90201-14215-00

1
Out of stock

11

ROD, BRAKE

43F-27231-00-00

1
Out of stock

12

PIN, CLEVIS (24X)

90240-06103-00

1
Out of stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1
Out of stock

14

PIN, COTTER

91490-20025-00

1
Out of stock

15

SPRING, TORSION

90508-32690-00

1
Out of stock

16

SPRING, (180-27236-00)

90501-10245-00

—
Out of stock

17

PIN 1562723700

90249-12008-00

—
Out of stock

18

NUT (25K)

90179-06411-00

—
Out of stock

19

FOOTREST 1

22W-27411-01-90

—
Out of stock

20

BRACKET, FOOTREST 1

34L-27412-00-R4

1
Out of stock

21

SPRING, TORSION (214-27426-00)

90508-20023-00

—
Out of stock

22

PIN, CLEVIS (2A6)

91701-08038-00

—
Out of stock

23

PIN, COTTER

91490-25020-00

—
Out of stock

24

BOLT, FLANGE(3GD)

95817-10025-00

—
Out of stock

25

FOOTREST 2

22W-27421-01-90

—
Out of stock

26

BRACKET, FOOTREST 2 (34L-27422-01-R4)

34L-27422-01-00

1
Out of stock

27

SPRING, TORSION (214-27426-00)

90508-20023-00

—
Out of stock

28

PIN, CLEVIS (2A6)

91701-08038-00

—
Out of stock

29

PIN, COTTER

91490-25020-00

—
Out of stock

30

BOLT, FLANGE(3GD)

95817-10025-00

—
Out of stock

31

STAND, SIDE

34L-27311-02-00

1
Out of stock

32

BOLT

90109-10473-00

—
Out of stock

33

NUT, U

90185-10037-00

—
Out of stock

34

SPRING, MAIN STAND

4KN-27116-00-00

—
Out of stock

35

BRACKET 1

26F-27432-00-FH

1
Out of stock

36

COVER, REAR FOOTREST

120-27433-00-00

—
Out of stock

37

BRACKET 2

50T-27442-00-FH

1
Out of stock

38

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

39

FOOTREST, REAR 1

2GV-27431-00-00

—
Out of stock

40

PIN, CLEVIS (1Y8)

91701-06032-00

—
Out of stock

41

PIN, COTTER

91490-16020-00

1
Out of stock

42

BOLT (34L)

90109-08789-00

—
Out of stock

43

LINK, SIDE STAND

5Y1-27315-00-00

—
Out of stock
