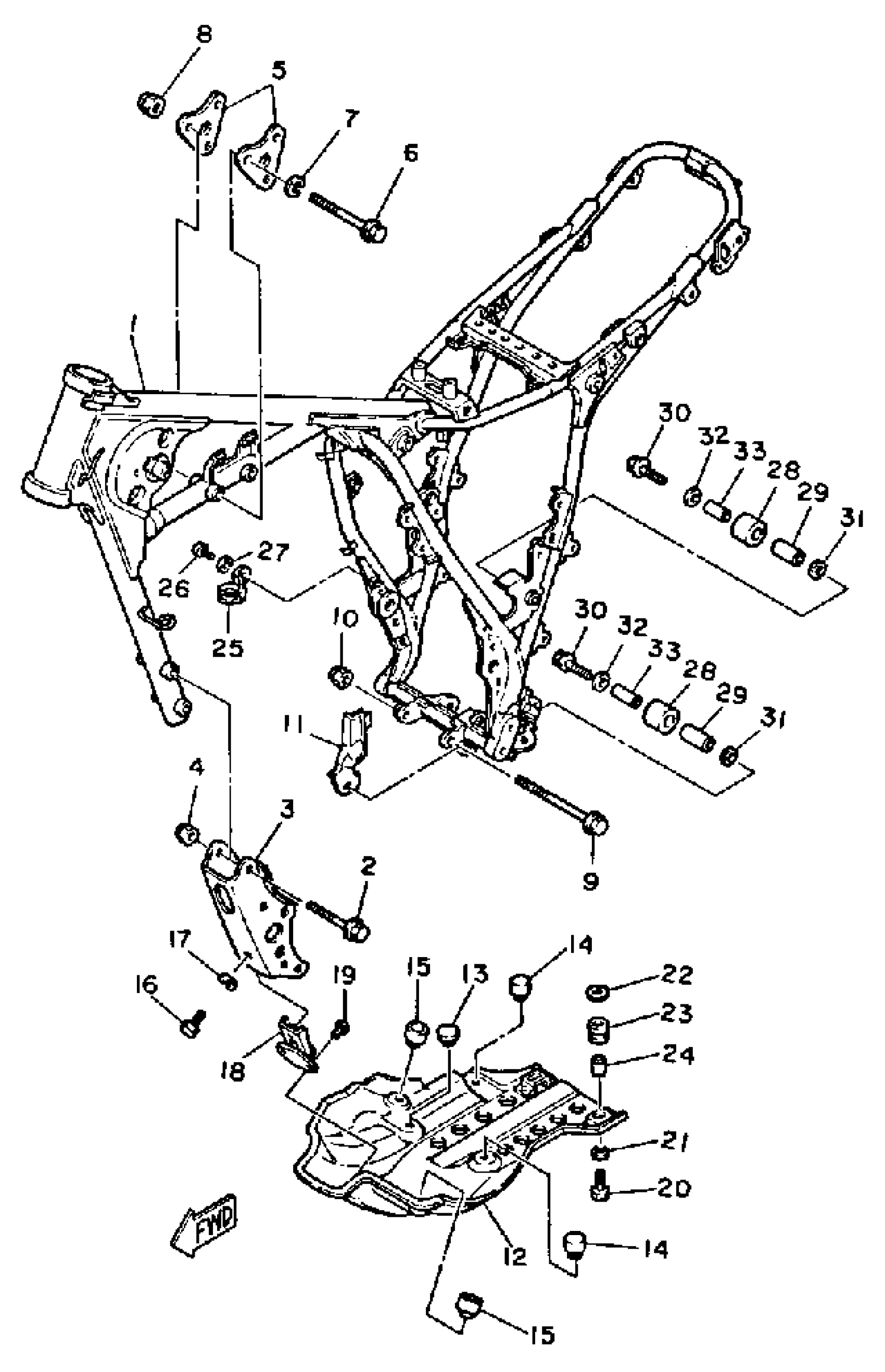

Find the part on the Frame XT600LC - NC diagram for your 1984 Yamaha XT600 CA (XT600LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha XT600 CA (XT600LC) Frame XT600LC - NC Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(49R-21110-00-FH)

1
Out of stock

2

BOLT, WASHER BASED (39E)

90105-10286-00

1

$6.03

In stock

3

STAY, ENGINE 3

(34L-21316-00-FH)

1
Out of stock

4

1

$6.02

In stock

5

STAY, ENGINE 2

34L-21315-00-00

1
Out of stock

6

BOLT, WASHER BASED(65J)

90105-10M75-00

1

$6.14

In stock

7

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

8

1

$6.02

In stock

9

BOLT, FLANGE(4MY)

95817-10100-00

1
Out of stock

10

1

$6.02

In stock

11

PLATE

(34L-2176E-01-00)

1
Out of stock

12

PROTECTOR, ENGINE

34L-21471-00-00

1
Out of stock

13

SEAL, RIGHT SIDE COVER

2J5-21732-00-00

1
Out of stock

14

STOPPER, MAIN STAND

4N0-27114-00-00

1
Out of stock

15

DAMPER, RUBBER 1

34L-21485-00-00

1

$18.72

In stock

16

BOLT, HEXAGON

97017-08016-00

—
Out of stock

17

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

18

DAMPER 2

34L-21486-00-00

1
Out of stock

19

RIVET, BLIND (8K2)

90267-48079-00

—
Out of stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

WASHER, SPRING

92907-06100-00

—
Out of stock

22

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

23

GROMET (3X3)

90480-14229-00

—

$6.17

In stock

24

COLLAR

90387-06113-00

—

$10.51

In stock

25

BRACKET, STOP SWITCH

5Y1-21441-00-00

1
Out of stock

26

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

TENSIONER

30X-22178-00-00

—
Out of stock

29

BUSH

4V4-22184-00-00

—

$3.57

In stock

30

BOLT (23X)

90109-08705-00

—

$12.78

In stock

31

WASHER, PLATE(3RR)

90201-133P2-00

—

$6.85

In stock

32

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

33

COLLAR (7R4)

90387-085E1-00

—

$5.37

In stock
