1984 Yamaha XT600 CA (XT600LC) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1984 Yamaha XT600 CA (XT600LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

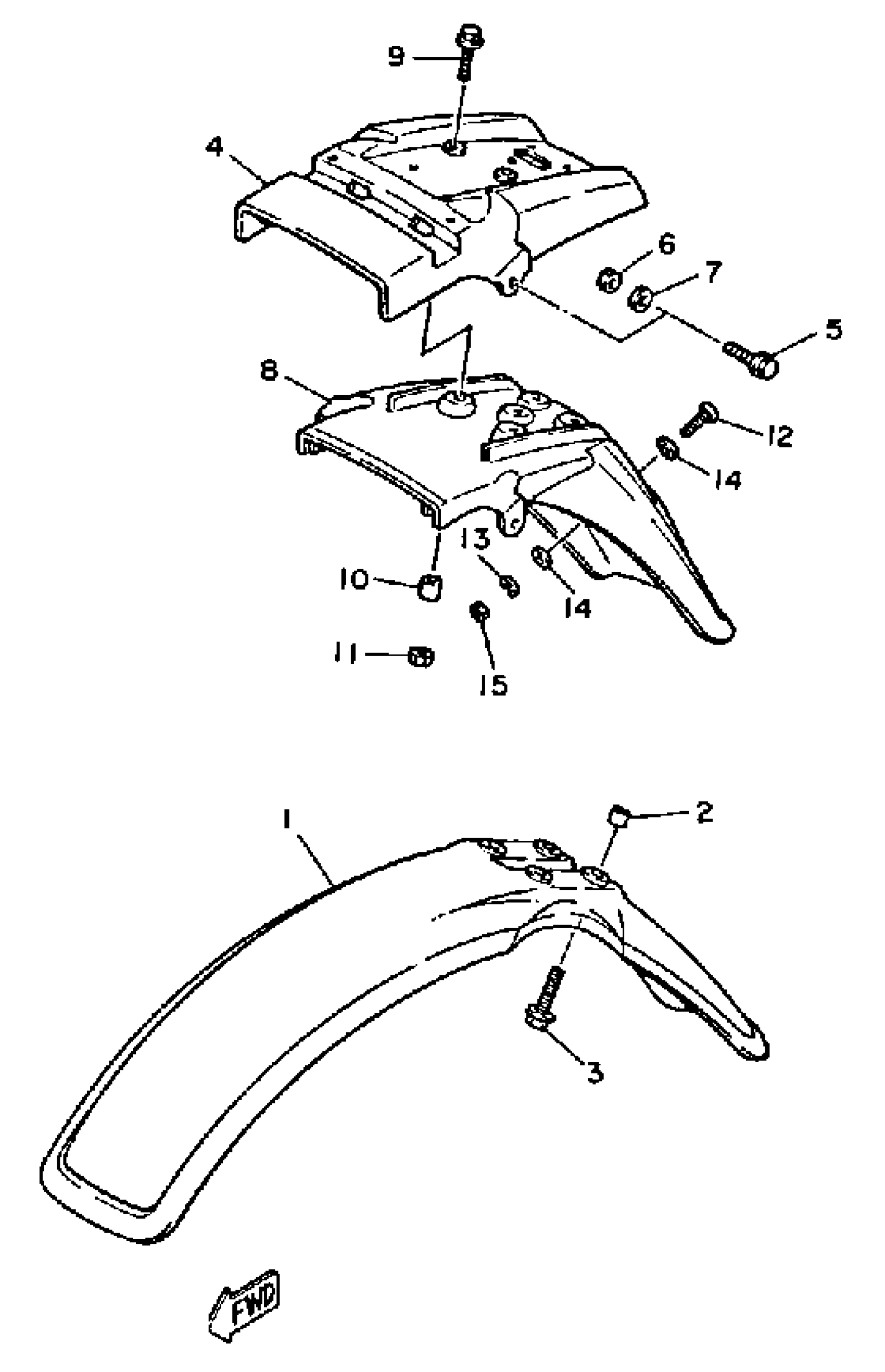

1984 Yamaha XT600 CA (XT600LC) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (WHITE)

30X-21511-00-00

1
Out of stock

2

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

3

BOLT, WITH WASHER (10V)

90119-06063-00

1

$6.29

In stock

4

FENDER, REAR

34L-21611-20-00

1
Out of stock

5

BOLT, FLANGE(6TA)

95817-08030-00

1

$6.17

In stock

6

NUT(6L2)

95333-08600-00

1

$3.20

In stock

7

WASHER, PLATE (397)

90201-08100-00

1

$6.17

In stock

8

BRACKET, LICENSE

34L-21685-00-00

1
Out of stock

9

BOLT, FLANGE

95817-06030-00

1

$3.91

In stock

10

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

11

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

12

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WASHER, PLATE

90201-06M08-00

1
Out of stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
