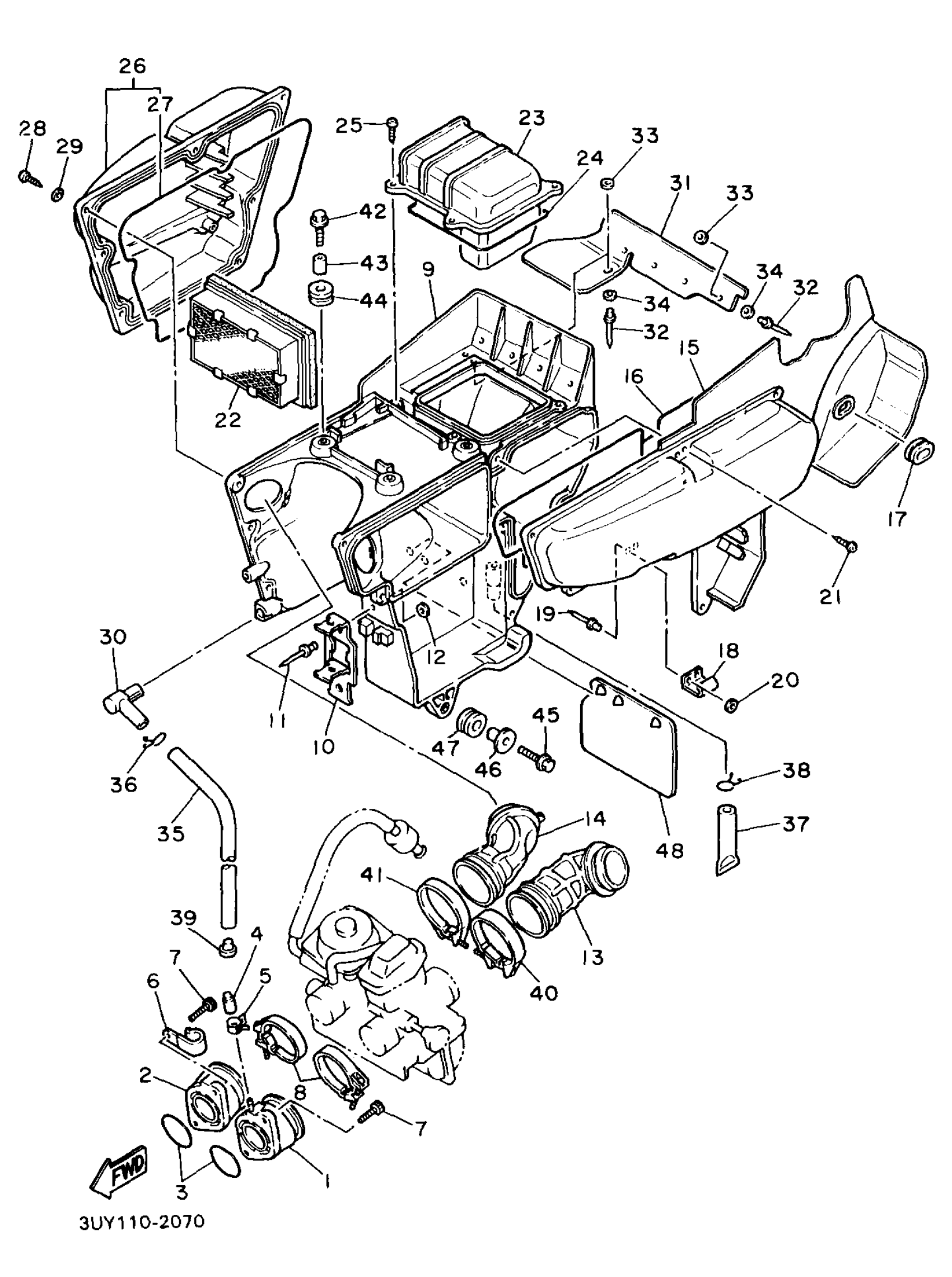

1992 Yamaha XT600E CA (XT600EDC) Intake Diagram
Find the part on the Intake diagram for your 1992 Yamaha XT600E CA (XT600EDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
O-RING(2TY)
93210-36769-00
4
PLUG, BLIND
16G-13569-00-00
5
CLIP (3G0)
90467-10039-00
9
CASE, AIR CLEANER 1
3TB-14411-01-00
10
STAY, RELAY
3TB-81953-00-00
11
RIVET,BLIND
90267-40080-00
14
JOINT
3TB-14454-00-00
15
COVER, CLEANER CASE 1
3TB-1441A-00-00
18
HOOK
43G-14436-00-00
19
RIVET,BLIND
90267-40080-00
23
CAP, CLEANER CASE 1
3TB-14412-00-00
26
COVER, CLEANER CASE 2
3TB-1441E-00-00
29
WASHER(1RW)
92907-05600-00
31
FLAP
3TB-21621-00-00
32
RIVET, BLIND (J10)
90267-40077-00
33
WASHER, PLATE (8M6)
90201-047A2-00
35
HOSE
90445-121E3-00
38
CLIP(1JH)
90467-11106-00
46
COLLAR
90387-074X3-00
48
FLAP
34X-21691-00-00
