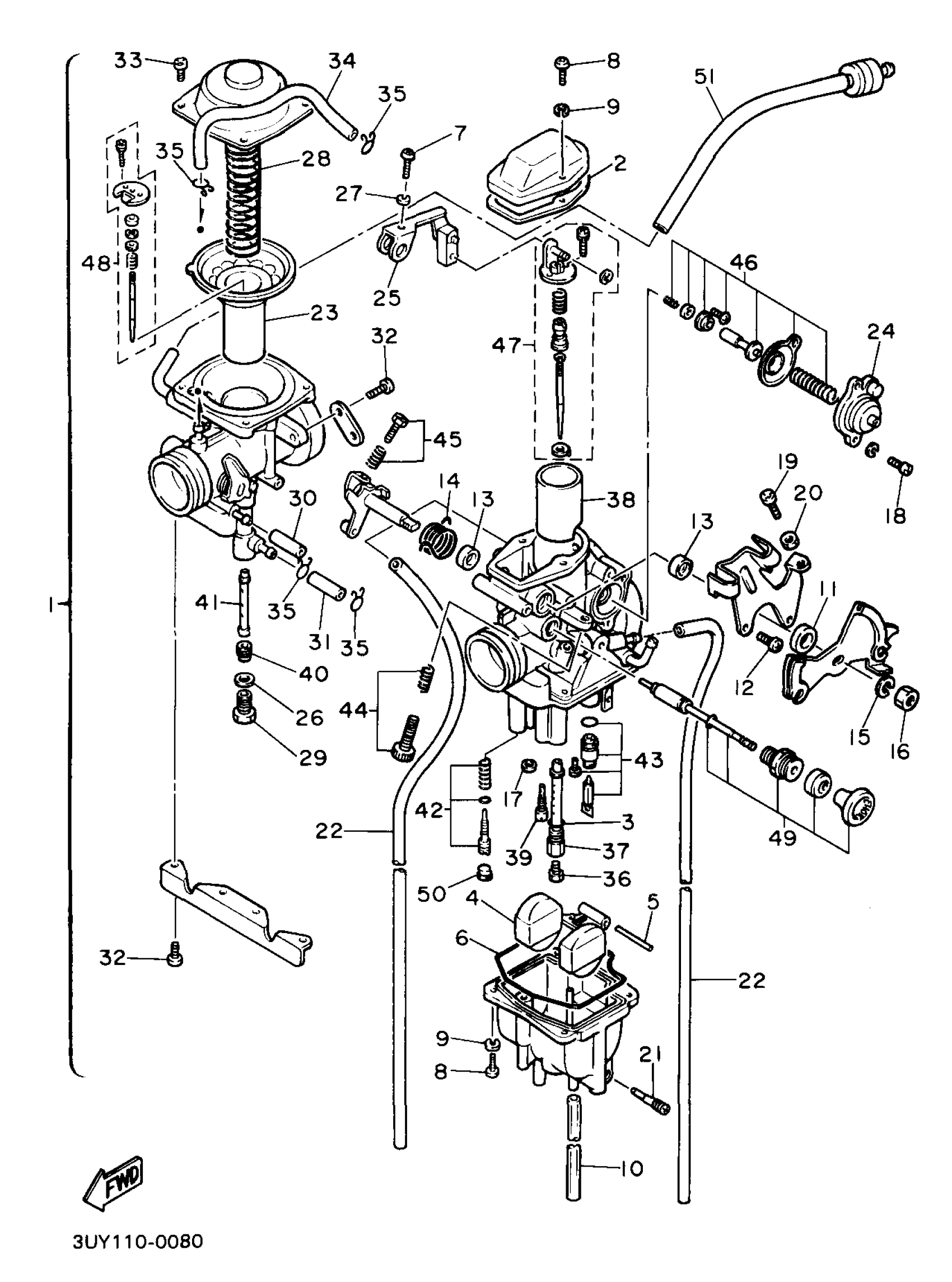

Find the part on the Carburetor diagram for your 1992 Yamaha XT600E CA (XT600EDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha XT600E CA (XT600EDC) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

3UY-14301-05-00

1
Out of stock

1

CARBURETOR ASSY 1

3UY-14301-05-00

1
Out of stock

2

GASKET

5Y1-14198-00-00

1

$6.62

In stock

3

GASKET

360-24512-00-00

1

$8.52

In stock

4

FLOAT

25N-14385-00-00

—

$42.02

In stock

5

. PIN, FLOAT

6E5-14386-01-00

1

$5.34

In stock

6

GASKET, FLOAT CHAMBER

5Y1-14384-00-00

1

$21.11

In stock

7

SCREW, PANHEAD (796)

98580-04016-00

1
Out of stock

8

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

PIPE

1JK-14197-00-00

1
Out of stock

11

. COLLAR

1JK-14357-00-00

1
Out of stock

12

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

13

O-RING

5Y1-14572-00-00

1

$22.03

In stock

14

. SPRING, THROTTLE VALVE

1XL-14131-00-00

1
Out of stock

15

. WASHER, SPRING

5Y1-14356-00-00

1
Out of stock

16

. NUT

5Y1-14358-00-00

1
Out of stock

17

GASKET

5Y1-14536-00-00

—

$5.05

In stock

18

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

19

. SCREW, PAN HEAD

98580-04020-00

1

$5.34

In stock

20

NUT

30X-14358-00-00

—

$3.03

In stock

21

AIR SCREW SET

14T-14104-00-00

—

$10.21

In stock

22

. PIPE

1VJ-14197-00-00

1
Out of stock

23

DIAPHRAGM ASSY

1JK-14940-01-00

—
Out of stock

24

. COVER 1

2JN-14293-00-00

1
Out of stock

25

. CONNECTER COMP

1JK-14291-00-00

1
Out of stock

26

. WASHER

7KF-14227-00-00

1
Out of stock

27

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

28

. SPRING

1VJ-14286-00-00

1
Out of stock

29

. BOLT, HOLDING

7KF-14162-00-00

1
Out of stock

30

PIPE

5Y1-14349-00-00

—
Out of stock

31

PIPE

30X-14148-00-00

—
Out of stock

32

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

33

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

34

PIPE

5Y1-14149-00-00

—
Out of stock

35

CLIP

5Y1-14159-00-00

—

$9.05

In stock

36

JET, MAIN (# 120)

288-14343-60-00

—

$10.11

In stock

36

JET, MAIN (# 130)

288-14343-65-00

—

$9.78

In stock

36

JET, MAIN (# 140)

288-14343-70-00

—

$9.83

In stock

37

. NOZZLE, MAIN

3UY-14341-00-00

1
Out of stock

38

. VALVE, THROTTLE 2

3UY-14313-55-00

1
Out of stock

39

JET, PILOT (#48)

43F-14342-24-00

—

$27.77

In stock

40

. JET, MAIN (#104)

30X-14343-52-00

1
Out of stock

41

. NOZZLE, MAIN 2

2KF-14355-00-00

1
Out of stock

42

PILOT SCREW SET

51Y-14105-00-00

—

$10.18

In stock

43

NEEDLE VALVE SET

2JN-14107-00-00

—

$34.05

In stock

44

. STOP SCREW SET

2NX-1490K-00-00

1
Out of stock

45

. THROTTLE SCREW SET

2NX-14103-00-00

1
Out of stock

46

DIAPHRAGM SET, 1

1JK-1490A-00-00

—

$46.09

In stock

47

. NEEDLE SET

3UY-1490J-10-00

1
Out of stock

48

. NEEDLE SET

3UY-1490J-00-00

1
Out of stock

49

PLUNGER, STARTER

2KF-14371-01-00

—
Out of stock

50

. PLUG

2WJ-14367-00-00

1
Out of stock

51

PIPE,AIRVENT

3TD-14197-10-00

1
Out of stock
