1992 Yamaha XT600E CA (XT600EDC) Clutch Diagram

← All diagrams

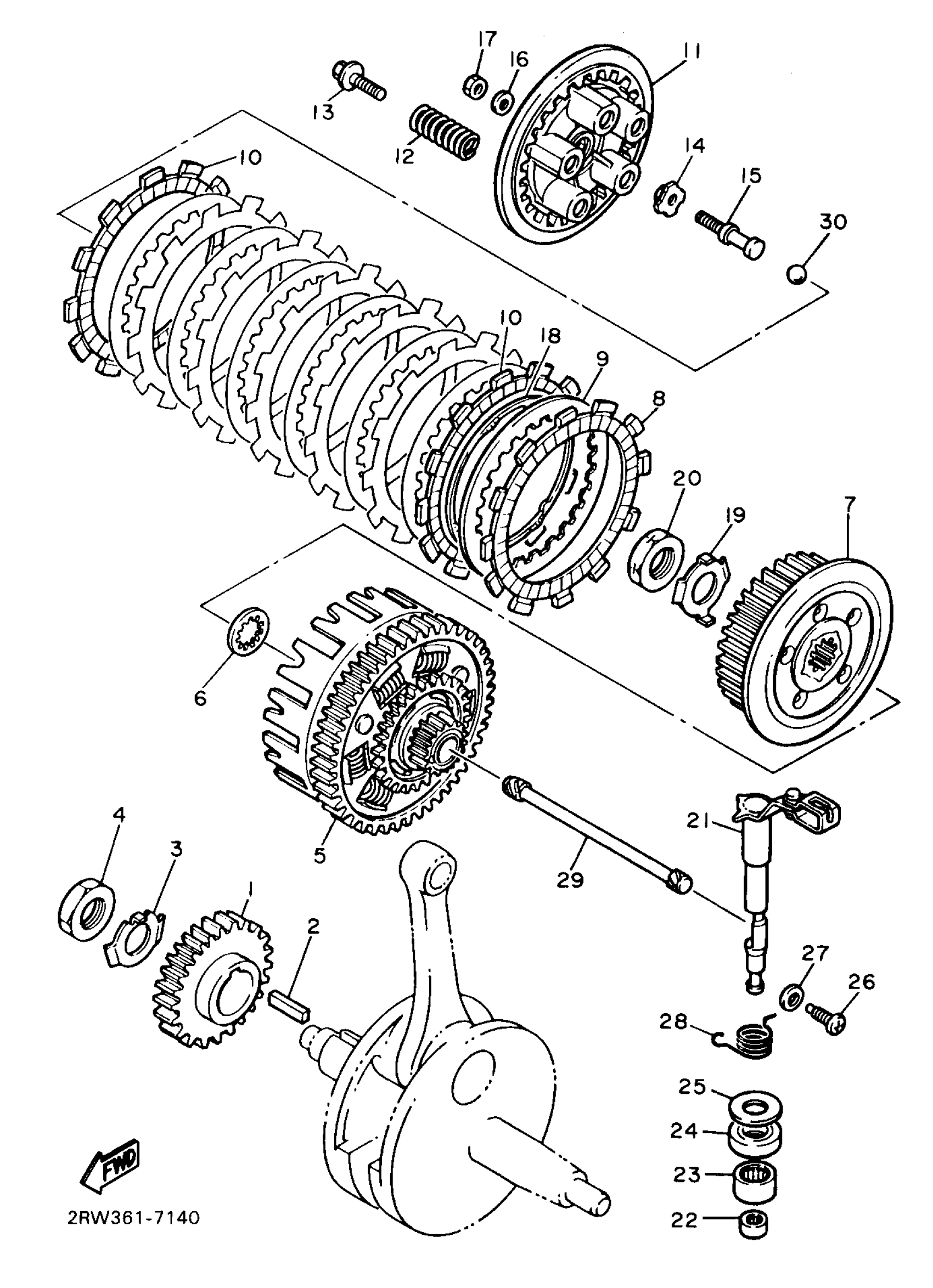

Find the part on the Clutch diagram for your 1992 Yamaha XT600E CA (XT600EDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha XT600E CA (XT600EDC) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE (34T)

3AJ-16111-00-00

1
Out of stock

2

KEY, STRAIGHT (4X7)

90282-07042-00

1
Out of stock

3

WASHER, LOCK (5Y1)

90215-20197-00

1
Out of stock

4

NUT (4X7)

90170-20274-00

1
Out of stock

5

PRIMARY DRIVEN GEAR COMP.

3AJ-16150-00-00

1
Out of stock

6

PLATE, THRUST 1

2JN-16154-00-00

1
Out of stock

7

BOSS, CLUTCH

2JN-16371-00-00

1
Out of stock

8

PLATE, FRICTION 1

5Y1-16321-00-00

1
Out of stock

9

PLATE, CLUTCH 2

360-16325-10-00

1
Out of stock

10

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

11

PLATE, PRESSURE 1

5Y1-16351-00-00

1
Out of stock

12

SPRING,COMPRESSION 2561633310

90501-23142-00

1
Out of stock

13

SCREW, WITH WASHER (583)

90159-06010-00

1

$6.54

In stock

14

PLATE, PUSH

1W1-16358-01-00

1

$20.06

In stock

15

ROD, PUSH 1

5Y1-16356-00-00

1
Out of stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

SPRING, CLUTCH BOSS

5Y1-16383-00-00

—

$27.42

In stock

19

WASHER, LOCK (34L)

90215-20231-00

—
Out of stock

20

NUT (34L)

90170-20327-00

—

$16.98

In stock

21

PUSH LEVER ASSEMBLY

1VJ-16380-01-00

1
Out of stock

22

BEARING

93317-11096-00

—
Out of stock

23

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

—
Out of stock

24

OIL SEAL (48U)

93102-17357-00

—
Out of stock

25

WASHER PLATE 168217580000

90201-18262-00

—
Out of stock

26

SCREW 425163430000

90149-08067-00

—

$4.54

In stock

27

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

28

SPRING, TORSION(1VJ)

90508-14710-00

—
Out of stock

29

ROD, PUSH 2

5Y1-16357-00-00

1
Out of stock

30

BALL (1M1)

93515-32029-00

—
Out of stock
