1992 Yamaha XT600E CA (XT600EDC) Cylinder Diagram

← All diagrams

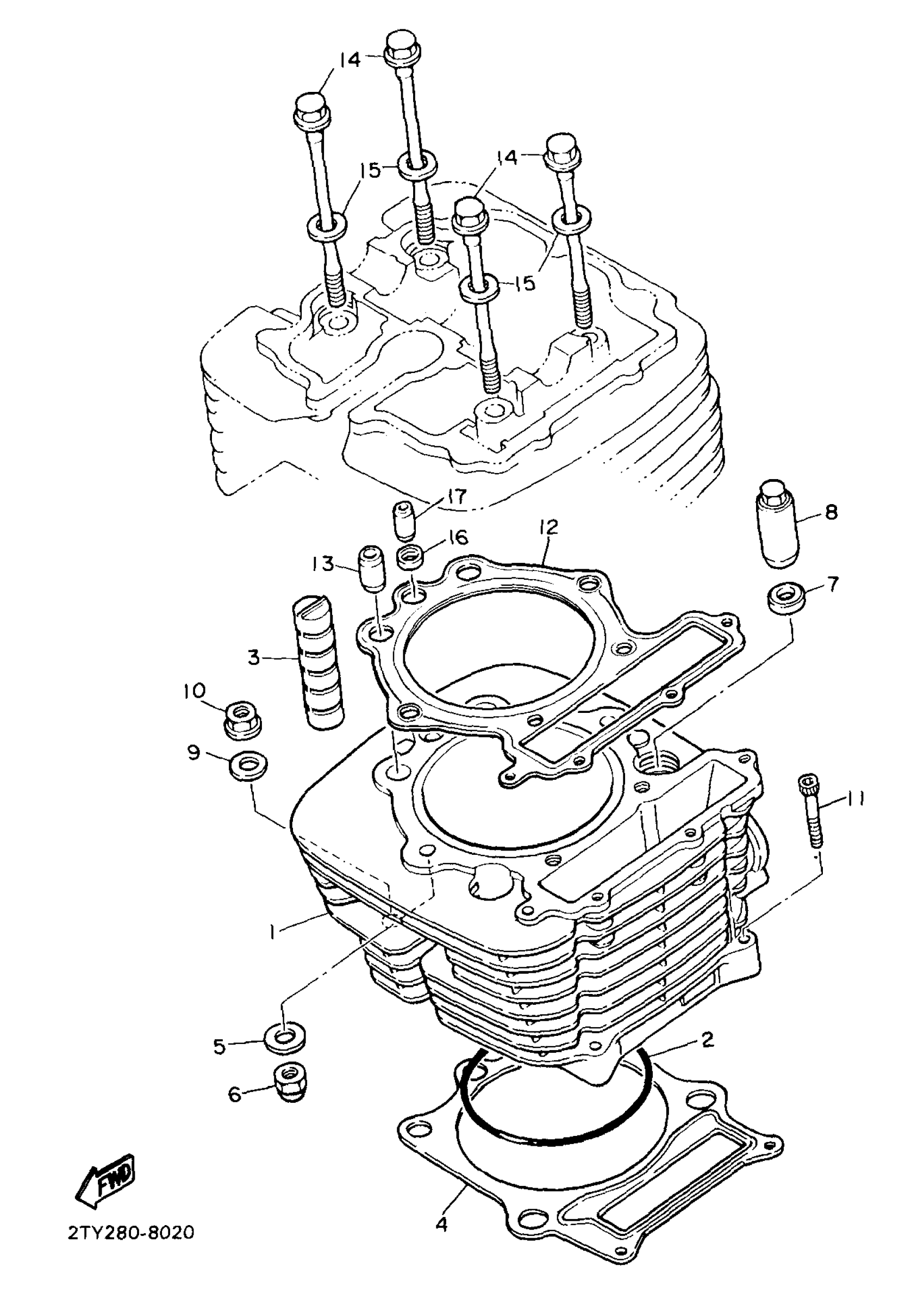

Find the part on the Cylinder diagram for your 1992 Yamaha XT600E CA (XT600EDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha XT600E CA (XT600EDC) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

3TB-11310-00-00

1
Out of stock

2

O-RING (5Y1)

93210-97524-00

1

$14.69

In stock

3

ABSORBER

583-11127-00-00

1

$6.72

In stock

4

GASKET, CYLINDER

1VJ-11351-00-00

—

$24.63

In stock

5

WASHER, PLATE

90201-080L8-00

1

$2.80

In stock

6

NUT, CROWN (4G0)

90176-08026-00

1

$11.63

In stock

7

WASHER, PLATE (583)

90201-10590-00

1

$4.95

In stock

8

NUT

90179-10021-00

1

$21.54

In stock

9

WASHER, PLATE 3711117500

90201-10124-00

1

$6.58

In stock

10

NUT (2Y5)

90179-10279-00

1

$6.09

In stock

11

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

12

GASKET, CYLINDER HEAD 1

2KF-11181-01-00

—

$111.37

In stock

13

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

14

BOLT, WASHER BASED(1VJ)

90105-08505-00

1

$12.51

In stock

15

WASHER, PLATE(2KF)

90201-085L3-00

1

$7.11

In stock

16

GASKET (5Y1)

90430-08178-00

—

$4.83

In stock

17

PIN, DOWEL(3XW)

91808-16023-00

—

$5.48

In stock
