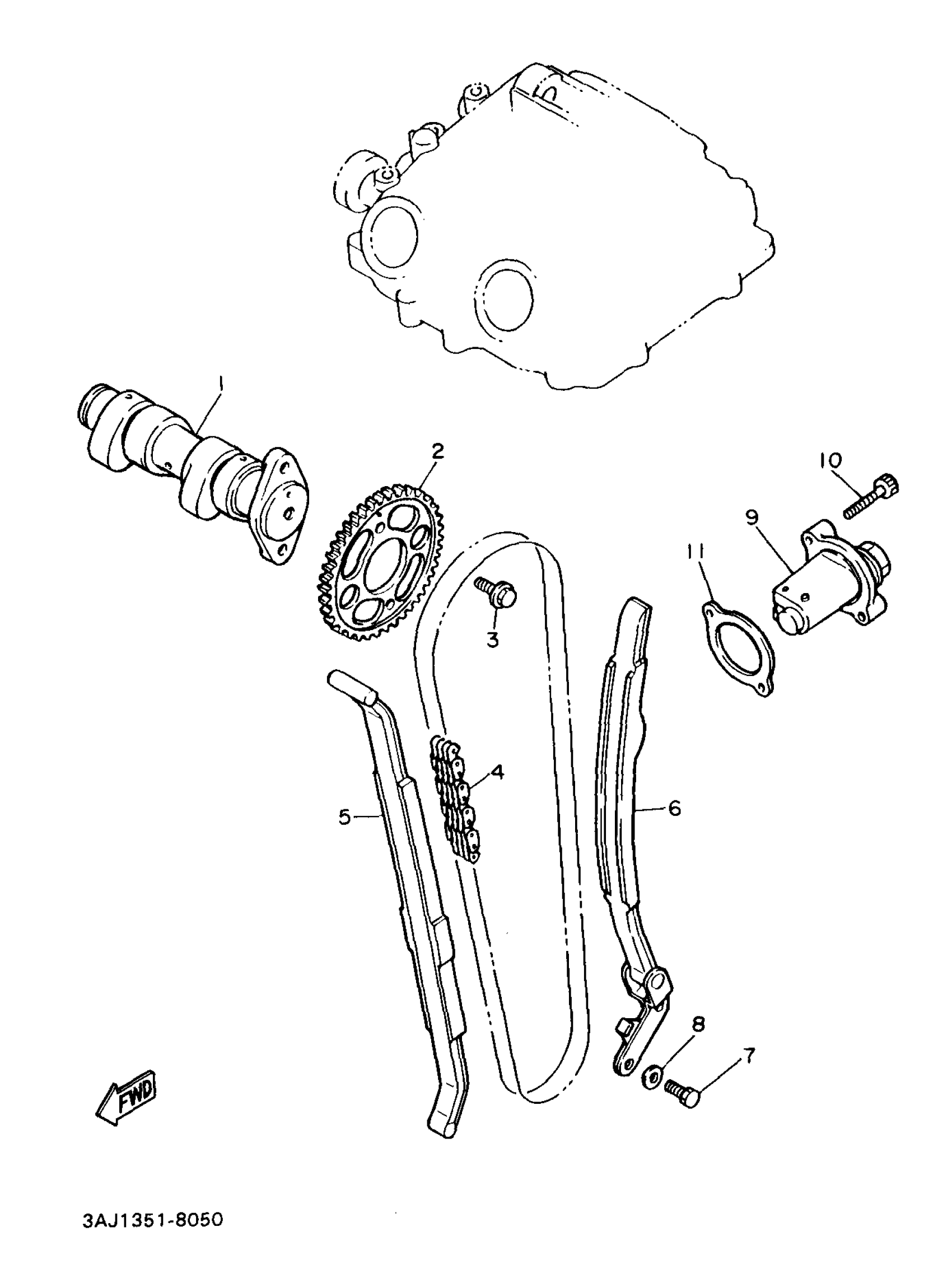

Yamaha XT600EDC (XT600E CA) 1992 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

1JK-12171-00-00

Unavailable

2

SPROCKET, CAM CHAIN

3TB-12176-00-00

Unavailable

3

BOLT, FLANGE

90105-07004-00

$4.76

4

CHAIN

94591-40126-00

$54.99

5

GUIDE, STOPPER 1

34K-12231-01-00

Unavailable

6

GUIDE, STOPPER 2

34K-12241-01-00

$102.27

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.81

8

WASHER, PLAIN (646)

92990-06600-00

$2.43

9

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

$116.51

10

BOLT,SOCKET

91317-06025-00

$1.95

11

GASKET, TENSIONER CASE

4DW-12213-00-00

$7.29
