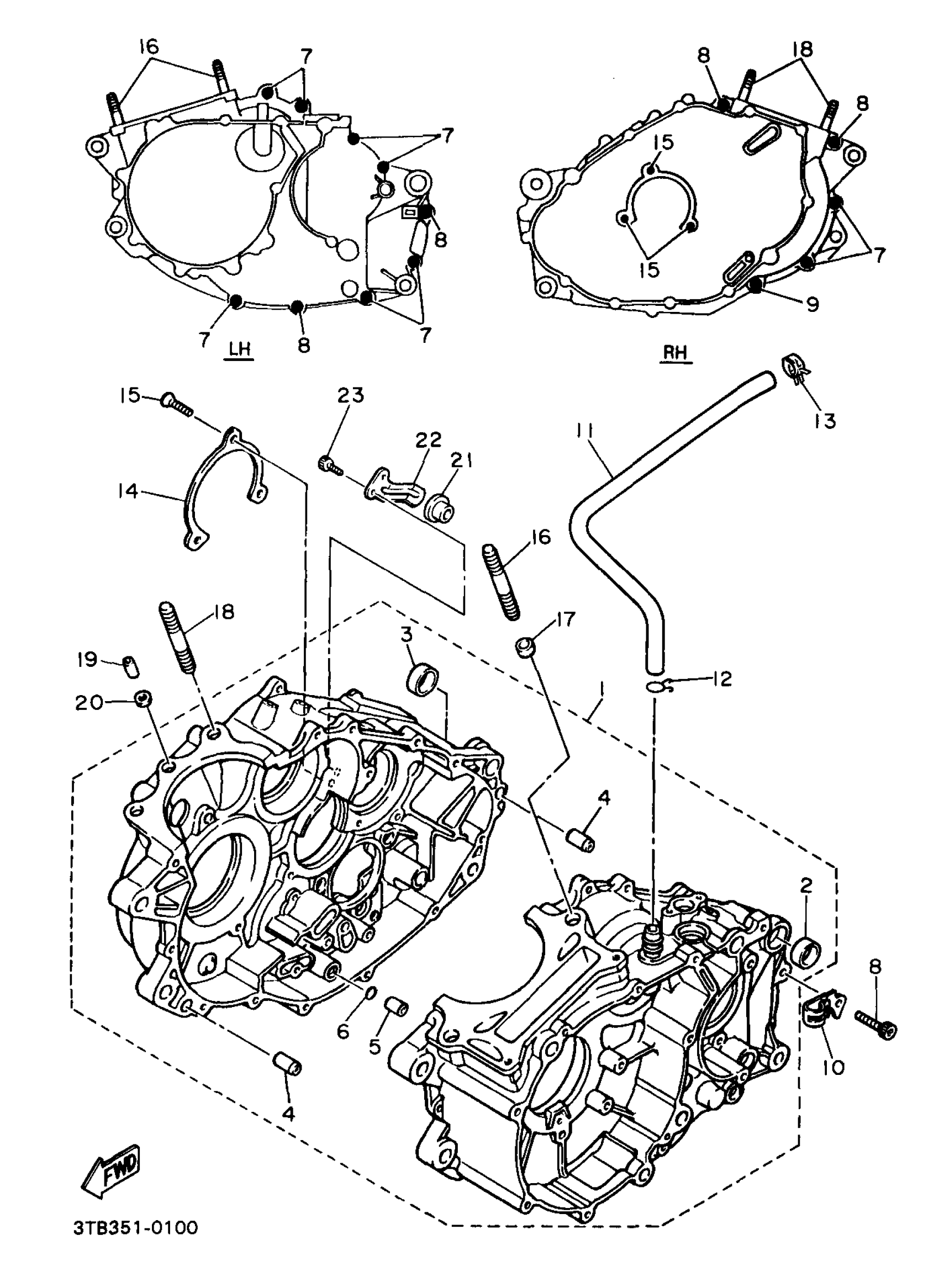

Yamaha XT600EDC (XT600E CA) 1992 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

3DS-15100-00-00

Unavailable

2

COLLAR

90387-17009-00

$13.78

3

COLLAR (3Y1)

90387-16782-00

$4.58

4

PIN, DOWEL

99530-12016-00

$3.93

5

PIN, DOWEL(3XW)

91808-16023-00

$5.37

6

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$5.27

7

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.76

8

BOLT,SOCKET

91317-06045-00

$3.20

9

BOLT,SOCKET

91317-06060-00

$3.11

10

CLAMP

90465-08344-00

Unavailable

11

PIPE, BREATHER 1

3TB-11166-00-00

Unavailable

12

CLIP (371)

90467-14015-00

$7.18

13

CLIP(3TB)

90467-17128-00

$6.35

14

PLATE, BEARING COVER

5Y1-15383-00-00

Unavailable

15

SCREW, FLAT

98707-06012-00

$5.88

16

BOLT, STUD(1JK)

90116-10506-00

Unavailable

17

. PIN, DOWEL

99510-14016-00

Unavailable

18

BOLT, STUD (1W4)

90116-10263-00

Unavailable

19

PIN, DOWEL(3XW)

91808-16023-00

$5.37

20

GASKET (5Y1)

90430-08178-00

Unavailable

21

PLUG, BLIND

3Y6-15167-00-00

Unavailable

22

PLATE, LOCK

3Y6-15144-00-00

Unavailable

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable
