1990 Yamaha XT600E CA (XT600EAC) Headlight Diagram

← All diagrams

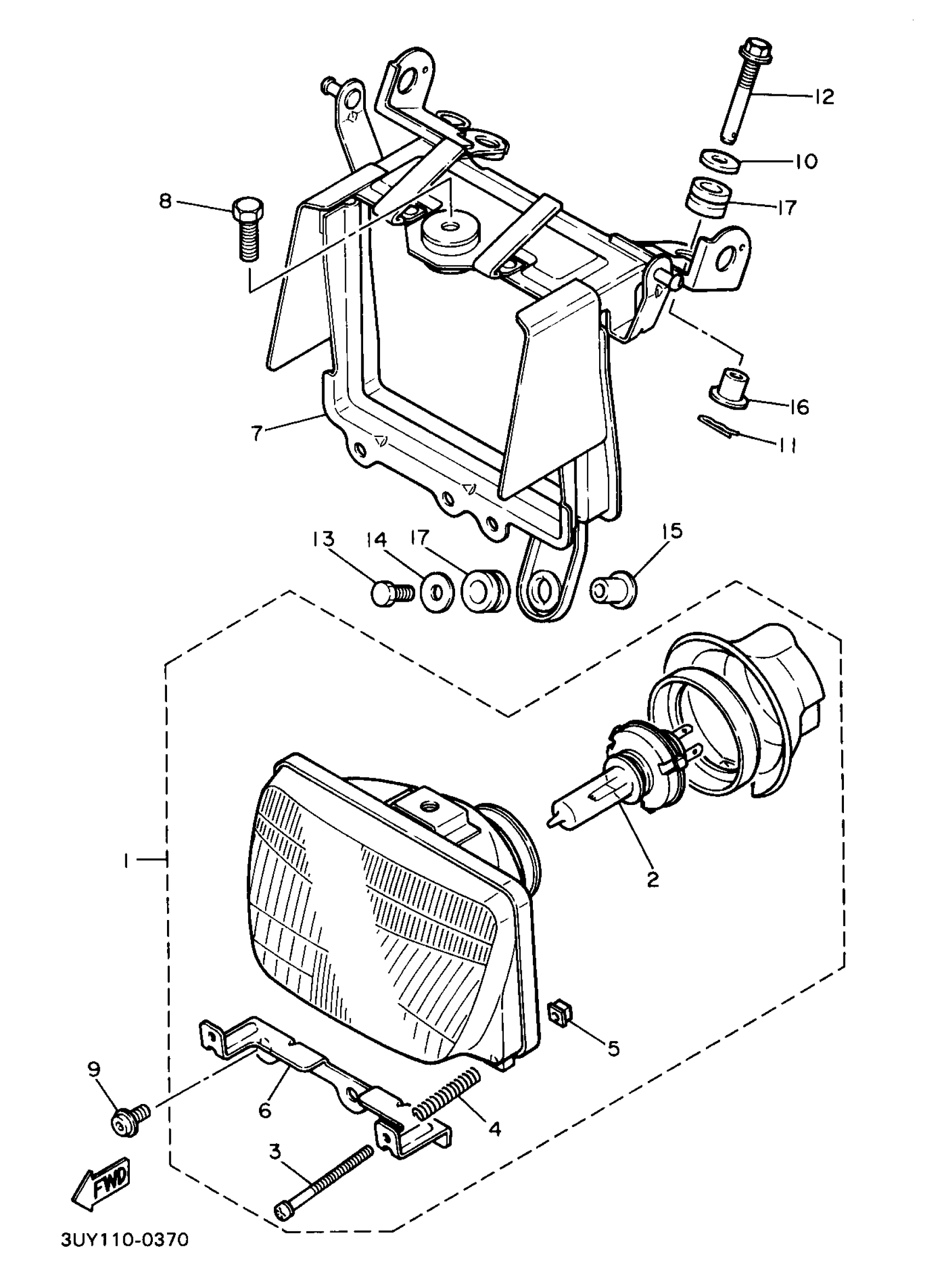

Find the part on the Headlight diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT600E CA (XT600EAC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSY

3UY-84320-00-00

—

$241.82

In stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

SCREW, RIM FITTING

3TB-84325-00-00

1
Out of stock

4

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

5

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

6

STAY, SETTING

3TB-8431R-00-00

—
Out of stock

7

BODY, HEADLIGHT

3TB-84311-00-00

1
Out of stock

8

BOLT, HEXAGON

3TB-84372-01-00

1
Out of stock

9

BOLT, WING 1

3TB-84329-00-00

1
Out of stock

10

WASHER PLATE 102283270000

90202-06013-00

1
Out of stock

11

CLIP (7R4)

90468-12120-00

1
Out of stock

12

BOLT, SPECIAL

3TB-84137-00-00

1
Out of stock

13

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

14

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

15

COLLAR

90387-06158-00

1

$6.17

In stock

16

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

17

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock
