1990 Yamaha XT600E CA (XT600EAC) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

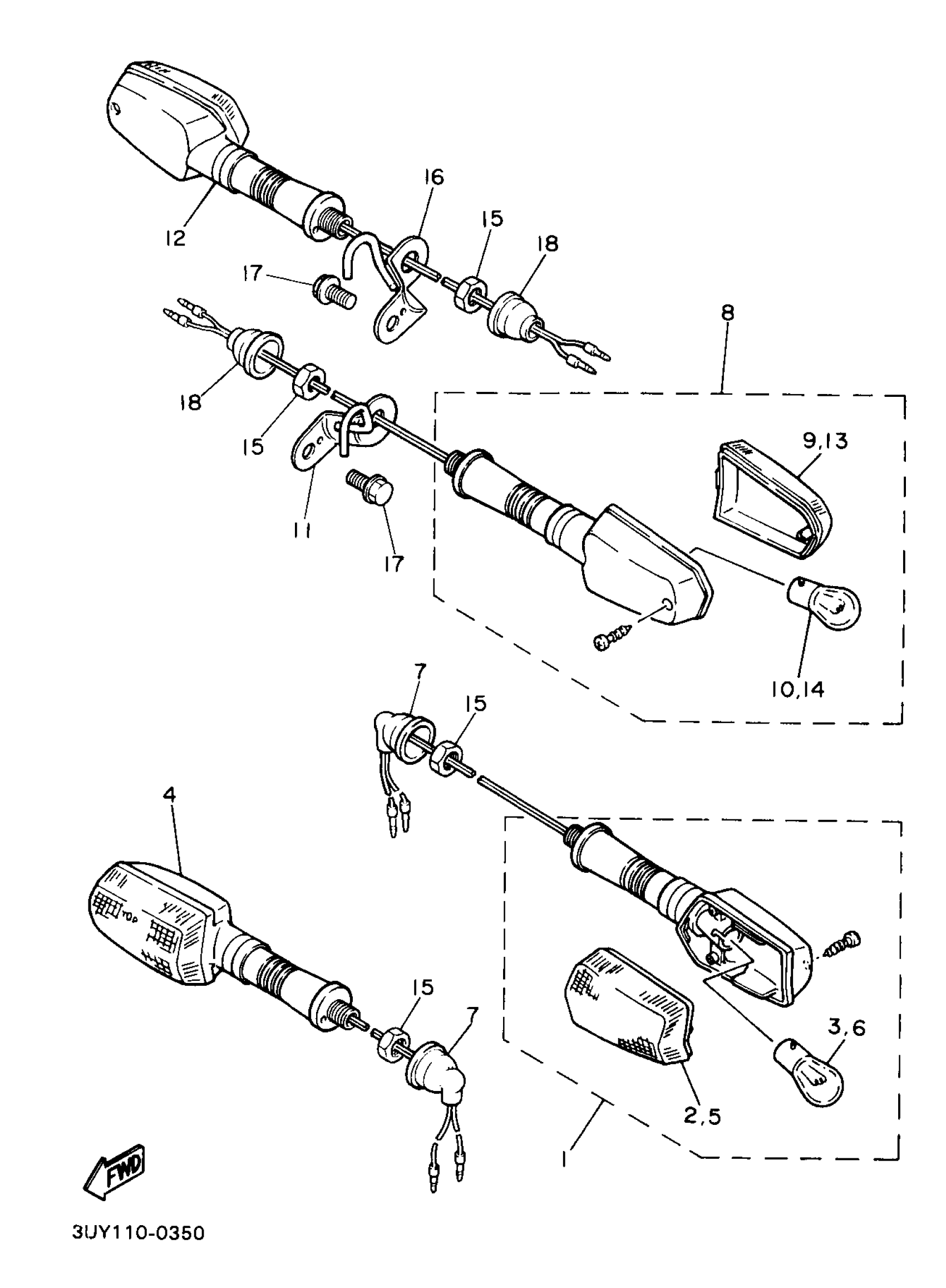

1990 Yamaha XT600E CA (XT600EAC) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

1UF-83310-00-00

1

$125.69

In stock

2

LENS, FLASHER

51L-83332-01-00

—

$8.63

In stock

3

1

$10.02

In stock

4

FRONT FLASHER LIGHT ASSY 2

1UF-83320-00-00

1

$127.45

In stock

5

LENS, FLASHER 2

51L-83342-01-00

1

$7.14

In stock

6

1

$10.02

In stock

7

CAP

18G-83365-00-00

1

$17.88

In stock

8

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

—

$123.75

In stock

9

LENS, FLASHER 2

51L-83342-01-00

1

$7.14

In stock

10

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

11

STAY, FLASHER 1

3TB-83368-00-00

1
Out of stock

12

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

1

$117.07

In stock

13

LENS, FLASHER

51L-83332-01-00

—

$8.63

In stock

14

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

15

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

16

STAY, FLASHER 2

3TB-83369-00-00

1
Out of stock

17

BOLT, FLANGE

95817-08014-00

—

$1.94

In stock

18

CAP

10V-83365-01-00

—

$2.83

In stock
