1980 Yamaha XT500 (XT500G) Steering Handle - Cable Diagram

← All diagrams

Find the part on the Steering Handle - Cable diagram for your 1980 Yamaha XT500 (XT500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

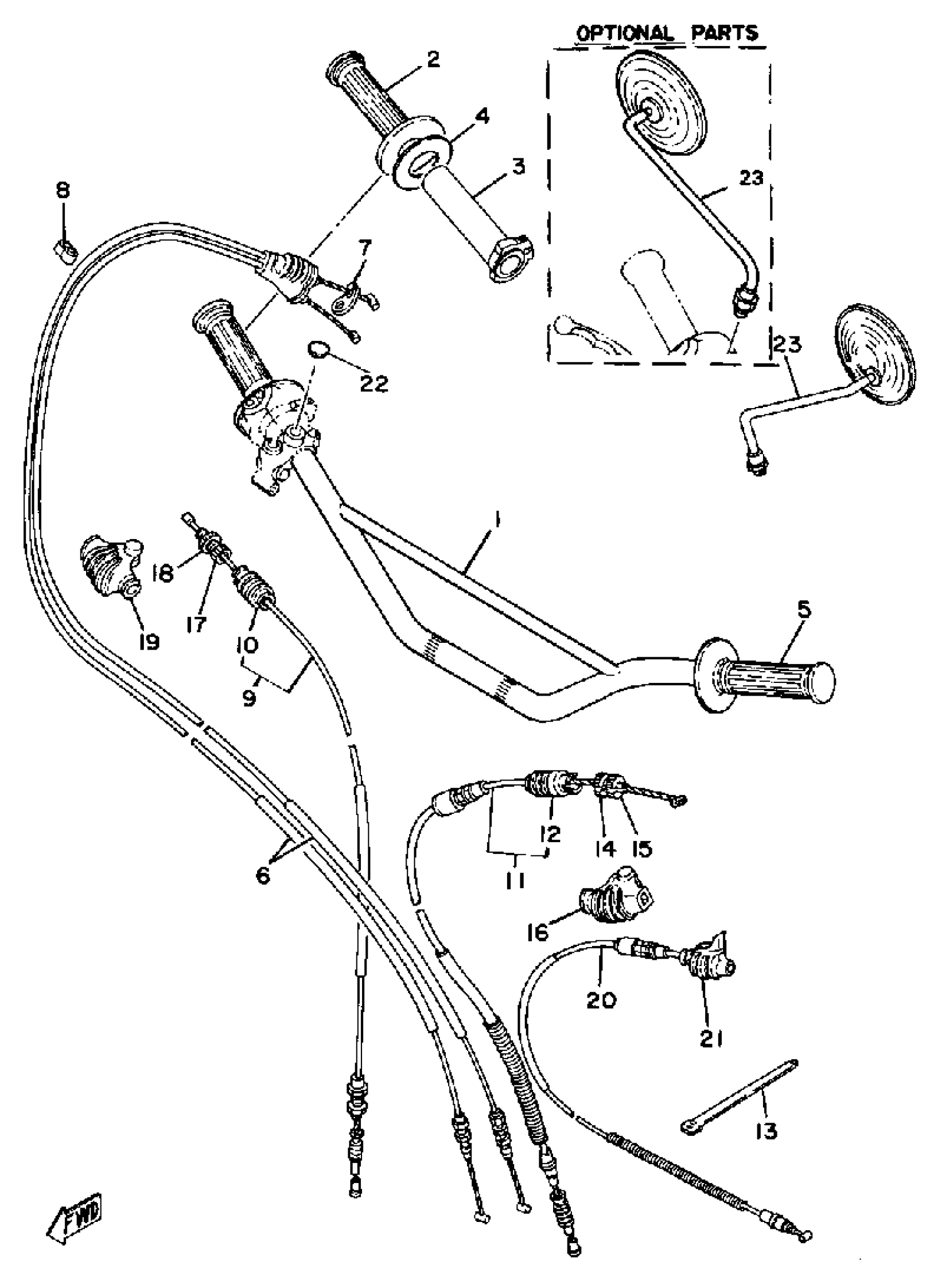

1980 Yamaha XT500 (XT500G) Steering Handle - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

3H7-26111-00-00

—

$118.18

In stock

2

GRIP (R.H)

583-26242-00-00

1

$30.97

In stock

3

TUBE, THRTL GUIDE

2H0-26243-00-00

1
Out of stock

4

RING, LEAF

1W1-26249-00-00

1
Out of stock

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

6

THROTTLE CABLE ASSY

583-26301-01-00

1
Out of stock

7

WASHER

583-26398-00-00

1
Out of stock

8

CLIP, WIRE 2072639100

90468-15009-00

—
Out of stock

9

CABLE, BRAKE

3H7-26341-01-00

1
Out of stock

10

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

11

WIRE, CLUTCH

1E6-26335-01-00

1

$58.78

In stock

12

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

13

BAND

341-26397-01-00

1
Out of stock

14

BOLT

90123-08002-00

1

$8.93

In stock

15

NUT

90179-08030-00

1

$3.78

In stock

16

COVER, LEVER

1E6-26372-00-00

—

$19.91

In stock

17

BOLT

90123-08002-00

1

$8.93

In stock

18

NUT

90179-08030-00

1

$3.78

In stock

19

COVER, LEVER

1E6-26372-00-00

—

$19.91

In stock

20

WIRE, DECOMPRESSION

1E6-26331-00-00

—
Out of stock

21

COVER, DECOMPRESSION WIRE

583-26352-00-00

—
Out of stock

22

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

23

REAR VIEW MIRROR ASSY(LEFT)

1Y1-26290-10-00

—

$103.49

In stock

23

BACK MIRROR RH (341-26290-01)

341-26290-01-00

1
Out of stock
