1980 Yamaha XT500 (XT500G) Front Wheel Diagram

← All diagrams

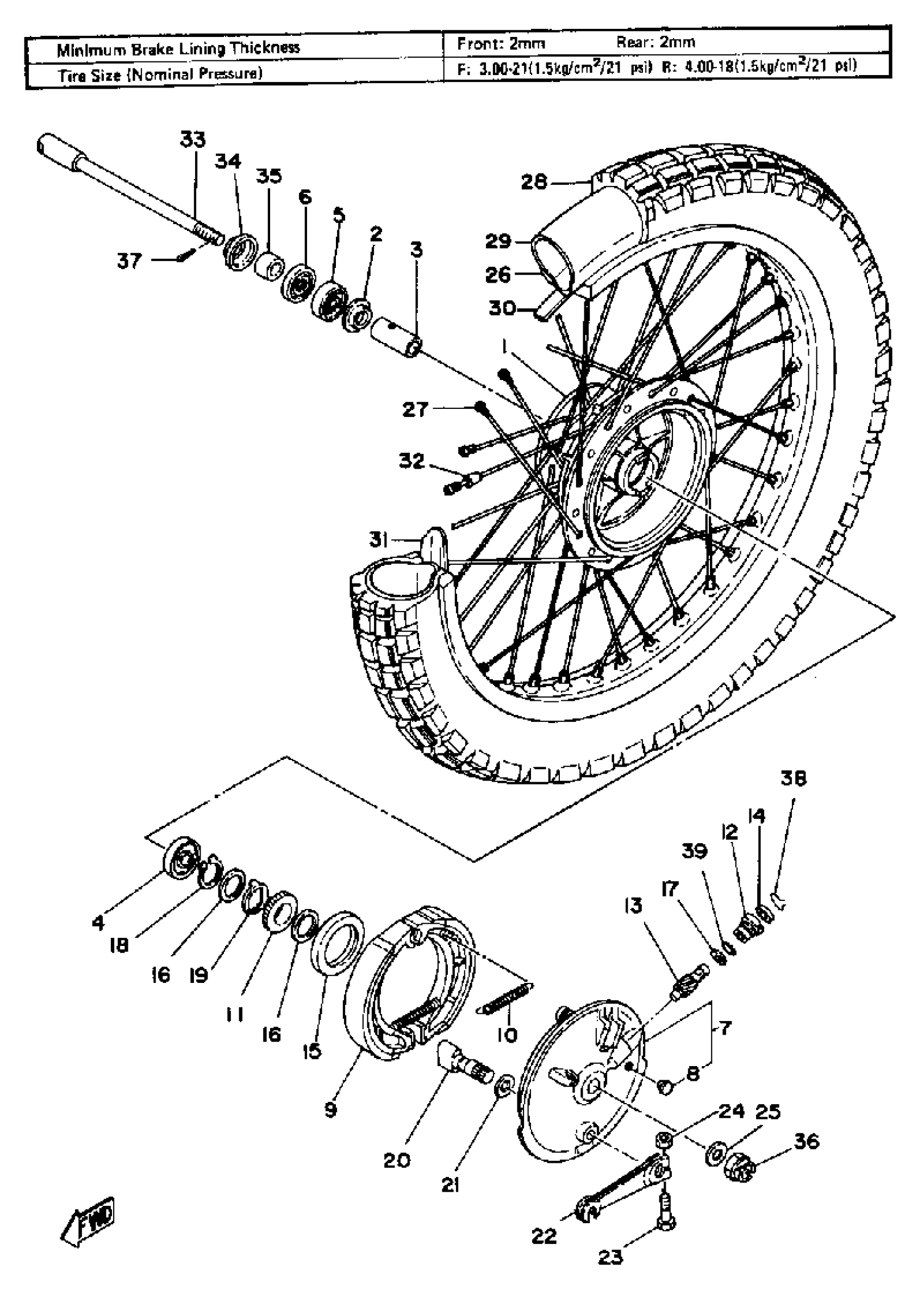

Find the part on the Front Wheel diagram for your 1980 Yamaha XT500 (XT500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XT500 (XT500G) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1E6-25111-00-98

1
Out of stock

2

FLANGE, SPACER

146-25116-00-00

1
Out of stock

3

SPACER(1EE)

90560-15293-00

—
Out of stock

4

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

5

BEARING

93306-20205-00

1

$32.63

In stock

6

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

7

BRAKE SHOE PLT ASSEMBLY

2N6-25016-10-98

1
Out of stock

8

GROMMET (397)

90480-10068-00

1

$6.77

In stock

9

BRAKE SHOE SET-2PCS

431-W2536-00-00

1
Out of stock

10

1

$8.09

In stock

11

GEAR, DRIVE

308-25135-00-00

1
Out of stock

12

BUSHING

109-25136-00-00

1

$8.78

In stock

13

GEAR, METER

308-25138-00-00

1
Out of stock

14

OIL SEAL (7X14X4-136)

93104-07003-00

1

$7.29

In stock

15

OIL SEAL (50X62X7-214)

93105-50010-00

1

$13.85

In stock

16

WASHER PLATE 214251470000

90201-22283-00

—

$5.38

In stock

17

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

18

CIRCLIP(1EY)

99009-22400-00

—

$6.17

In stock

19

CLUTCH, METER

214-25149-01-00

—

$6.68

In stock

20

CAMSHAFT

1E6-25151-00-00

1
Out of stock

21

SHIM, CAM SHAFT

148-25353-00-00

—

$6.40

In stock

22

LEVER, CAM SHAFT

2N6-25155-00-00

—

$199.85

In stock

23

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

26

RIM 1.60X21

94416-21326-00

1
Out of stock

27

SPOKE SET, FRONT

1E6-25104-01-00

1
Out of stock

28

300X21 BS TW5A

(94130-21350-00)

1
Out of stock

29

TUBE, FRONT (2A6)

94227-21123-00

—

$43.59

In stock

30

BAND, RIM (2A6)

94330-21084-00

—

$13.89

In stock

31

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

32

BALANCER, WHEEL

3HT-25398-00-00

—

$6.89

In stock

33

AXLE, WHEEL

1W1-25181-01-00

—

$35.14

In stock

34

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

35

COLLAR

90387-15720-00

1
Out of stock

36

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

37

PIN, COTTER

91490-30030-00

—

$7.15

In stock

38

RING, STOP

102-25137-00-00

—
Out of stock

39

O-RING (26H)

93210-14579-00

—

$5.69

In stock
