1980 Yamaha XT500 (XT500G) Rear Wheel Diagram

← All diagrams

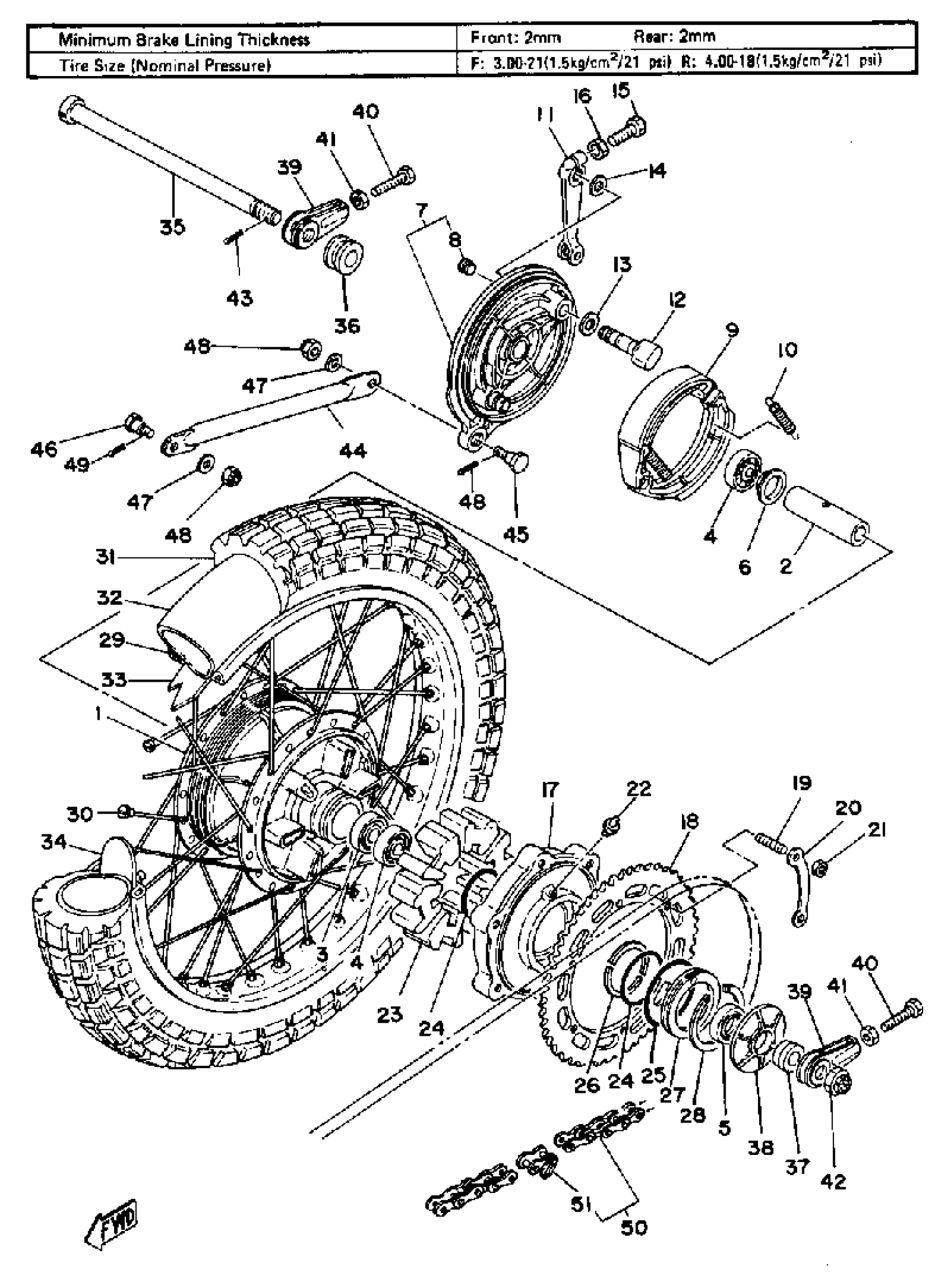

Find the part on the Rear Wheel diagram for your 1980 Yamaha XT500 (XT500G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha XT500 (XT500G) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(1E6-25311-00-98)

1
Out of stock

2

SPACER

90560-17311-00

—
Out of stock

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

1
Out of stock

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

1
Out of stock

5

OIL SEAL (25X40X8-248)

93102-25061-00

1
Out of stock

6

FLANGE, SPACER

146-25315-00-00

1
Out of stock

7

BRAKE SHOE PLT ASSEMBLY

1E6-25321-12-98

1
Out of stock

8

GROMMET (397)

90480-10068-00

1
Out of stock

9

BRAKE SHOE KIT

3GW-W253A-00-00

1
Out of stock

10

SPRING, TENSION 2462533300

90507-20002-00

1
Out of stock

11

LEVER,CAMSHAFT

3BH-25355-00-00

1
Out of stock

12

CAMSHAFT

214-25351-01-00

1
Out of stock

13

SHIM, CAM SHAFT

148-25353-00-00

1
Out of stock

14

SEAL, CAM SHAFT

148-25359-00-00

1
Out of stock

15

BOLT, HEXAGON (538)

90101-06278-00

1
Out of stock

16

NUT, HEXAGON

95380-06600-00

1
Out of stock

17

CLUTCH, HUB

1E6-25366-00-98

1
Out of stock

18

SPROCKET, DRIVEN 44T

38W-25444-20-00

1
Out of stock

19

BOLT, STUD (483)

90116-08218-00

—
Out of stock

20

WASHER

2XJ-25412-00-00

—
Out of stock

21

NUT (583)

90170-08193-00

—
Out of stock

22

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

23

DAMPER, CLUTCH

1E6-25364-00-00

—
Out of stock

24

O-RING (1E6)

93210-52312-00

—
Out of stock

25

O-RING (1E6)

93210-71311-00

—
Out of stock

26

STOPPER, HUB

1E6-25318-01-00

—
Out of stock

27

SEAL, HUB DUST

1E6-25319-01-00

—
Out of stock

28

CIRCLIP (1E6)

93450-78080-00

—
Out of stock

29

RIM 1.85X18

94418-18199-00

1
Out of stock

30

SPOKE SET (REAR)

1E6-25304-00-00

—
Out of stock

31

400X18 BS TW5A

94140-18344-00

1
Out of stock

32

TUBE (5A8)

94212-18188-00

—
Out of stock

33

BAND, RIM (2J4)

94340-18086-00

—
Out of stock

34

SPACER, BEAD

1T2-25394-00-00

—
Out of stock

35

AXLE,WHEEL

150-25381-01-00

1
Out of stock

36

COLLAR(3SX)

90387-170X9-00

—
Out of stock

37

COLLAR (1E6)

90387-17530-00

—
Out of stock

38

COVER, HUB DUST

1E6-25367-00-00

1
Out of stock

39

PULLER, CHAIN 1

48U-25388-00-00

—
Out of stock

40

BOLT

90101-08060-00

—
Out of stock

41

. NUT

95380-08700-00

1
Out of stock

42

NUT, CASTLE (2H6)

90171-16024-00

—
Out of stock

43

PIN, COTTER

91490-30030-00

—
Out of stock

44

BAR, TENSION

3H7-25371-00-00

1
Out of stock

45

BOLT (537 TENSION BAR)

90109-08406-00

—
Out of stock

46

BOLT (183-25378-00)

90109-08368-00

—
Out of stock

47

WASHER, PLAIN

92990-08200-00

1
Out of stock

48

NUT

90185-08055-00

—
Out of stock

49

PIN, COTTER

91490-20025-00

—
Out of stock

50

520D5-100L DID (94515-20100)

9Y585-20099-00

1
Out of stock

51

JOINT, CHAIN

94681-68001-00

—
Out of stock
