1977 Yamaha XT500 (XT500D) Head Lamp Diagram

← All diagrams

Find the part on the Head Lamp diagram for your 1977 Yamaha XT500 (XT500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

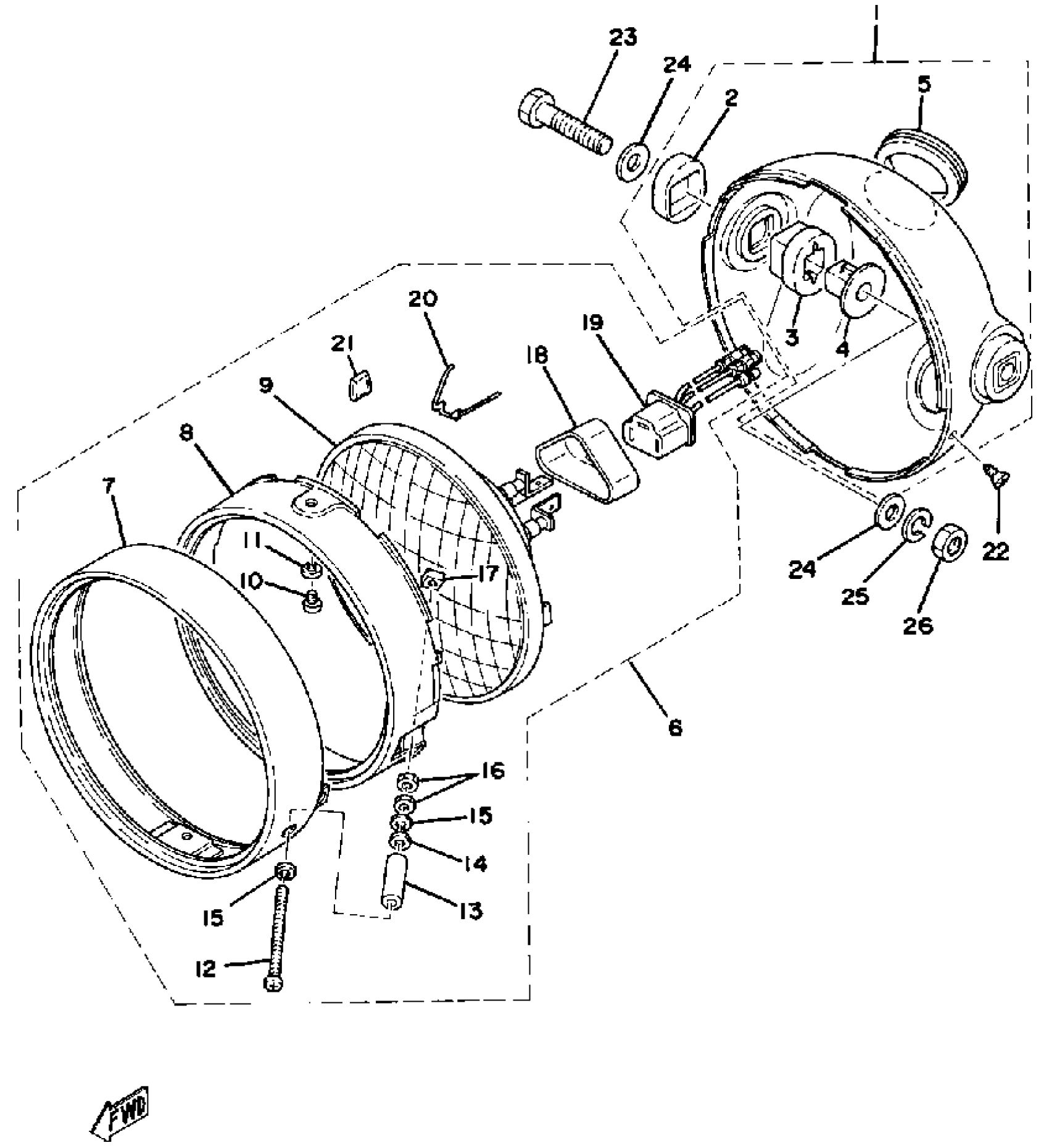

1977 Yamaha XT500 (XT500D) Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

(1E6-84130-60-33)

1
Out of stock

2

DAMPER, HEAD LAMP B

498-84164-60-00

1

$5.93

In stock

3

DAMPER, HEAD LAMP A

498-84163-60-00

1

$5.68

In stock

4

COLLAR, BODY FITTING

498-84145-60-00

1

$6.52

In stock

5

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

7

. RIM, HEADLIGHT

498-84115-60-00

1
Out of stock

8

. RING, RETAINING

498-84195-60-00

1
Out of stock

9

. LENS ASSEMBLY

498-84120-61-00

1
Out of stock

10

. SCREW

438-84194-60-00

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

13

COLLAR, SCREW

438-84133-60-00

1
Out of stock

14

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

15

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

16

NUT(6TA)

95307-04600-00

1

$6.69

In stock

17

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

18

. COVER, SOCKET

341-84397-61-00

1
Out of stock

19

SOCKET

371-84312-60-00

—

$26.52

In stock

20

SPRING, SET

1UY-84124-00-00

—

$6.55

In stock

21

. SPACER

498-84128-60-00

1
Out of stock

22

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

23

BOLT

97014-08040-00

—

$5.26

In stock

24

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock
