HANDLE - WIRE

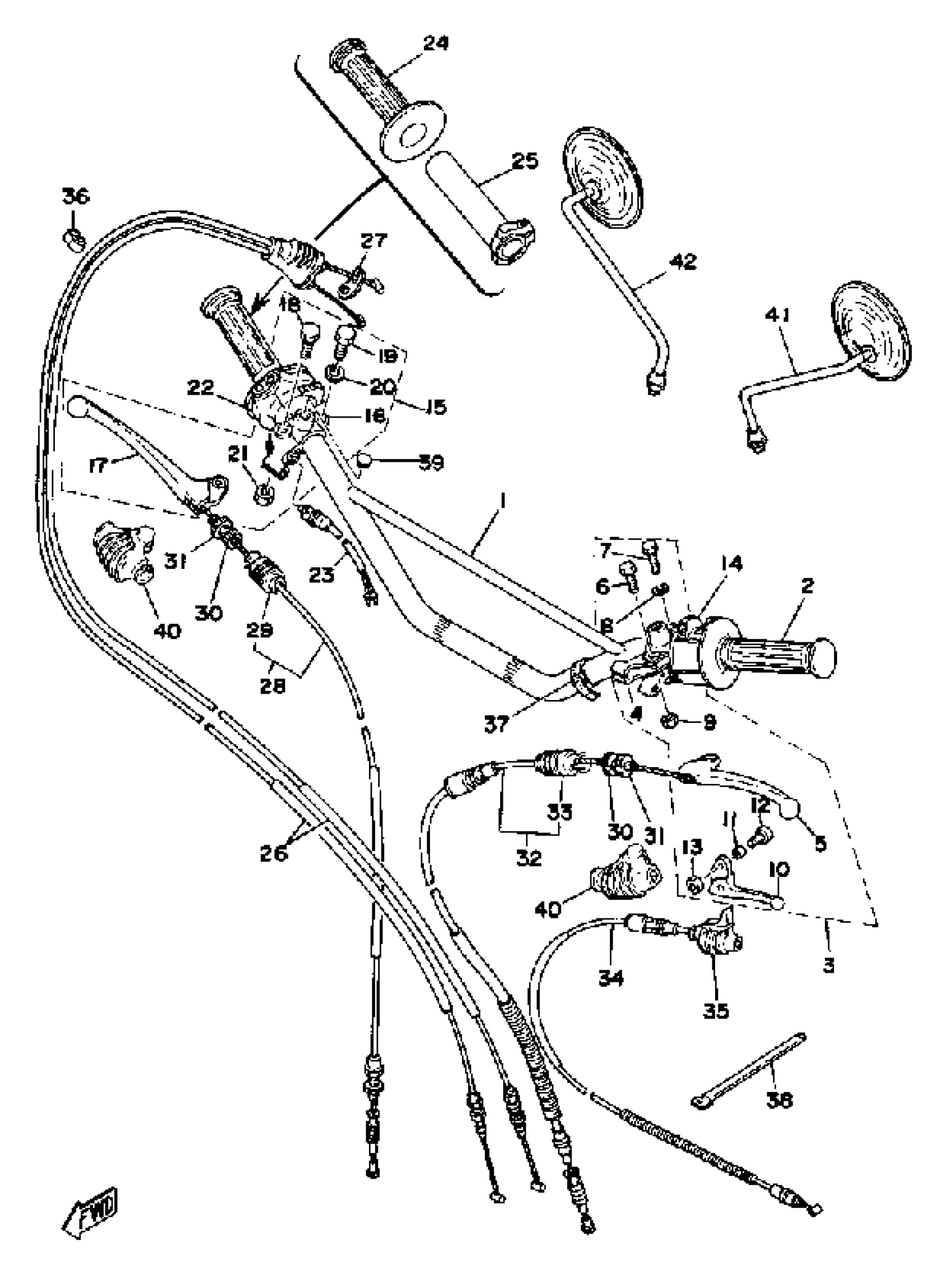

1976 Yamaha XT500 (XT500C) Handle - Wire Diagram
Find the part on the Handle - Wire diagram for your 1976 Yamaha XT500 (XT500C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HANDLEBAR
(1E6-26111-00-00)
2
GRIP, HANDLE (L.H)
1E6-26241-00-00
3
LEVER HOLDER ASSEMBLY 1
(583-82910-01-00)
10
LEVER, DECOMPRESSION
583-83981-00-00
11
COLLAR, LEVER 1
5BE-83913-00-00
14
SWITCH,HANDLE 4
3G7-83972-01-00
15
LEVER HOLDER ASSEMBLY 2
1E6-W8292-30-00
16
. LEVER HOLDER ASSEMBLY 2
361-82920-93-00
22
SWITCH, HANDLE 1
1E6-83976-00-00
25
TUBE, THRTL GUIDE
2H0-26243-00-00
26
THROTTLE CABLE ASSY
583-26301-01-00
27
WASHER
583-26398-00-00
28
WIRE, BRAKE FRONT
1E6-26341-00-00
34
WIRE, DECOMPRESSION
1E6-26331-00-00
35
COVER, DECOMPRESSION WIRE
583-26352-00-00
36
CLIP, WIRE 2072639100
90468-15009-00
38
BAND
341-26397-01-00
42
BACK MIRROR RH (341-26290-01)
341-26290-01-00
