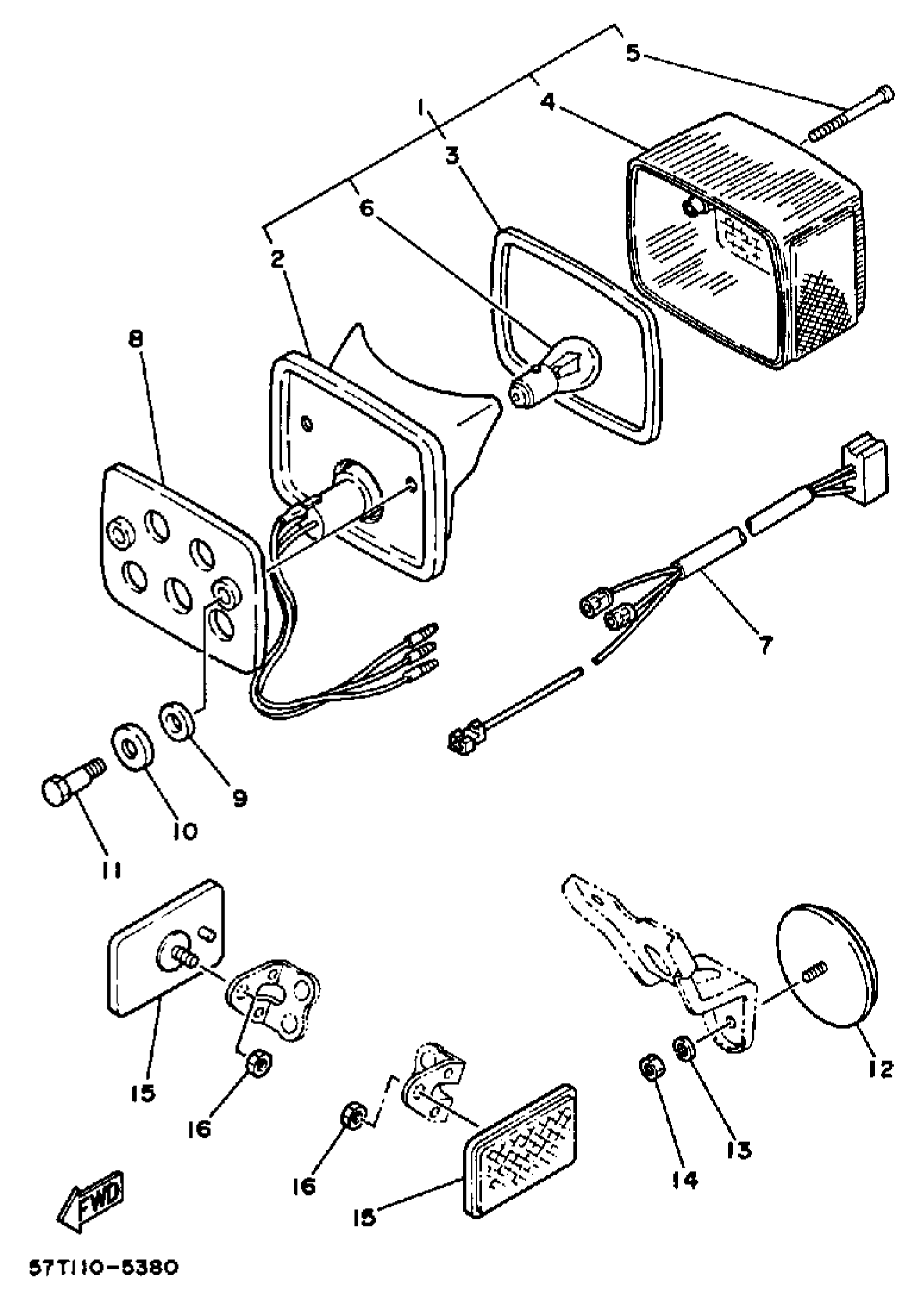

Yamaha XT350TC (XT350 CA) 1987 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$93.11

2

. BASE, TAILLIGHT

1M1-84511-60-00

Unavailable

3

GASKET, TAIL LENS

1M1-84523-60-00

$10.51

4

LENS, TAIL LAMP

1M1-84521-60-00

$34.91

5

SCREW, ADJUSTING

5BF-8433E-00-00

$5.82

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.54

7

CORD, TAILLIGHT

42U-84517-00-00

Unavailable

8

DAMPER

4L0-84753-00-00

Unavailable

9

WASHER, PLATE (4L0)

90201-083A0-00

$6.59

10

WASHER, SPECIAL (498)

90209-08125-00

$9.68

11

BOLT 337847520000

90109-06005-00

$5.98

12

REFLECTOR, REAR 1

449-85131-02-00

$24.54

13

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

14

NUT, HEXAGON (663)

95380-05600-00

Unavailable

15

FRONT REFLECTOR ASSY

23V-85110-00-00

$20.52

16

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
