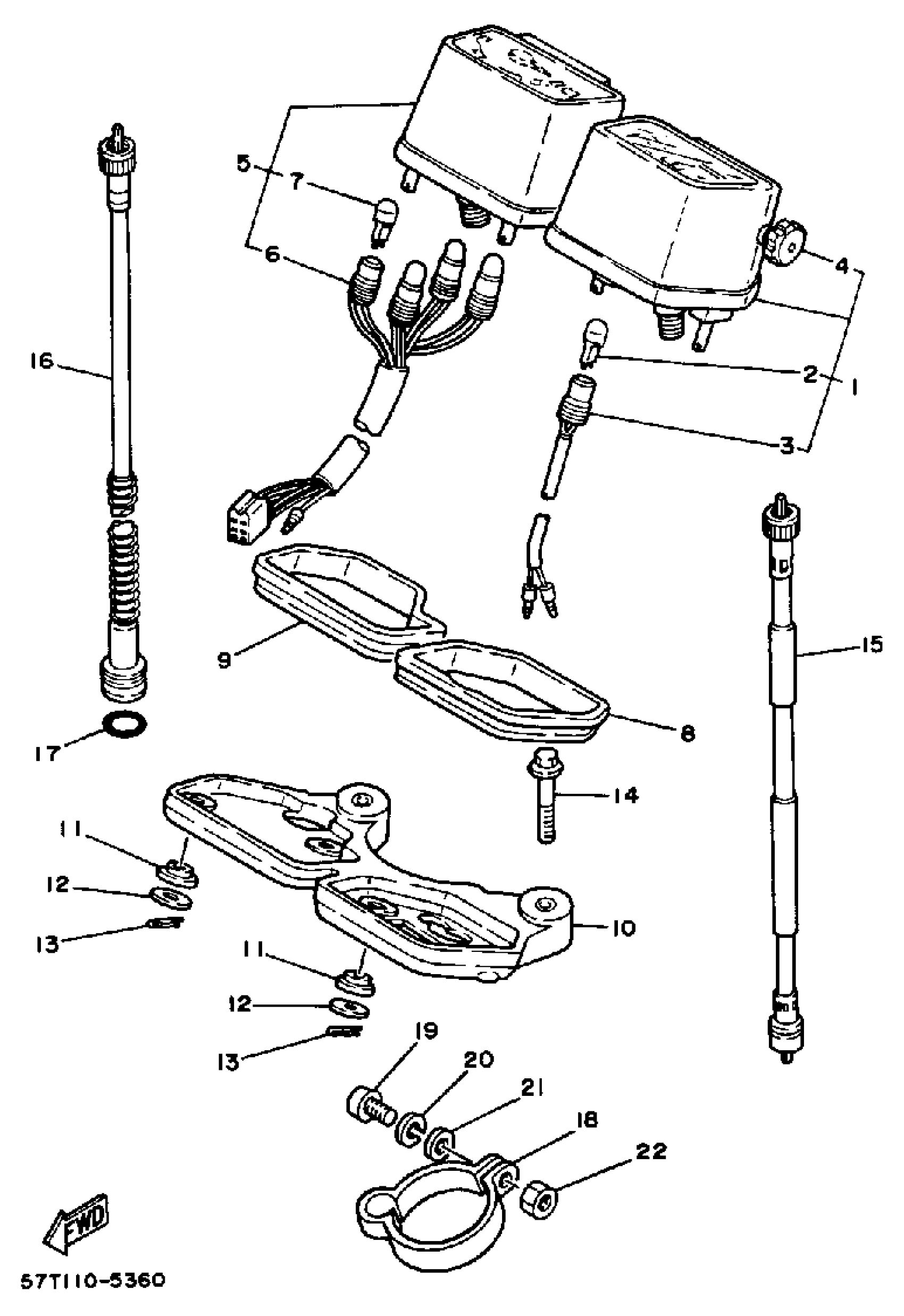

Yamaha XT350TC (XT350 CA) 1987 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

43F-83570-G1-00

Unavailable

2

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.94

3

SOCKET CORD ASSY

5E2-83509-20-00

$24.52

4

KNOB, TRIP METER

5Y1-83578-00-00

$21.05

5

TACHOMETER ASY

1ET-83540-00-00

Unavailable

6

. SOCKET CORD ASSEMBLY (30X-83520-00-00)

5Y1-83520-00-00

Unavailable

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.94

8

DAMPER

5Y1-83513-00-00

Unavailable

9

DAMPER

5Y1-83541-00-00

$18.91

10

BRACKET, METER

5Y1-83519-00-00

$51.73

11

DAMPER 2

1M1-83526-01-00

$3.59

12

WASHER PLATE 829771780000

90201-05033-00

$6.76

13

CLIP (156-83525-00)

90468-10050-00

$2.20

14

BOLT, SMALL FLANGE

95027-06040-00

$2.36

15

SPEEDOMETER CABLE ASSY

48Y-83550-03-00

$32.30

16

TACHOMETER CABLE ASSY

30X-83560-01-00

Unavailable

17

O-RING (26H)

93210-14579-00

Unavailable

18

BAND

3Y1-26397-00-00

Unavailable

19

SCREW, PAN HEAD(6B0)

97885-05016-00

$3.75

20

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

21

WASHER, PLAIN (646)

92990-05600-00

Unavailable

22

NUT, HEXAGON (663)

95380-05600-00

Unavailable
