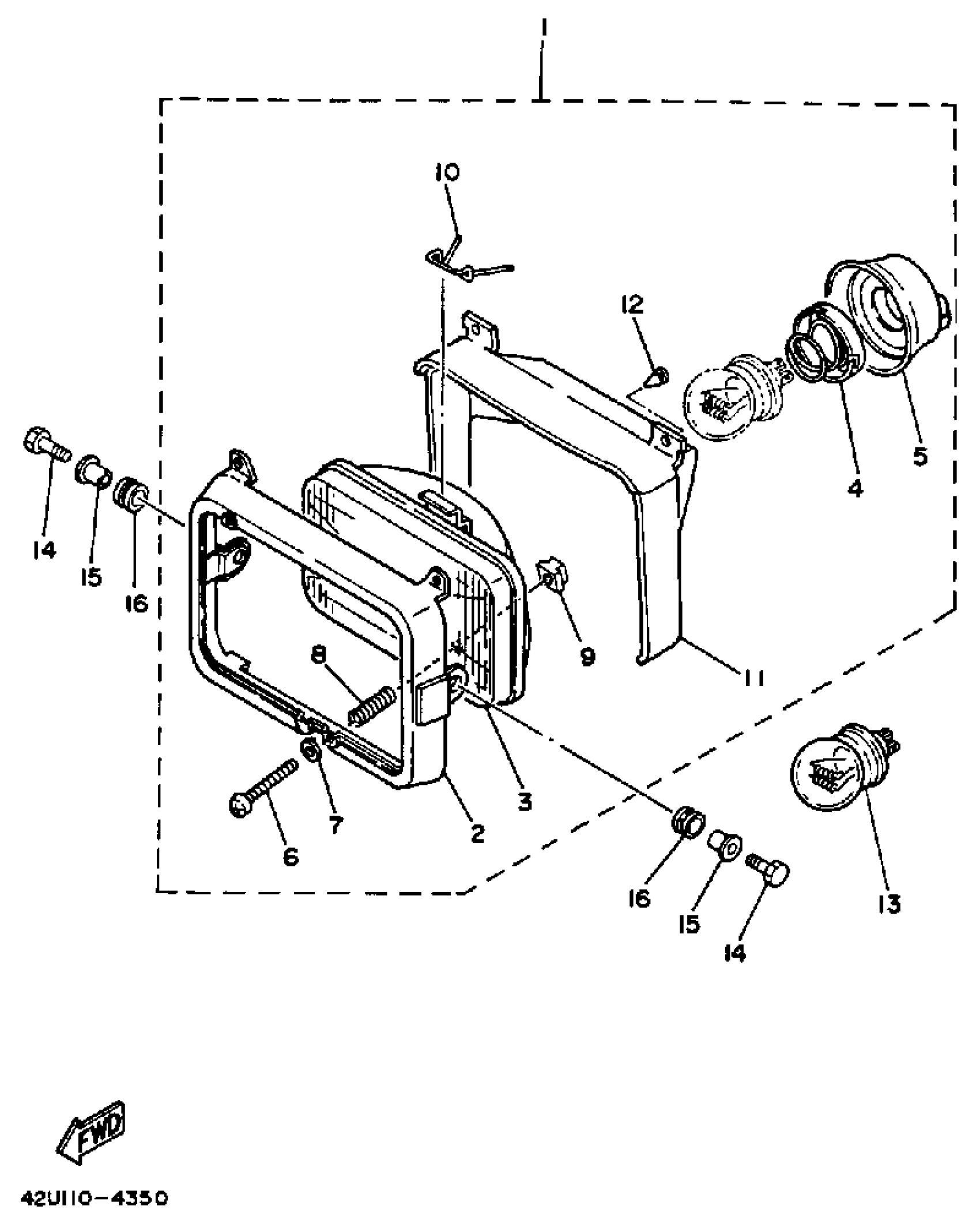

Yamaha XT350TC (XT350 CA) 1987 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

42U-84303-60-00

Unavailable

2

RIM, HEADLIGHT

47J-84115-00-00

$137.94

3

. LENS ASSEMBLY

42U-84321-60-00

Unavailable

4

. HOLDER, BULB

341-84393-40-00

Unavailable

5

. COVER

46X-84396-00-00

Unavailable

6

SCREW, RIM ADJUSTER

43F-84131-00-00

$8.54

7

WASHER,SPECIAL

233-84127-60-00

$2.66

8

SPRING, ADJUST

341-84332-60-00

$8.13

9

NUT, ADJUST

198-84334-60-00

$6.12

10

SET SPRING

55X-84124-00-00

$10.65

11

COVER

10V-84196-00-00

Unavailable

12

CLIP COVER FITTING

10V-84198-00-00

Unavailable

13

BULB, HEAD LIGHT (12V45/40W

1U4-84314-40-XX

Unavailable

14

BOLT, HEXAGON

97017-06025-00

$2.84

15

COLLAR

90387-06158-00

$5.87

16

GROMMET 839774310000

90480-14023-00

Unavailable
