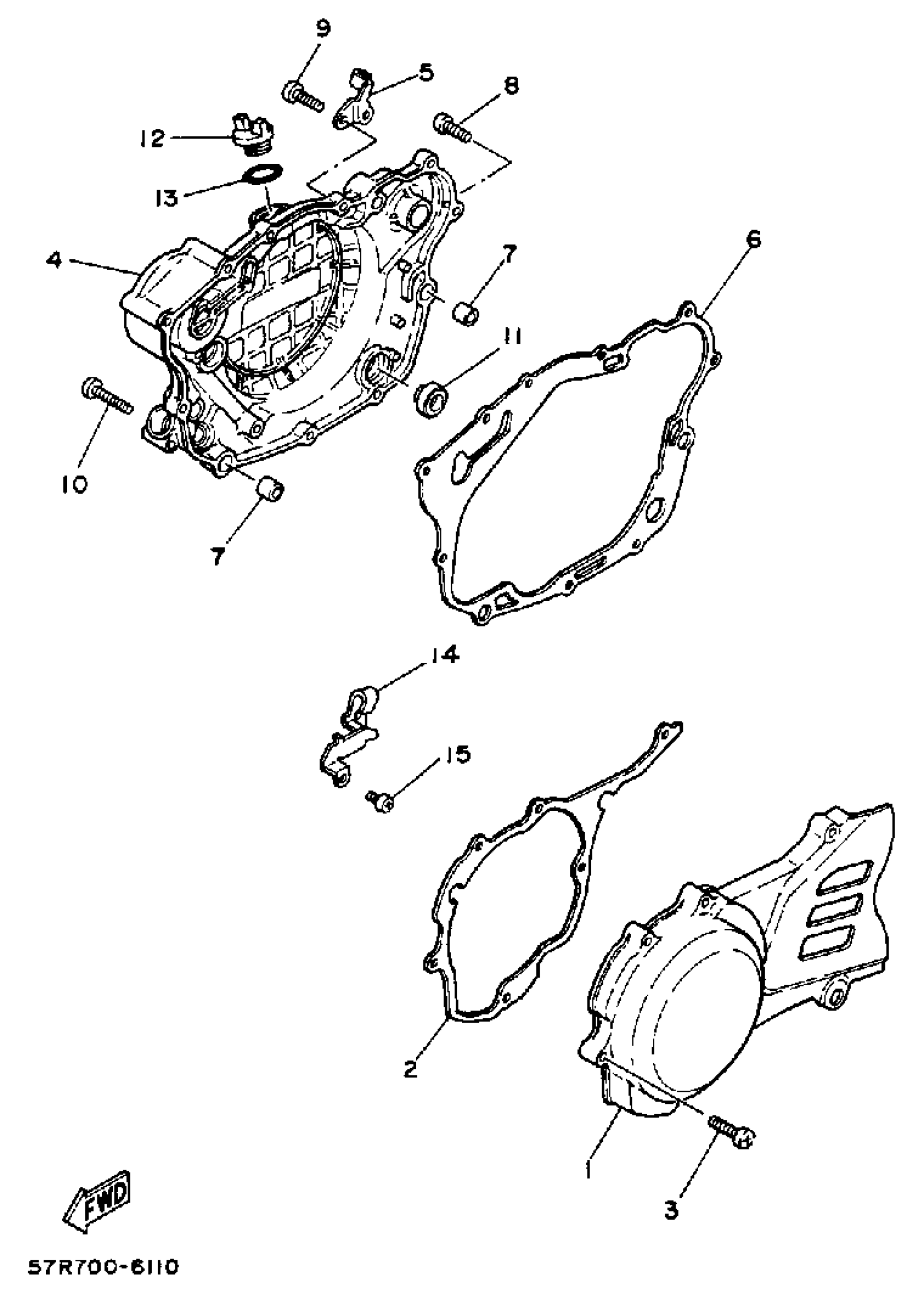

Yamaha XT350TC (XT350 CA) 1987 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE LH

30X-15411-01-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4EL-15451-00-00

$20.02

3

SCREW, PAN

98517-06030-00

$2.88

4

COVER, CRANKCASE 2

55V-15421-01-00

Unavailable

5

HOLDER

30X-15378-00-00

Unavailable

6

GASKET, CRANKCASE COVER 2

4EL-15461-04-00

$19.91

7

PIN, DOWEL

99530-12016-00

$3.93

8

BOLT,SOCKET

91317-06025-00

$1.95

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.76

10

BOLT,SOCKET

91317-06040-00

$3.28

11

GAUGE, LEVEL

3Y1-15361-00-00

$24.30

12

PLUG, OIL

3Y1-15363-10-00

$16.14

13

O-RING (646)

93210-19123-00

Unavailable

14

CLAMP

90462-08062-00

Unavailable

15

SCREW, PAN

98517-06012-00

$2.99
