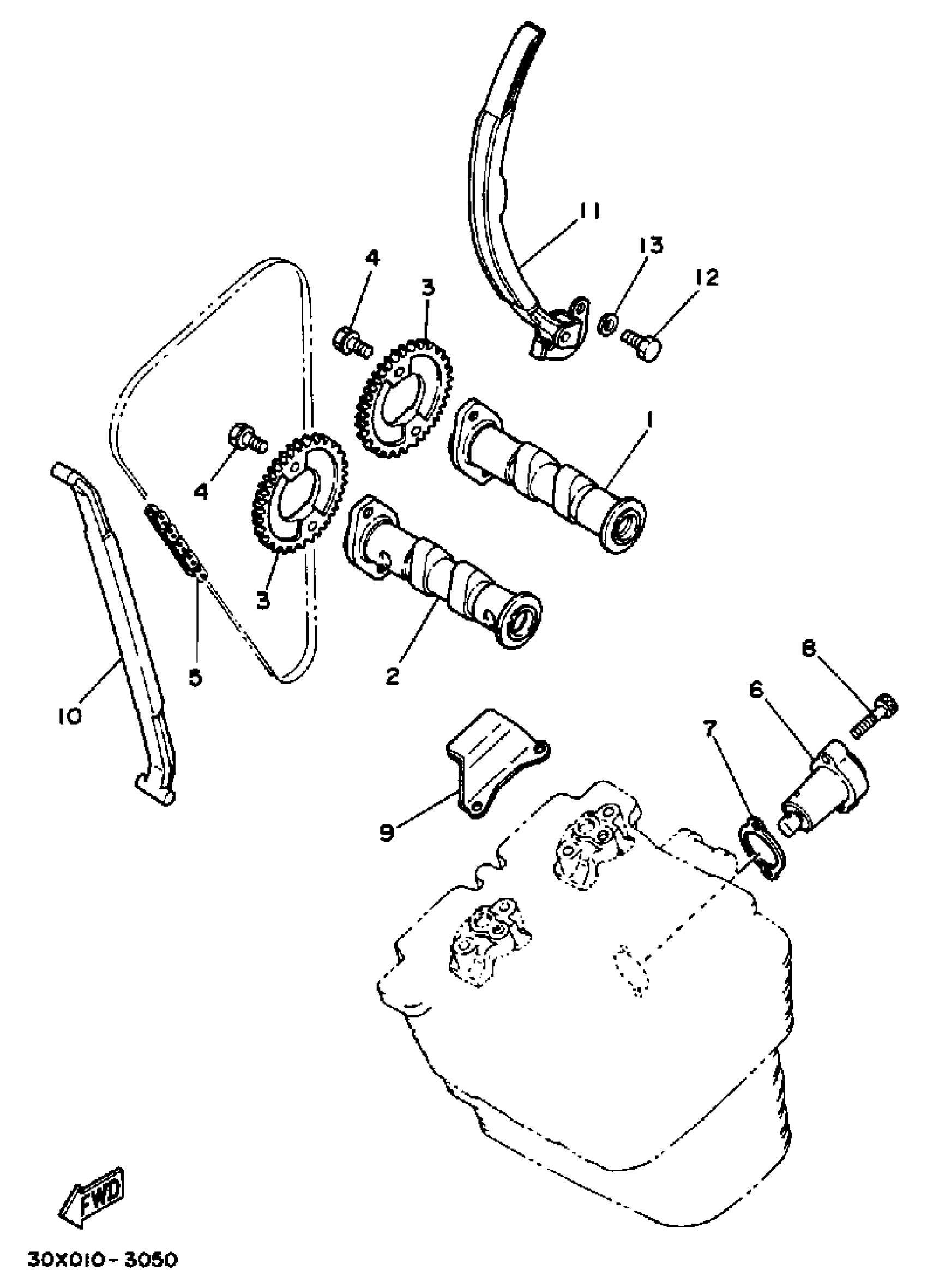

Yamaha XT350TC (XT350 CA) 1987 CAMSHAFT - CHAIN Diagram

CAMSHAFT 1

48Y-12171-00-00

Unavailable

CAMSHAFT 2

48Y-12181-00-00

Unavailable

SPROCKET, CAM CHAIN

30X-12176-00-00

Unavailable

BOLT, FLANGE

90105-07006-00

$5.97

CHAIN, DRIVE (79-010M-136L)

94590-91136-00

$105.16

TENSIONER ASSY, CAM CHAIN

30X-12210-00-00

$96.84

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.45

BOLT,SOCKET

91317-06025-00

$1.95

GUIDE, STOPPER 2

30X-12241-00-00

Unavailable

DAMPER, CHAIN 1

30X-12251-00-00

$40.95

DAMPER, CHAIN 2

30X-12252-01-00

$125.74

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.81

WASHER, PLATE (4H7)

90201-061A5-00

$5.59
