1982 Yamaha XT250J_1982 Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 1982 Yamaha XT250J_1982, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

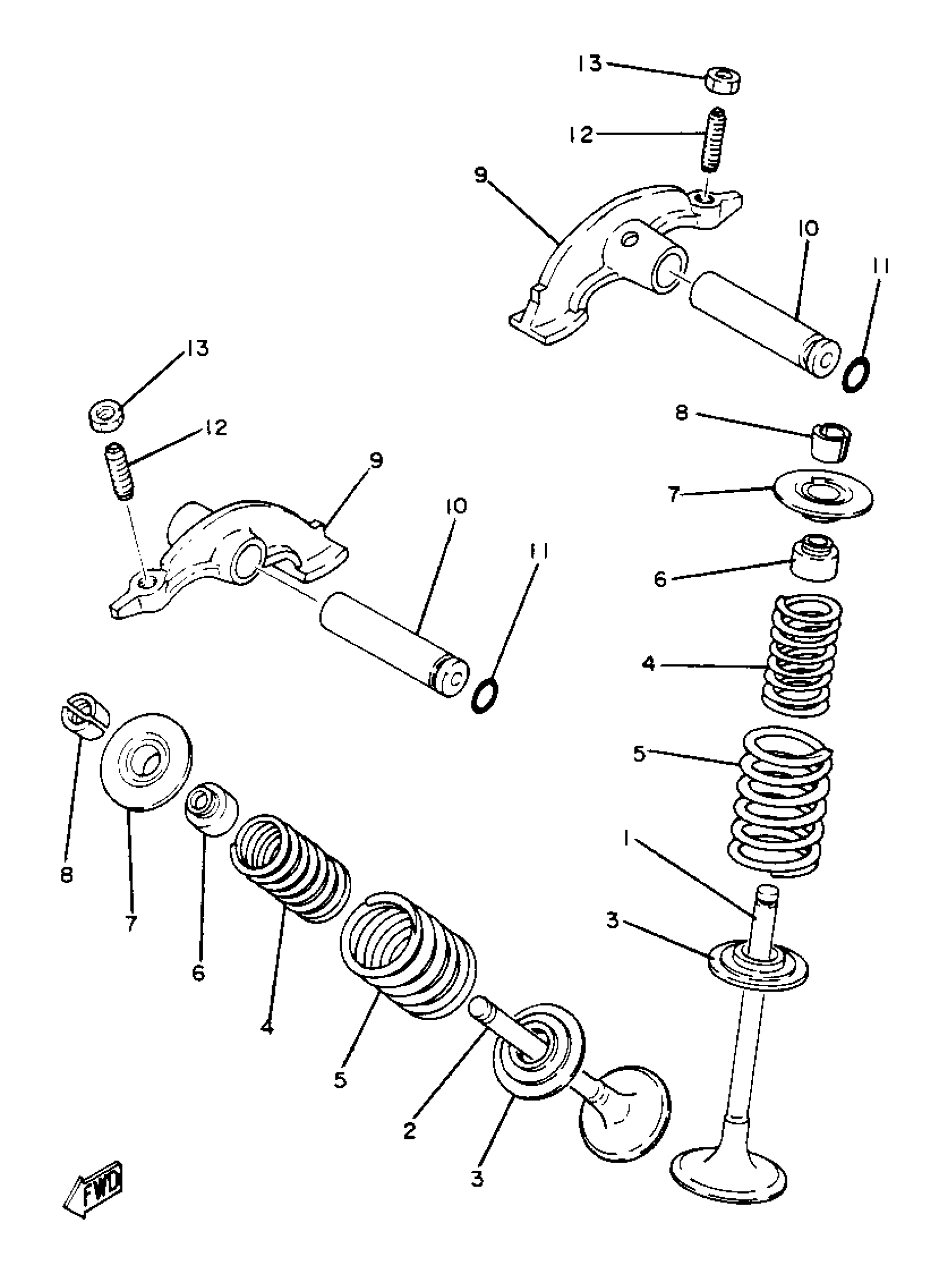

1982 Yamaha XT250J_1982 Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

3Y1-12111-01-00

—

$77.62

In stock

2

VALVE, EXHAUST

3Y1-12121-01-00

1

$90.89

In stock

3

SEAT, VALVE SPRING

3Y1-12116-00-00

1
Out of stock

4

SPRING, VALVE INNER

3Y1-12113-01-00

—

$15.11

In stock

5

SPRING, VALVE OUTER

3Y1-12114-01-00

1

$32.66

In stock

6

SEAL, VALVE STEM OIL

1J7-12119-01-00

1
Out of stock

7

RETAINER, VALVE SPRING

3Y1-12117-01-00

1
Out of stock

8

LOCK, VALVE SPRING

1J7-12118-00-00

1
Out of stock

9

NUT, LOCK

31G-12158-00-00

1
Out of stock

9

SCREW, VALVE ADJUSTING

31G-12159-02-00

1
Out of stock

9

UNAVAILABLE IN PRICE BOOK

3Y-11215-10-90

1
Out of stock

9

ARM, ROCKER (XT/SR/TT250)

99999-01443-00

1

$165.57

In stock

10

SHAFT, ROCKER

3Y1-12156-00-00

1
Out of stock

11

O-RING (1J7)

93210-09350-00

1

$5.82

In stock

12

SCREW, VALVE ADJUSTING

2NX-12159-00-00

1

$10.23

In stock

13

NUT HEXAGON 371121580000

90170-06128-00

—

$6.17

In stock
