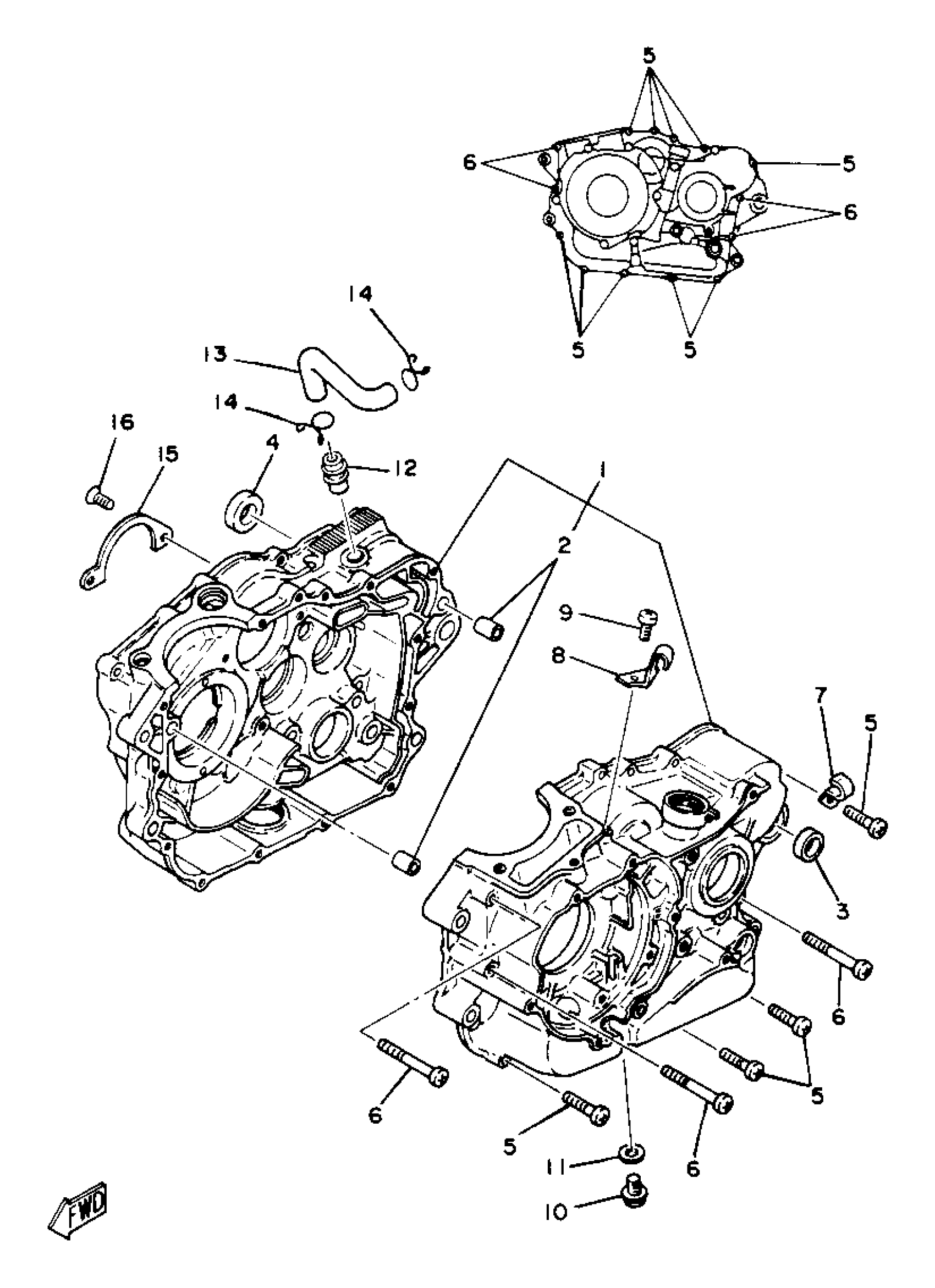

Find the part on the Crankcase diagram for your 1982 Yamaha XT250J_1982, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT250J_1982 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

3Y1-15100-02-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

COLLAR

90387-17009-00

1
Out of stock

4

COLLAR (3Y1)

90387-16782-00

1

$4.65

In stock

5

SCREW, PAN

98517-06030-00

1
Out of stock

6

SCREW, PAN

98507-06060-00

1

$5.60

In stock

7

CLAMP(51Y)

90465-08277-00

—
Out of stock

8

HOLDER, CLUTCH CABLE (3Y1-15441-010

31G-15441-00-00

1
Out of stock

9

SCREW, PAN

98507-06014-00

1

$6.18

In stock

10

1

$8.44

In stock

11

WASHER, PLATE(481)

90201-10118-00

—

$2.91

In stock

12

PIPE, BREATHER 2

371-11167-01-00

1

$10.35

In stock

13

PIPE, BREATHER 1

3Y1-11166-00-00

—

$20.75

In stock

14

CLIP (371)

90467-14015-00

1

$7.51

In stock

15

PLATE, BRNG COVER

(3Y1-15383-00-00)

1
Out of stock

16

SCREW, FLAT

98707-06014-00

—
Out of stock
