STEERING

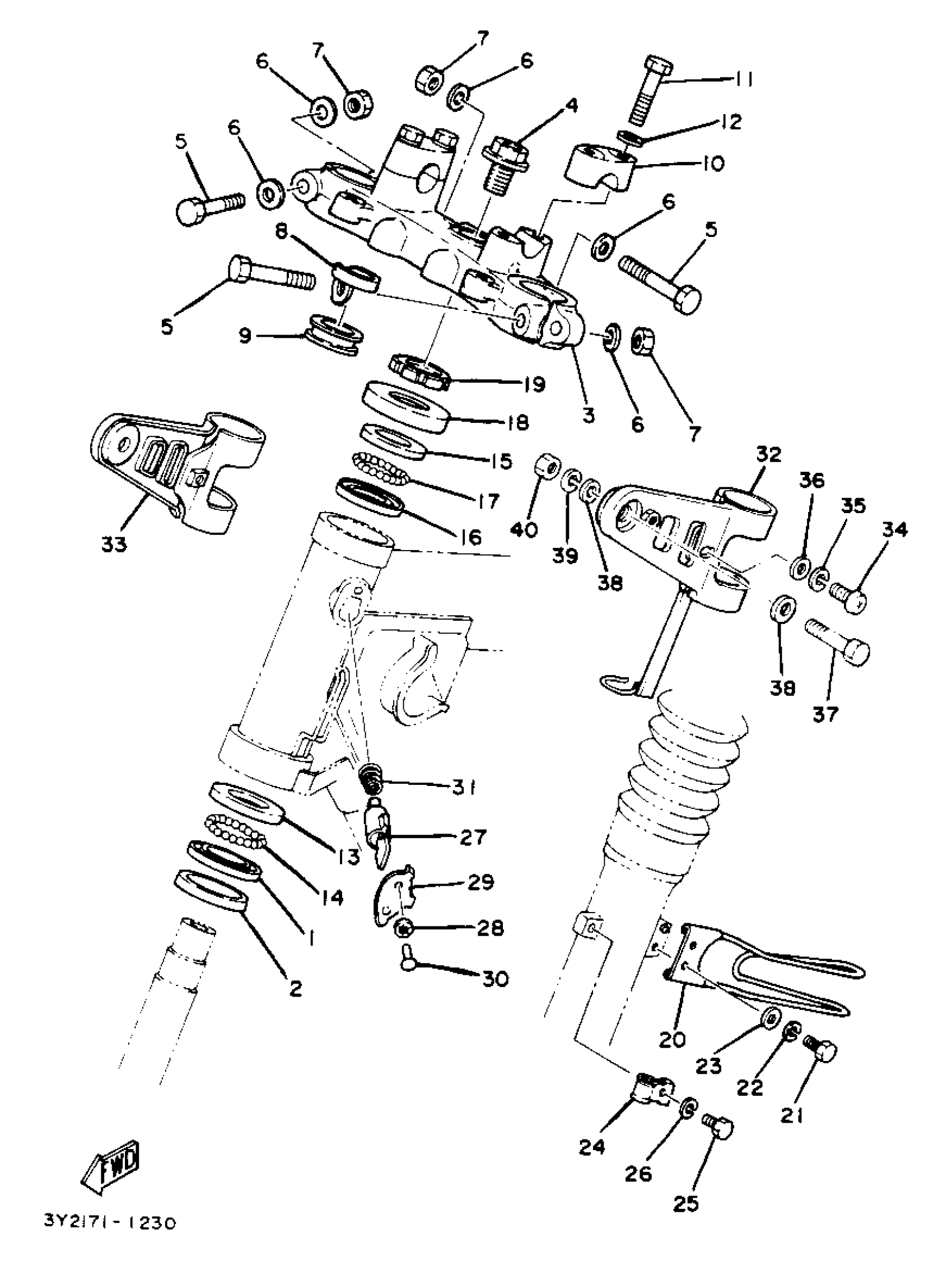

1982 Yamaha XT250J_1982 Steering Diagram
Find the part on the Steering diagram for your 1982 Yamaha XT250J_1982, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
3
CROWN, HANDLE
3Y1-23435-00-98
1
Out of stock
8
HOLDER, CABLE
(3Y1-23317-A0-00)
1
Out of stock
11
BOLT, DOME HEAD
90106-08032-00
1
Out of stock
14
BALL
93501-04011-00
1
Out of stock
18
COVER BALL RACE
10V-23416-01-00
—
Out of stock
20
HOLDER, CABLE 1
2N6-23318-00-00
1
Out of stock
26
WASHER, SPRING
92907-06100-00
—
Out of stock
32
STAY, HEADLIGHT 1
3Y1-84118-01-00
1
Out of stock
33
STAY, HEADLIGHT 2
3Y1-84119-01-00
1
Out of stock
35
WASHER, SPRING
92907-06100-00
—
Out of stock
