Find the part on the Handlebar Cable diagram for your 1982 Yamaha XT250J_1982, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

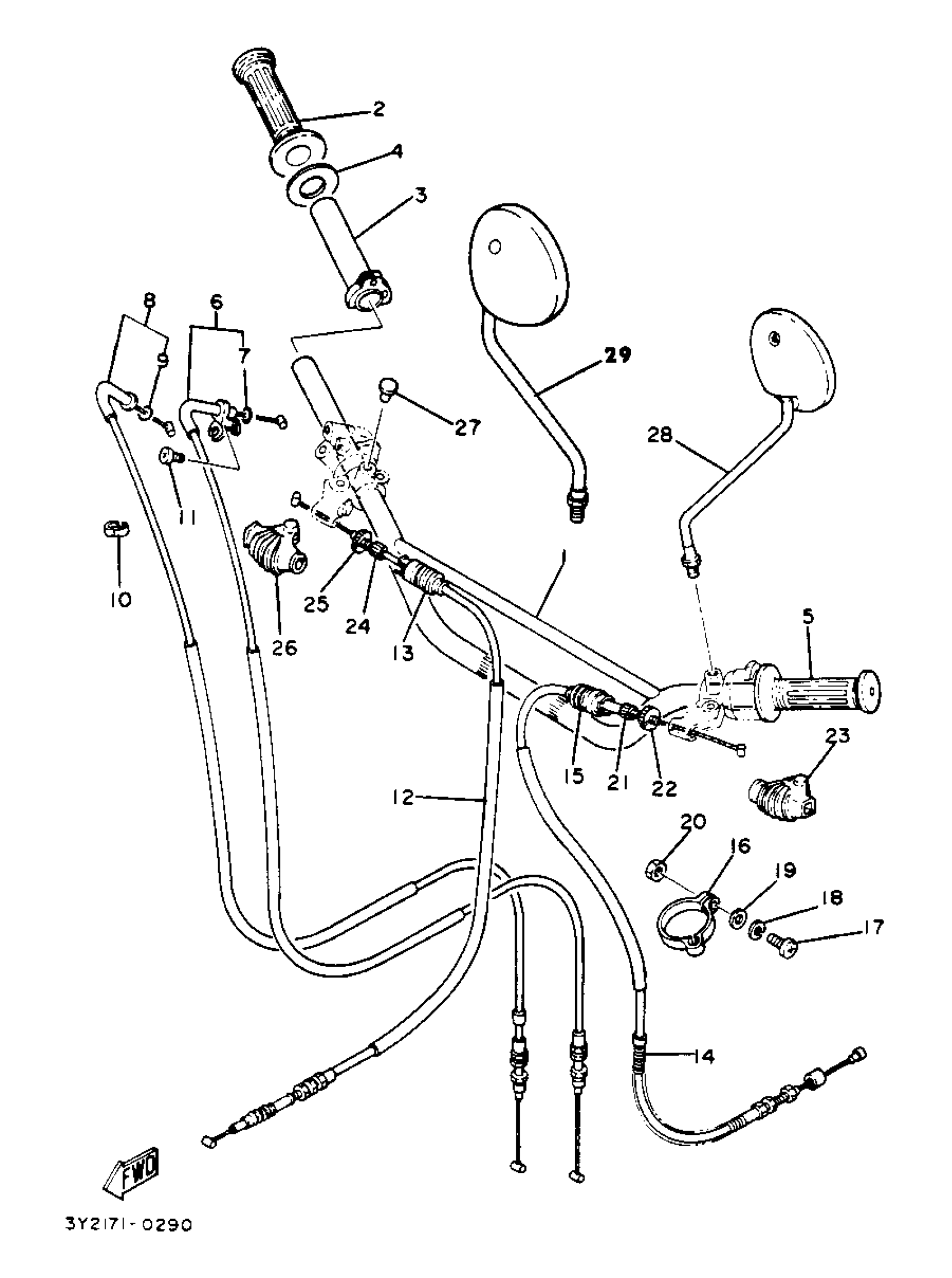

1982 Yamaha XT250J_1982 Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3Y1-26111-00-00

1
Out of stock

2

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

1
Out of stock

4

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

6

CABLE, THROTTLE 1

3Y1-26311-00-00

1

$38.01

In stock

7

. O-RING

93210-08408-00

1
Out of stock

8

CABLE, THROTTLE 2

53R-26312-00-00

1

$39.47

In stock

9

. O-RING

93210-08408-00

1
Out of stock

10

CLIP, WIRE 2072639100

90468-15009-00

—
Out of stock

11

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

12

CABLE, BRAKE

3Y1-26341-00-00

—
Out of stock

13

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

14

CABLE, CLUTCH

3Y0-26335-00-00

—

$48.42

In stock

15

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

16

BAND

3Y1-26397-00-00

1
Out of stock

17

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

18

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

19

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

20

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

21

BOLT

90123-08002-00

—

$8.93

In stock

22

NUT

90179-08030-00

—

$3.78

In stock

23

COVER, LEVER

1E6-26372-00-00

—

$19.91

In stock

24

BOLT

90123-08002-00

—

$8.93

In stock

25

NUT

90179-08030-00

—

$3.78

In stock

26

COVER, LEVER

1E6-26372-00-00

—

$19.91

In stock

27

PLUG (341-26329-00)

90338-09012-00

—

$7.26

In stock

28

MIRROR ASSY., 2

5Y1-26290-11-00

—
Out of stock

29

—

$45.60

In stock
