1982 Yamaha XT250J_1982 Headlight Diagram

← All diagrams

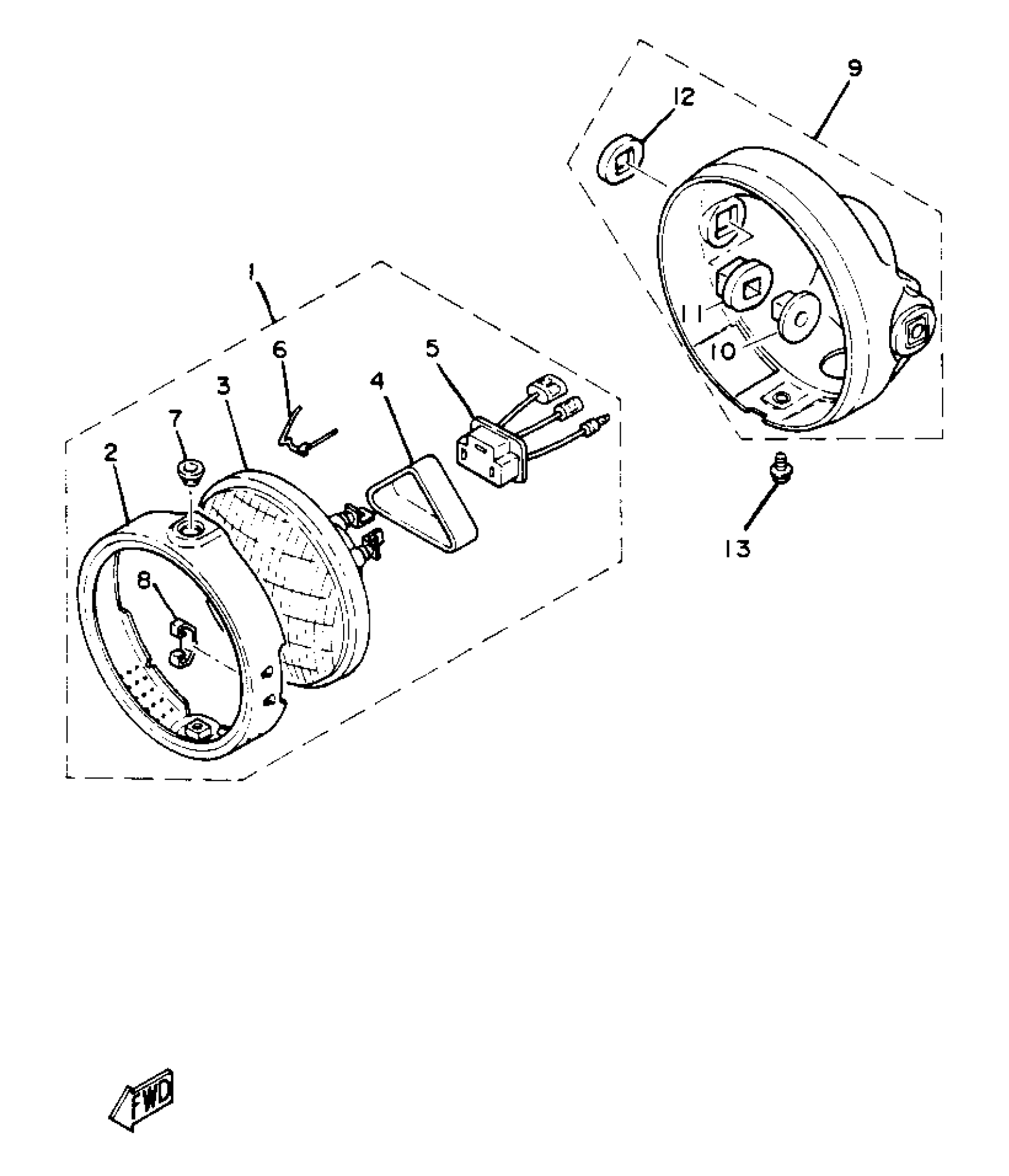

Find the part on the Headlight diagram for your 1982 Yamaha XT250J_1982, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT250J_1982 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

3J-08411-06-00

1
Out of stock

2

RING, RETAINING

3J0-84195-60-00

—

$52.78

In stock

3

. LENS ASSEMBLY

2A6-84120-60-00

1
Out of stock

4

. COVER, SOCKET

341-84397-61-00

1
Out of stock

5

SOCKET

371-84312-60-00

—

$26.52

In stock

6

SPRING, REFLECTOR SET

1M1-84124-60-00

1

$7.51

In stock

7

COLLAR

1M1-84133-60-00

—

$6.86

In stock

8

. SPACER

498-84128-60-00

1
Out of stock

9

BODY ASSY, HEADLIGHT

3J0-84130-60-00

—

$65.58

In stock

10

COLLAR, BODY FITTING

498-84145-60-00

1

$6.52

In stock

11

DAMPER, HEAD LAMP A

498-84163-60-00

1

$5.68

In stock

12

DAMPER

1M1-84164-60-00

1

$22.31

In stock

13

BOLT, HEXAGON

1M1-84137-60-00

1

$5.17

In stock
