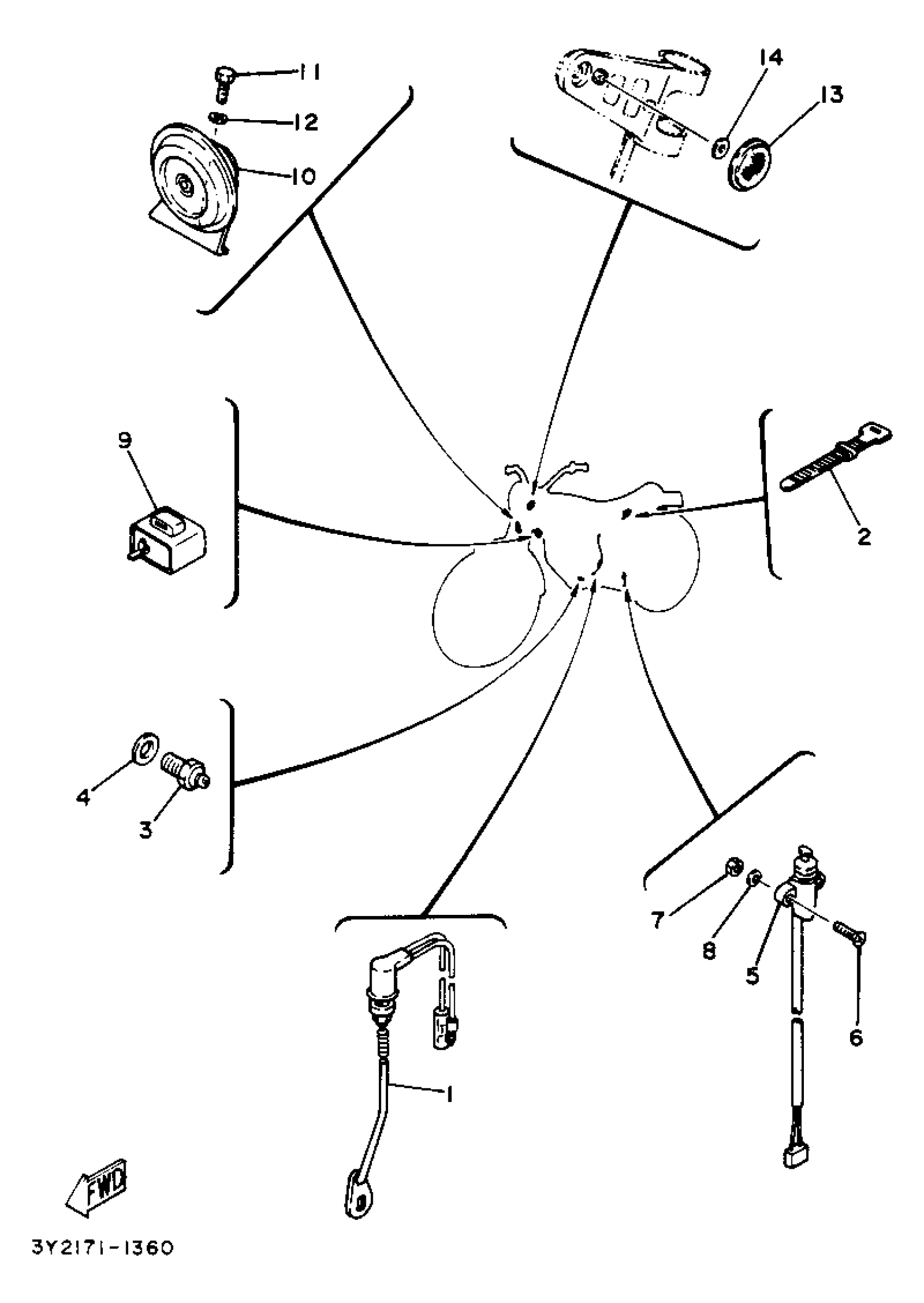

Find the part on the Electrical 2 diagram for your 1982 Yamaha XT250J_1982, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT250J_1982 Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STOP SWITCH ASSEMBLY

3Y1-82530-02-00

1
Out of stock

2

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

3

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

4

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

5

SWITCH, SIDE STAND

33E-82566-00-00

—
Out of stock

6

SCREW, FLAT

98707-05020-00

1
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

FLASHER RELAY ASSY

3BK-83350-00-00

—
Out of stock

10

HORN

1N5-83371-20-00

1
Out of stock

11

BOLT (661)

97013-06012-00

1

$4.71

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

REFLECTOR, FRONT 1

355-85111-01-00

1
Out of stock

14

WASHER, PLATE(3AJ)

90202-05191-00

1

$6.01

In stock
