1981 Yamaha XT250H_1981 Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

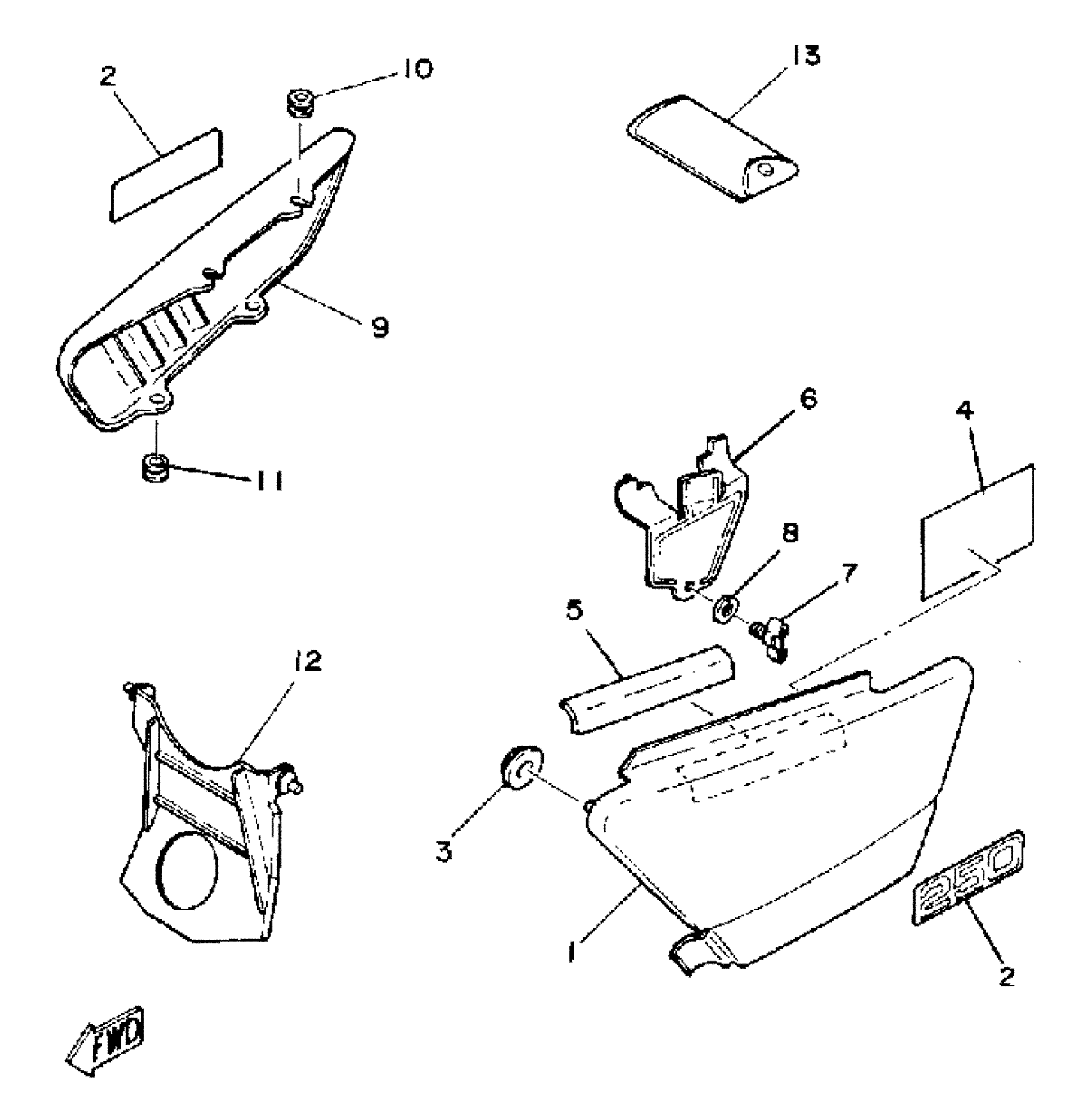

1981 Yamaha XT250H_1981 Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1 (LH)

3Y1-21711-00-20

1
Out of stock

1

COVER, SIDE 1

3Y1-21711-00-63

1
Out of stock

2

EMBLEM 6

(3Y1-21786-00-00)

1
Out of stock

3

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

4

PLATE, SPEC

(3Y1-21683-00-00)

1
Out of stock

5

DAMPER (L.H)

1AE-2834E-00-00

1
Out of stock

6

LID

3Y1-28185-00-00

1
Out of stock

7

BOLT, WING

90122-05010-00

1
Out of stock

8

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

9

COVER, SIDE 2 (RH)

3Y1-21721-00-20

1
Out of stock

9

COVER, SIDE 2

3Y1-21721-00-63

1
Out of stock

10

GROMMET

90480-080264-00

1
Out of stock

11

GROMMET

90480-080264-00

1
Out of stock

12

COVER

3Y1-2177F-00-00

1
Out of stock

13

TOOL KIT

3Y1-W2810-00-00

1
Out of stock
