1981 Yamaha XT250H_1981 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

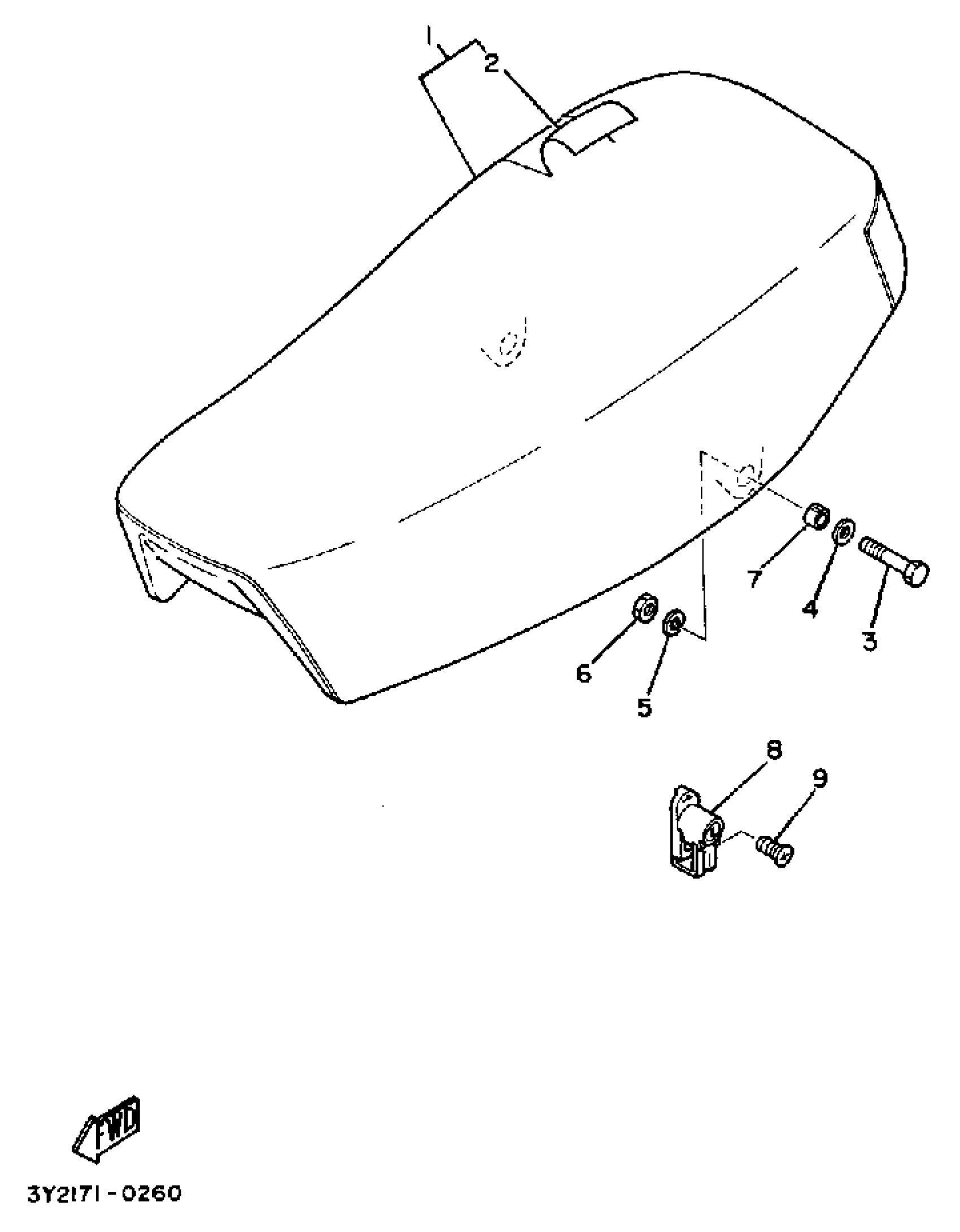

1981 Yamaha XT250H_1981 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DOUBLE SEAT ASSEMBLY

3Y1-W2473-00-00

1
Out of stock

2

. COVER, DOUBLE SEAT

3Y1-24731-00-00

1
Out of stock

3

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

4

WASHER, PLATE (4L0)

90201-062A8-00

1

$6.23

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

COLLAR

90387-10661-00

1
Out of stock

8

HELMET HANGER ASSY

5SE-21308-00-00

1
Out of stock

9

SCREW, OVAL HEAD

98603-06018-00

1
Out of stock
