1981 Yamaha XT250H_1981 Frame Diagram

← All diagrams

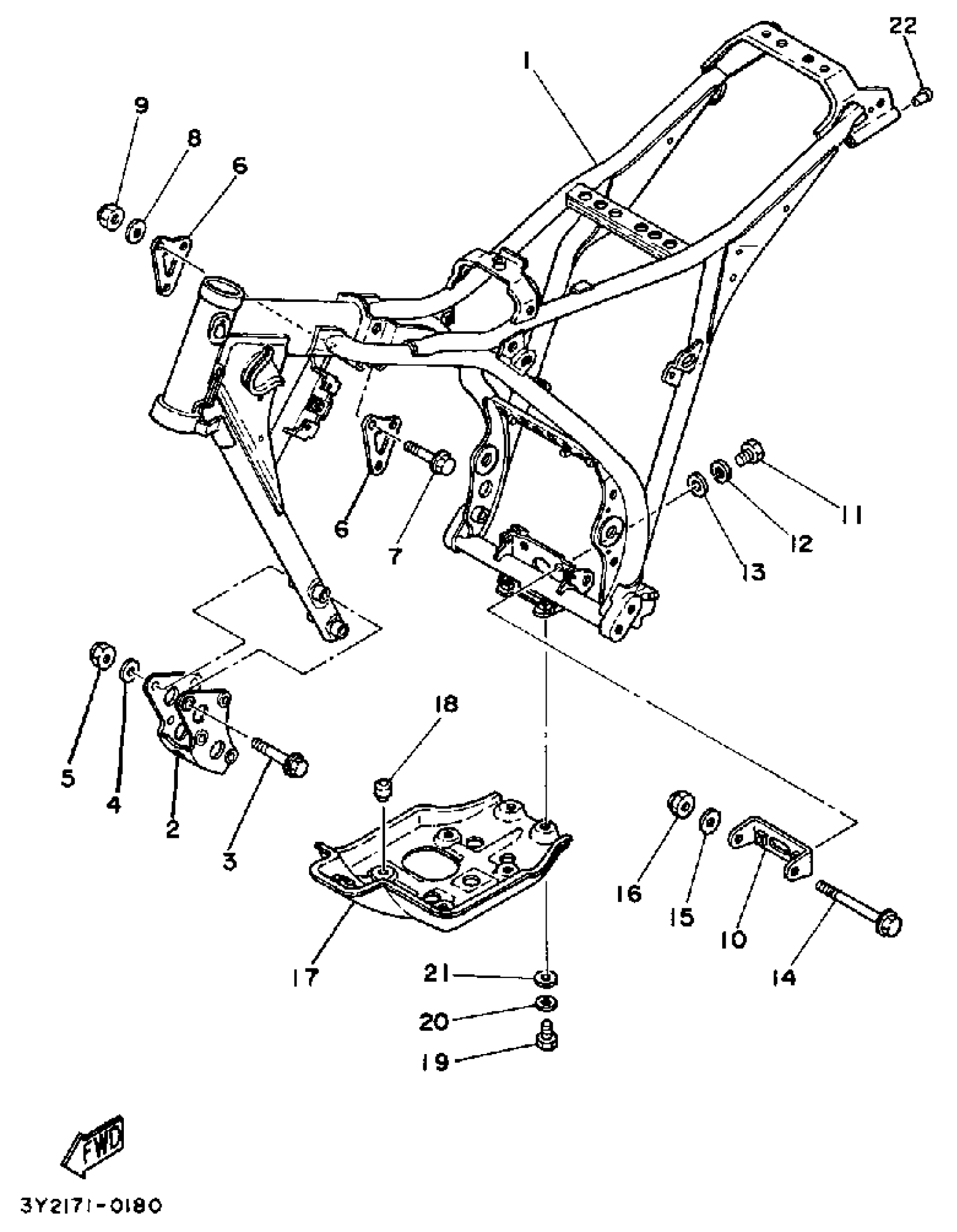

Find the part on the Frame diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H_1981 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP

(99999-01266-00)

1
Out of stock

2

STAY, ENGINE 3

(3Y1-21316-00-00)

1
Out of stock

3

BOLT, FLANGE

95817-06070-00

1
Out of stock

4

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

6

STAY, ENGINE 2

3Y1-21315-00-00

1
Out of stock

7

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

8

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

9

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

10

PLATE, ENGINE ADJUSTING

3Y1-21475-00-00

—

$5.86

In stock

11

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

14

BOLT, WASHER BASED (3Y2)

90105-08162-00

1
Out of stock

15

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

16

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

17

PROTECTOR, ENGINE

3Y1-21471-00-35

1
Out of stock

18

STOPPER

3Y1-24768-00-00

1
Out of stock

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

22

PLUG, BLIND

3Y1-21279-00-00

1
Out of stock
