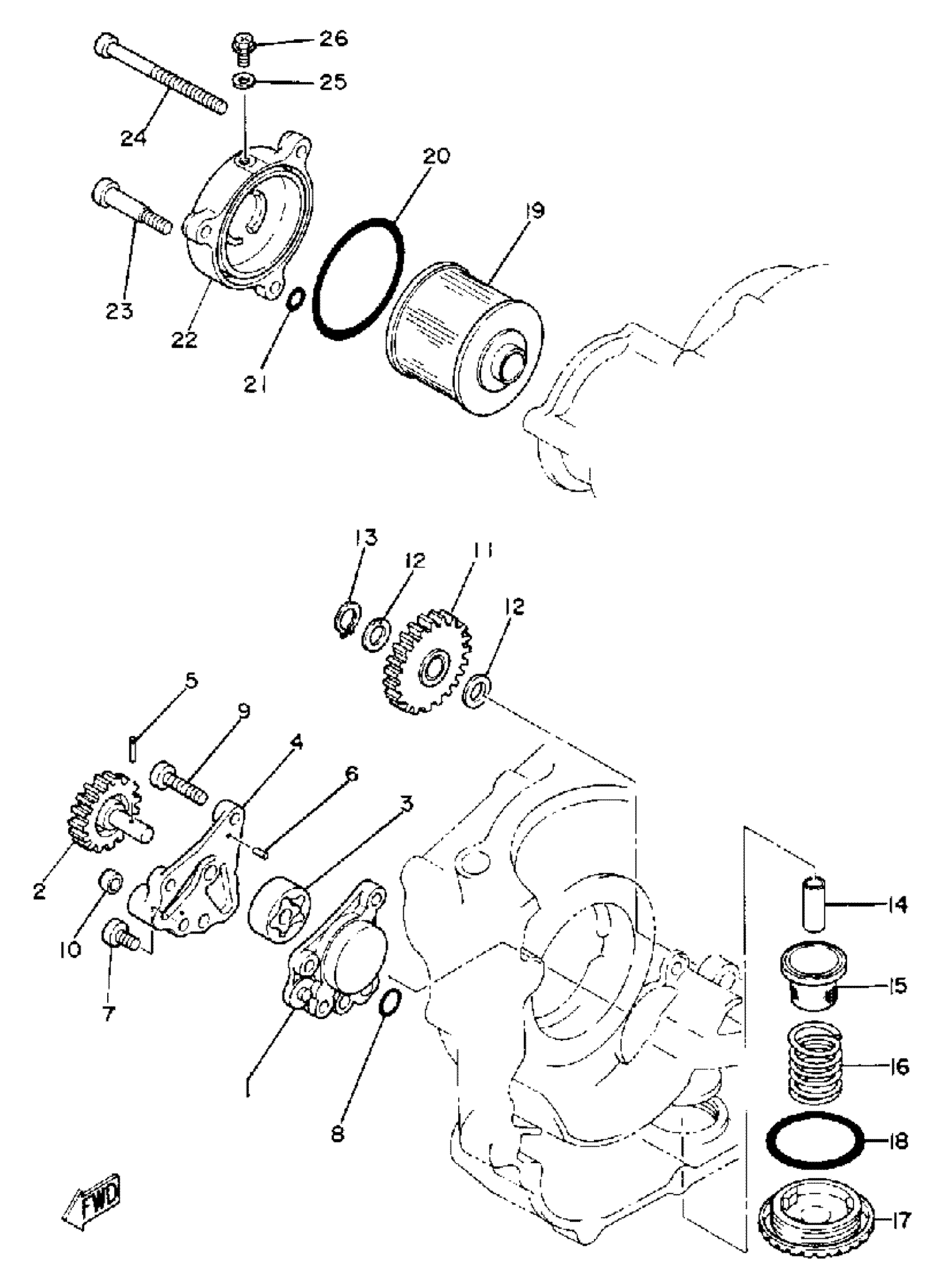

Find the part on the Oil Pump diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H_1981 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, ROTOR 001

(3Y1-13336-00-00)

1
Out of stock

1

OIL PUMP ASY

3Y6-13300-01-00

1
Out of stock

2

GEAR, PUMP DRIVEN 2 001

(3Y1-13326-00-00)

1
Out of stock

2

GEAR, PUMP DRIVEN 2

3Y6-13326-10-00

1
Out of stock

3

ROTOR ASSY 1

3Y1-13301-01-00

1
Out of stock

3

OIL PUMP ASY

3Y6-13300-01-00

1
Out of stock

4

OIL PUMP ASY

3Y6-13300-01-00

1
Out of stock

5

PIN,DOWEL (137)

93603-12030-00

1
Out of stock

6

PIN, DOWEL

93603-07073-00

1
Out of stock

7

SCREW, PAN

98507-06014-00

1
Out of stock

8

O-RING (611)

93210-10096-00

1
Out of stock

9

SCREW, PAN HEAD (76T)

98517-06025-00

1
Out of stock

10

GASKET (3Y1)

90430-06156-00

1
Out of stock

11

GEAR, OIL PUMP IDLE

3Y1-13341-00-00

1
Out of stock

12

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

13

CIRCLIP

99009-10400-00-00

1
Out of stock

14

PIPE, OIL 1

2KK-13416-00-00

1
Out of stock

15

STRAINER, OIL

51Y-13411-00-00

—
Out of stock

16

SPRING, COMPRESSION (3Y1)

90501-18576-00

—
Out of stock

17

PLUG, DRAIN

3Y1-15351-01-00

—
Out of stock

18

O-RING (341)

93210-54175-00

—
Out of stock

19

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

—
Out of stock

20

O-RING (583 OIL CLEANER)

93210-64297-00

—
Out of stock

21

O-RING

93210-07438-00

—
Out of stock

22

COVER, OIL ELEMENT

583-13447-01-00

—
Out of stock

23

BOLT (583 OIL DRAIN)

90109-06419-00

—
Out of stock

24

SCREW, PAN

98507-06075-00

—
Out of stock

25

GASKET

90430-05126-00

1
Out of stock

26

SCREW (583)

90149-05110-00

—
Out of stock
