1981 Yamaha XT250H_1981 Carburetor Diagram

← All diagrams

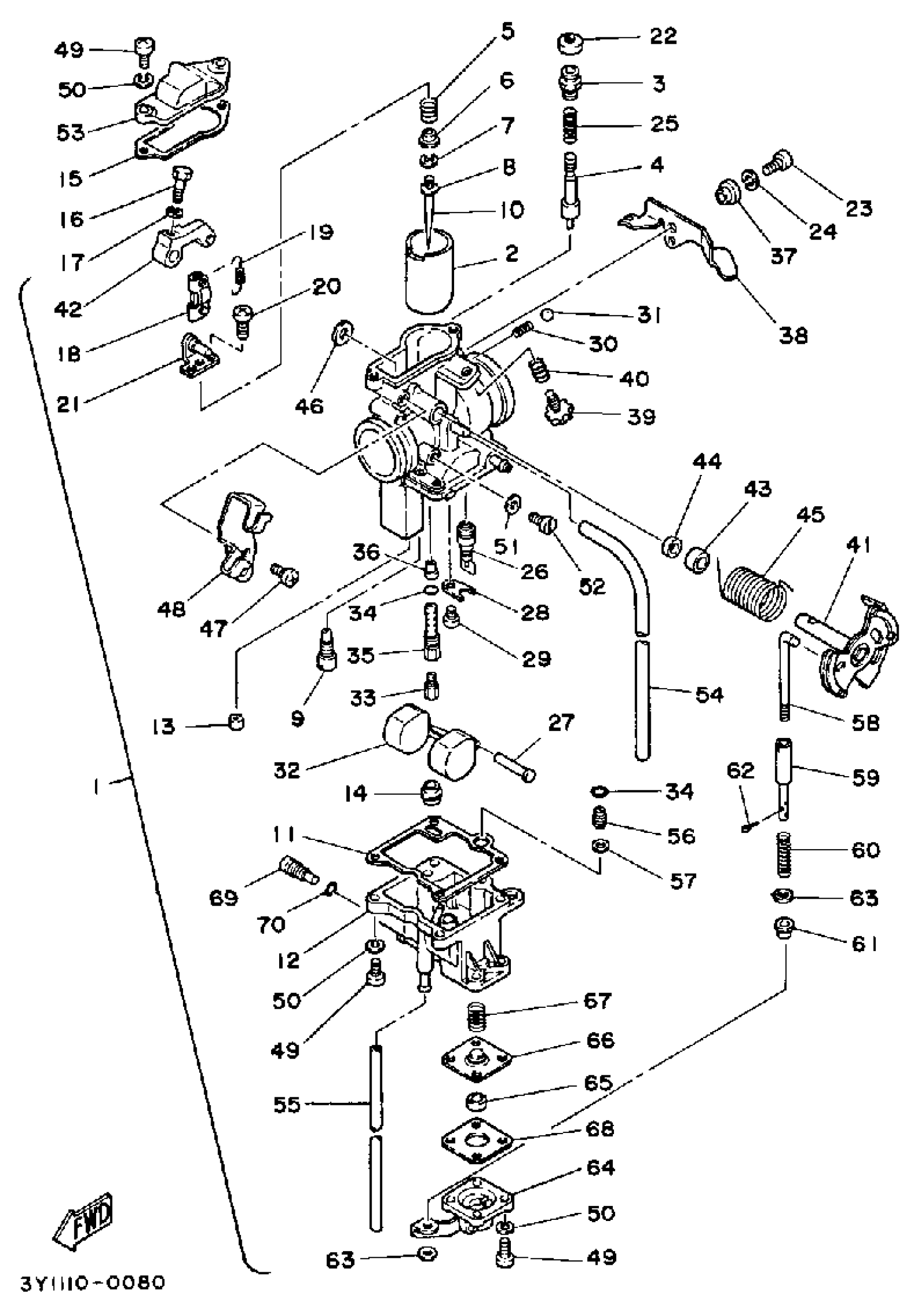

Find the part on the Carburetor diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H_1981 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

3Y1-14101-00-00

1
Out of stock

2

. UNAVAILABLE IN PRICE BOOK

3Y1-14112-25-00

1
Out of stock

3

CAP, PLUNGER

(3Y1-14174-00-00)

1
Out of stock

4

. PLUNGER, STARTER

3Y1-14171-00-00

1
Out of stock

5

. SPRING

3H1-14589-00-00

1
Out of stock

6

. WASHER

2N6-14227-01-00

1
Out of stock

7

CLIP

3FA-14137-00-00

1

$6.80

In stock

8

. RING

2N6-14918-01-00

1
Out of stock

9

. JET PILOT 175 (3Y1-14142-17-A0)

3Y1-14142-17-00

1
Out of stock

10

. UNAVAILABLE IN PRICE BOOK

168-14116-65-00

1
Out of stock

11

GASKET

3Y1-14184-00-00

—

$39.28

In stock

12

. BODY, FLOAT CHAMBER

3Y1-14981-10-00

1
Out of stock

13

CAP

3F9-14118-00-00

—

$7.51

In stock

14

. WASHER, MAIN JET

3Y1-14153-00-00

1
Out of stock

15

GASKET

3Y1-14536-00-00

—

$46.57

In stock

16

. SCREW

3Y1-14592-00-00

1
Out of stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

18

. LEVER

3Y1-14276-00-00

1
Out of stock

19

. SPRING

3Y1-14275-00-00

1
Out of stock

20

SCREW

3Y1-24453-00-00

1
Out of stock

21

. BRACKET 1

3Y1-14291-00-00

1
Out of stock

22

. COVER, PLUNGER

3A3-14173-00-00

1
Out of stock

23

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

26

NEEDLE VALVE ASSY

2H0-14190-20-00

—

$35.06

In stock

27

PIN, FLOAT

537-14186-00-00

—
Out of stock

28

. PLATE

2H0-14146-00-00

1
Out of stock

29

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

30

SPRING

583-14589-00-00

—

$4.74

In stock

31

BALL

93501-08001-00

—

$0.97

In stock

32

. FLOAT

3H1-14185-00-00

1
Out of stock

33

JET, MAIN (#165)

137-14143-33-00

—

$6.31

In stock

34

O-RING

583-14561-00-00

—

$4.74

In stock

35

. PIPE

3H1-14148-00-00

1
Out of stock

36

. NOZZLE, MAIN

3Y1-14141-38-00

1
Out of stock

37

. NUT

583-14594-00-00

1
Out of stock

38

. LEVER STARTER 1

3Y1-14175-00-00

1
Out of stock

39

. THROTTLE SCREW SET

24U-14103-00-00

1
Out of stock

40

. , SPRING, THROTTLE STOP

3F7-14934-00-00

1
Out of stock

41

. SHAFT, THROTTLE LEVER

3Y1-14215-00-00

1
Out of stock

42

. BRACKET 2

3Y1-14292-00-00

1
Out of stock

43

COLLAR

(3F7-14265-00-00)

1
Out of stock

44

SEAL

2A2-14997-00-00

—
Out of stock

45

. SPRING, THROTTLE VALVE

3Y1-14131-00-00

1
Out of stock

46

WASHER (3H1)

1A8-14953-00-00

—

$3.69

In stock

47

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

48

. BRACKET, THROTTLE

3Y1-14571-00-00

1
Out of stock

49

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

50

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

51

.. WASHER, PLUG SCREW

584-14956-00-00

1
Out of stock

52

. PLUG, SCREW

2F5-14115-00-00

1
Out of stock

53

. TOP, MIXING CHAMBER

3Y1-14158-00-00

1
Out of stock

54

PIPE

26H-14197-01-00

—

$34.32

In stock

55

HOSE

88R-14987-00-00

1
Out of stock

56

. VALVE, CHECK SEAT

2H0-14272-00-00

1
Out of stock

57

. WASHER, NEEDLE VALVE

2H0-14195-00-00

1
Out of stock

58

. ROD

3Y1-14992-00-00

1
Out of stock

59

. ROD

2H0-14992-00-00

1
Out of stock

60

. SPRING, DIAPHRAGM

3Y1-14933-00-00

1
Out of stock

61

. COLLAR

2H0-14534-00-00

1
Out of stock

62

. PIN, COTTER

91401-10015-00

1
Out of stock

63

. WASHER

2H0-14227-00-00

1
Out of stock

64

LEVER, STARTER

(3Y1-14905-00-00)

1
Out of stock

65

. RING

3Y0-14918-00-00

1
Out of stock

66

DIAPHRAGM ASSY

3Y1-14940-00-00

—

$40.00

In stock

67

. SPRING

3Y1-14589-00-00

1
Out of stock

68

. SEAT, SPRING

3Y1-14936-00-00

1
Out of stock

69

. PLUG, DRAIN

2LR-14191-00-00

1
Out of stock

70

O-RING

214-14147-00-00

—
Out of stock
