1981 Yamaha XT250H Shift Shaft Diagram

← All diagrams

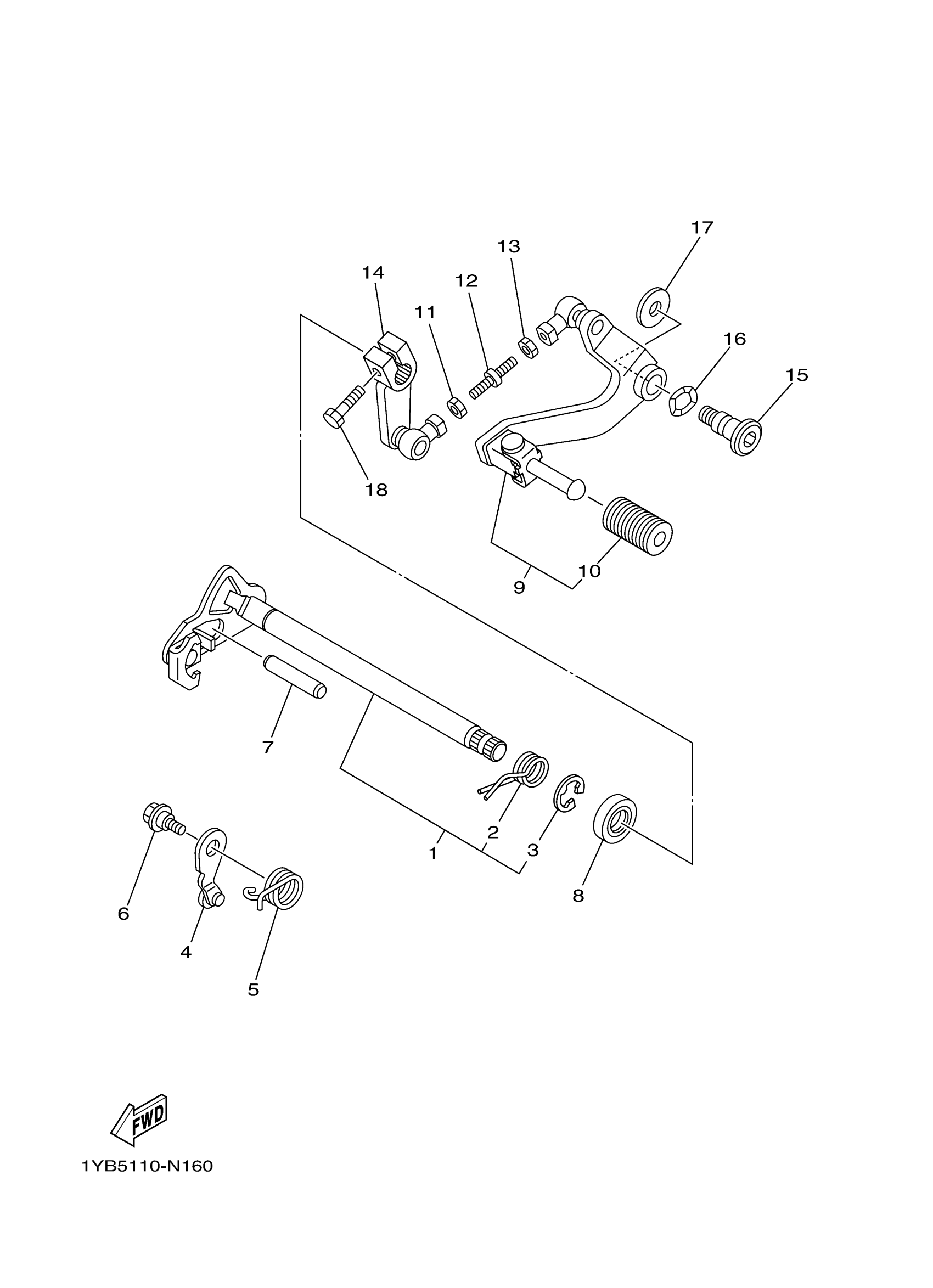

Find the part on the Shift Shaft diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSY

5XT-18101-03-00

1

$64.48

In stock

2

SPRING, TORSION

90508-32139-00

1

$3.95

In stock

3

. CIRCLIP

99001-12600-00

1

$5.78

In stock

4

STOPPER LEVER ASSY

4TP-18140-00-00

—

$21.20

In stock

5

SPRING, TORSION

90508-26020-00

—

$5.23

In stock

6

BOLT

90109-06190-00

1

$3.49

In stock

7

PIN, DOWEL(4GY)

93608-43228-00

1

$4.49

In stock

8

OIL SEAL (3Y1)

93102-14209-00

1

$9.77

In stock

9

SHIFT PEDAL ASSY

5XT-18110-20-00

—

$59.73

In stock

10

COVER, CHANGE PEDAL

1W6-18113-00-00

1

$3.91

In stock

11

NUT(JN5)

95317-06700-00

1

$6.69

In stock

12

ROD, SHIFT

5XT-18115-10-00

—

$37.32

In stock

13

NUT

90170-06022-00

1

$2.83

In stock

14

ARM, SHIFT

5XT-18112-10-00

1

$51.45

In stock

15

BOLT

5XT-27434-10-00

1

$11.48

In stock

16

WASHER, WAVE (17W)

90206-12074-00

—

$6.98

In stock

17

WASHER, PLATE (3L7)

90201-08784-00

—

$2.54

In stock

18

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock
