1981 Yamaha XT250H Shift Shaft Pedal Diagram

← All diagrams

Find the part on the Shift Shaft Pedal diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

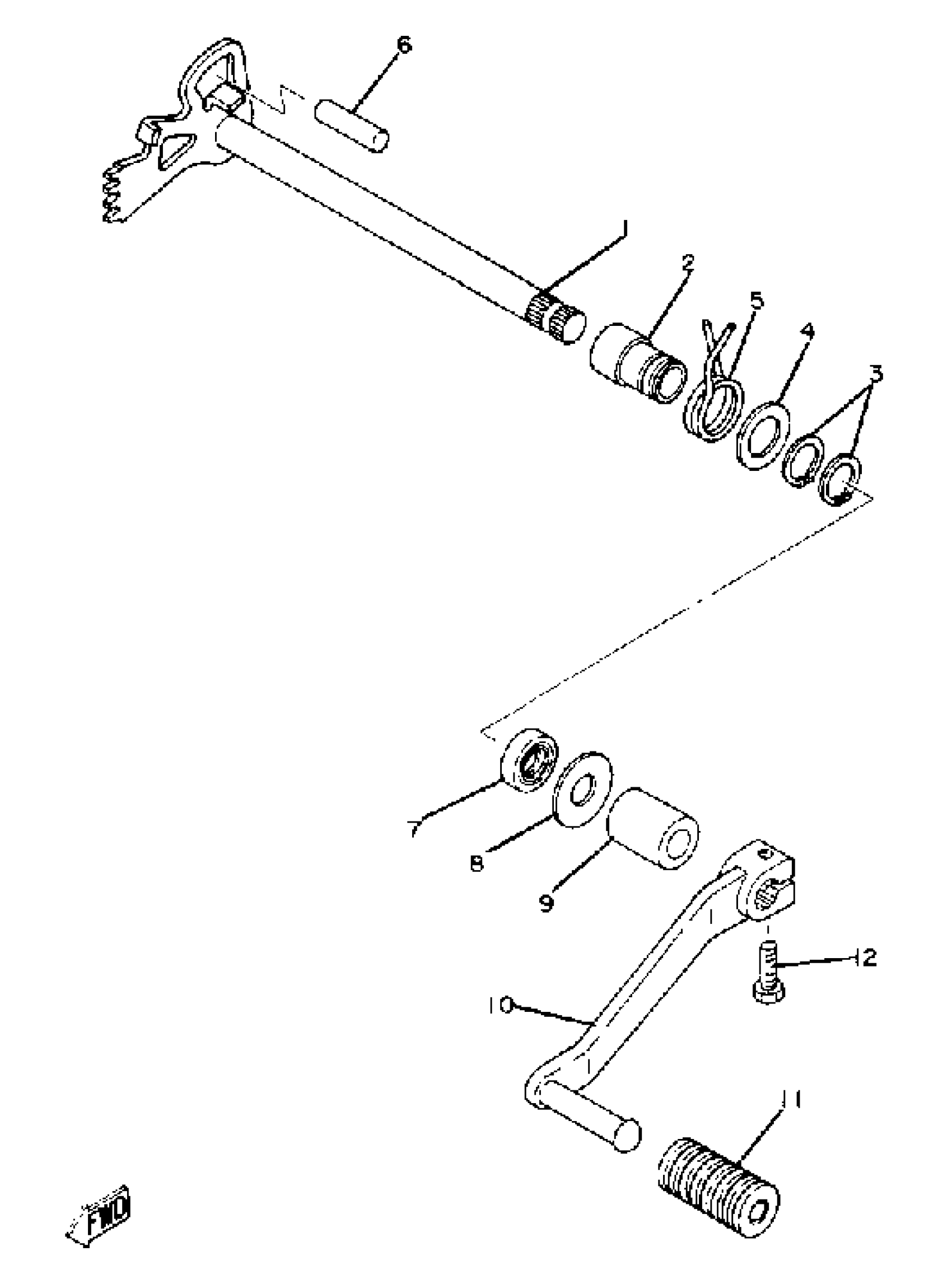

1981 Yamaha XT250H Shift Shaft Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSY

3Y1-18101-01-00

—
Out of stock

2

COLLAR (3Y1)

90387-12787-00

1

$9.55

In stock

3

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

4

WASHER, PLATE (30X)

90201-177G4-00

1
Out of stock

5

SPRING, TORSION (2K7)

90508-32374-00

1
Out of stock

6

PIN, DOWEL

93608-30152-00

1
Out of stock

7

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

8

WASHER

90201-12588-00

1

$6.37

In stock

9

SPACER (3Y1)

90560-12191-00

1
Out of stock

10

PEDAL,SHIFT

3Y1-18111-00-00

1
Out of stock

11

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

12

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
