1981 Yamaha XT250H Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

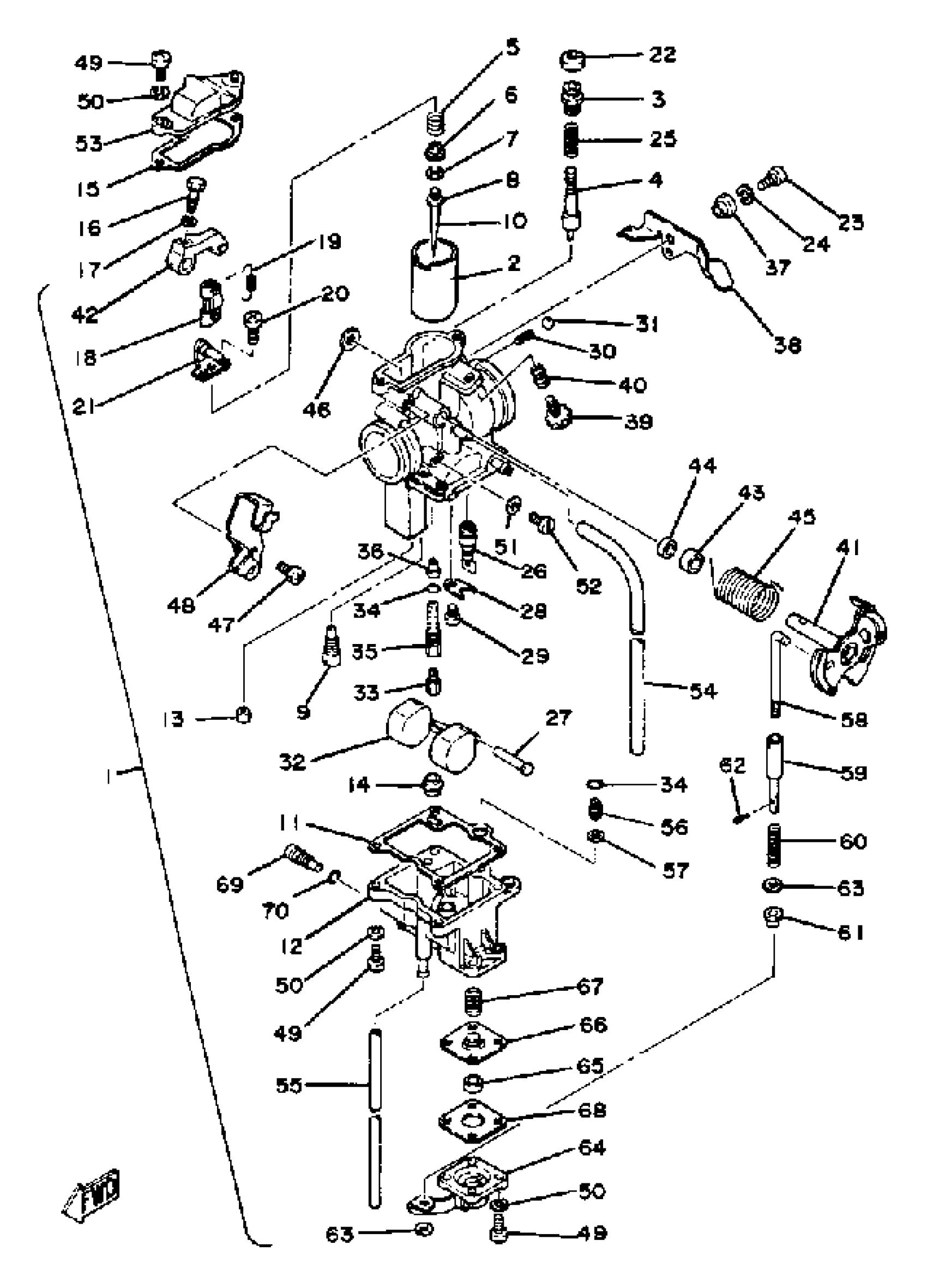

1981 Yamaha XT250H Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

3Y1-14101-00-00

1
Out of stock

2

VALVE, THROTTLE 1

(3Y1-14112-25-00)

1
Out of stock

3

CAP, PLUNGER

(3Y1-14174-00-00)

1
Out of stock

4

. PLUNGER, STARTER

3Y1-14171-00-00

1
Out of stock

5

. SPRING

3H1-14589-00-00

1
Out of stock

6

. WASHER

2N6-14227-01-00

1
Out of stock

7

CLIP

3FA-14137-00-00

1

$6.80

In stock

8

. RING

2N6-14918-01-00

1
Out of stock

9

. JET PILOT 175 (3Y1-14142-17-A0)

3Y1-14142-17-00

1
Out of stock

10

NEEDLE

(168-14116-65-00)

1
Out of stock

11

GASKET

3Y1-14184-00-00

—

$39.28

In stock

12

. BODY, FLOAT CHAMBER

3Y1-14981-10-00

1
Out of stock

13

CAP

3F9-14118-00-00

—

$7.51

In stock

14

WASHER, MAIN JET

(3Y1-14153-00-00)

1
Out of stock

15

GASKET

3Y1-14536-00-00

—

$46.57

In stock

16

SCREW

(3Y1-14592-00-00)

1
Out of stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

18

LEVER

(3Y1-14276-00-00)

1
Out of stock

19

SPRING

(3Y1-14275-00-00)

1
Out of stock

20

SCREW

(3Y1-24453-00-00)

1
Out of stock

21

BRACKET 1

(3Y1-14291-00-00)

1
Out of stock

22

. COVER, PLUNGER

3A3-14173-00-00

1
Out of stock

23

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

26

NEEDLE VALVE ASSY

2H0-14190-20-00

—

$35.06

In stock

27

PIN, FLOAT

537-14186-00-00

—
Out of stock

28

. PLATE

2H0-14146-00-00

1
Out of stock

29

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

30

SPRING

583-14589-00-00

—

$4.74

In stock

31

BALL

93501-08001-00

—

$0.97

In stock

32

. FLOAT

3H1-14185-00-00

1
Out of stock

33

JET, MAIN (#165)

137-14143-33-00

—

$6.31

In stock

34

O-RING

583-14561-00-00

—

$4.74

In stock

35

. PIPE

3H1-14148-00-00

1
Out of stock

36

NOZZLE, MAIN

(3Y1-14141-38-00)

1
Out of stock

37

. NUT

583-14594-00-00

1
Out of stock

38

. LEVER STARTER 1

3Y1-14175-00-00

1
Out of stock

39

. THROTTLE SCREW SET

24U-14103-00-00

1
Out of stock

40

. , SPRING, THROTTLE STOP

3F7-14934-00-00

1
Out of stock

41

. SHAFT, THROTTLE LEVER

3Y1-14215-00-00

1
Out of stock

42

BRACKET 2

(3Y1-14292-00-00)

1
Out of stock

43

COLLAR

(3F7-14265-00-00)

1
Out of stock

44

SEAL

2A2-14997-00-00

—
Out of stock

45

. SPRING, THROTTLE VALVE

3Y1-14131-00-00

1
Out of stock

46

WASHER (3H1)

1A8-14953-00-00

—

$3.69

In stock

47

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

48

. BRACKET, THROTTLE

3Y1-14571-00-00

1
Out of stock

49

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

50

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

51

.. WASHER, PLUG SCREW

584-14956-00-00

1
Out of stock

52

. PLUG, SCREW

2F5-14115-00-00

1
Out of stock

53

TOP, MIXING CHAMBER

(3Y1-14158-00-00)

1
Out of stock

54

PIPE

26H-14197-01-00

—

$34.32

In stock

55

HOSE

88R-14987-00-00

1
Out of stock

56

. VALVE, CHECK SEAT

2H0-14272-00-00

1
Out of stock

57

. WASHER, NEEDLE VALVE

2H0-14195-00-00

1
Out of stock

58

. ROD

3Y1-14992-00-00

1
Out of stock

59

. ROD

2H0-14992-00-00

1
Out of stock

60

. SPRING, DIAPHRAGM

3Y1-14933-00-00

1
Out of stock

61

. COLLAR

2H0-14534-00-00

1
Out of stock

62

. PIN, COTTER

91401-10015-00

1
Out of stock

63

. WASHER

2H0-14227-00-00

1
Out of stock

64

LEVER, STARTER

(3Y1-14905-00-00)

1
Out of stock

65

. RING

3Y0-14918-00-00

1
Out of stock

66

DIAPHRAGM ASSY

3Y1-14940-00-00

—

$40.00

In stock

67

. SPRING

3Y1-14589-00-00

1
Out of stock

68

. SEAT, SPRING

3Y1-14936-00-00

1
Out of stock

69

SCREW

2L1-14191-00-00

—
Out of stock

70

O-RING

214-14147-00-00

—
Out of stock
