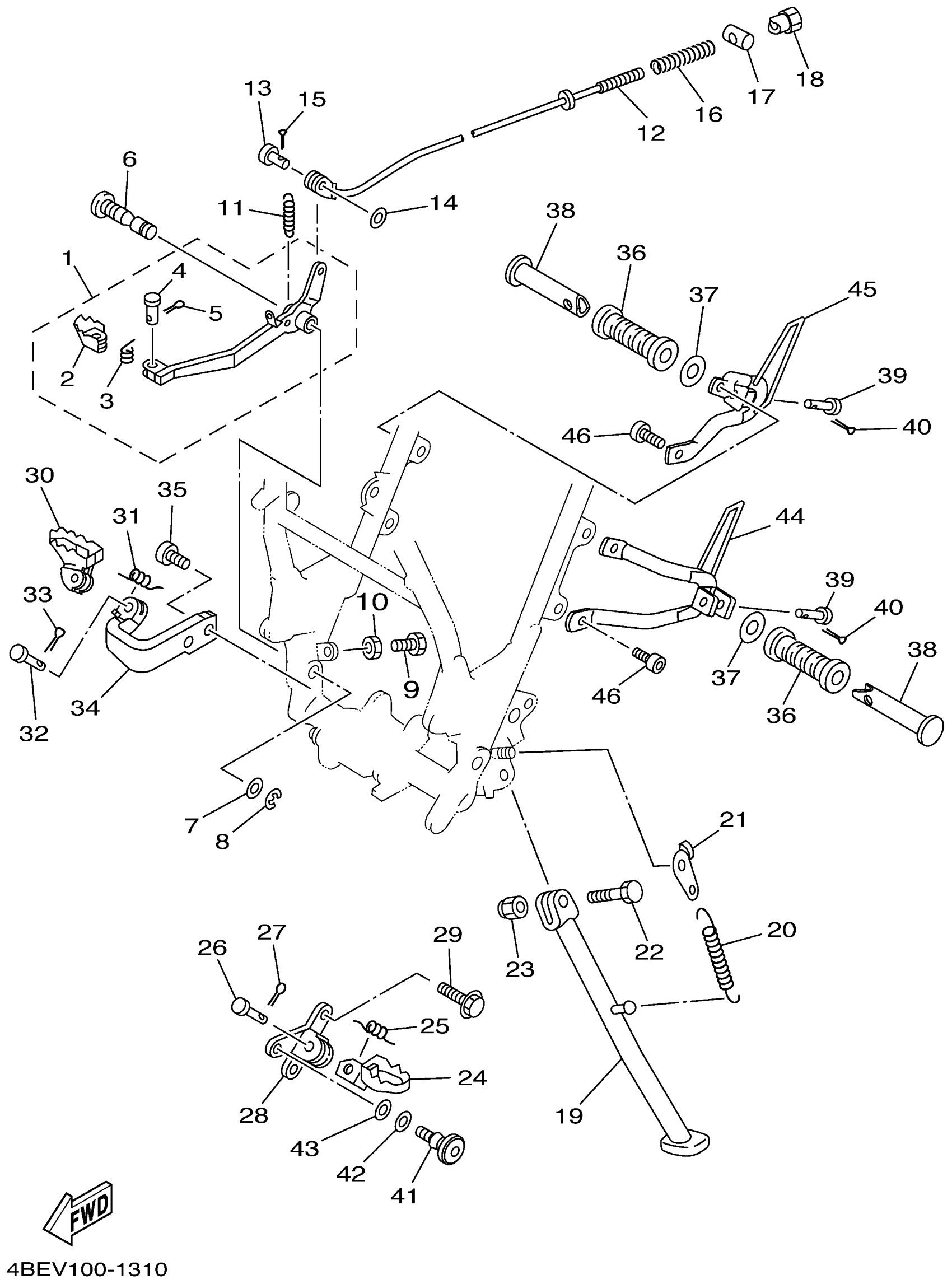

Find the part on the Stand Footrest diagram for your 2001 Yamaha XT225 CA (XT225NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha XT225 CA (XT225NC) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

1KH-27200-00-00

1
Out of stock

2

PEDAL, BRAKE

55V-27242-00-00

1

$19.86

In stock

3

SPRING, TORSION (1W2)

90508-14352-00

1

$6.89

In stock

4

PIN, COTTER (1W2)

91701-06022-00

1

$1.83

In stock

5

PIN, COTTER (648)

91490-20015-00

1

$1.85

In stock

6

SHAFT, BRAKE PEDAL

1KH-27212-01-00

1
Out of stock

7

WASHER, PLATE (525)

90201-12541-00

1
Out of stock

8

CIRCLIP (4V2)

93430-09038-00

1
Out of stock

9

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

10

NUT(JN5)

95317-06700-00

1

$6.69

In stock

11

SPRING, TENSION (23X)

90506-18305-00

1
Out of stock

12

ROD, BRAKE

1KH-27231-01-00

1
Out of stock

13

PIN, CLEVIS (3X3)

90240-06076-00

1

$6.17

In stock

14

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

15

PIN, COTTER (648)

91490-20015-00

1

$1.85

In stock

16

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

17

PIN 1562723700

90249-12008-00

—

$4.70

In stock

18

NUT (25K)

90179-06411-00

—

$5.10

In stock

19

STAND, SIDE

4BE-27311-01-00

—
Out of stock

20

SPRING, MAIN STAND

4KN-27116-00-00

—

$10.32

In stock

21

LINK, SIDE STAND

42U-27315-01-00

—
Out of stock

22

BOLT(2GH)

90109-104E6-00

—

$8.12

In stock

23

NUT, U

90185-10037-00

—

$6.68

In stock

24

FOOTREST 1

22W-27411-01-90

—
Out of stock

25

—

$3.26

In stock

26

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

27

PIN, COTTER

91490-25020-00

—

$2.94

In stock

28

BRACKET, FOOTREST 1

1KH-27412-00-00

1
Out of stock

29

BOLT, FLANGE(3HP)

95817-10016-00

—

$6.17

In stock

30

FOOTREST 2

1KH-27421-00-90

—
Out of stock

31

SPRING TORSION 371274560000

90508-20155-00

—
Out of stock

32

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

33

PIN, COTTER

91490-25020-00

—

$2.94

In stock

34

BRACKET, FOOTREST 2

1KH-27422-01-00

1
Out of stock

35

BOLT, SOCKET

91317-10020-00

—

$6.68

In stock

36

COVER, REAR FOOTREST

120-27433-00-00

—

$7.51

In stock

37

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

38

FOOTREST, REAR 1

2GV-27431-00-00

—

$27.39

In stock

39

PIN, CLEVIS (1Y8)

91701-06032-00

—

$6.85

In stock

40

PIN, COTTER (648)

91490-20015-00

1

$1.85

In stock

41

BOLT

4BP-27434-11-00

—

$2.57

In stock

42

WASHER, PLATE(51Y)

90201-120K4-00

—
Out of stock

43

WASHER, PLATE (3L7)

90201-08784-00

—

$2.54

In stock

44

BRACKET 1

3RW-27432-00-00

1
Out of stock

45

BRACKET 2

3RW-27442-00-00

—
Out of stock

46

BOLT, BUTTON

92017-08020-00

—

$5.86

In stock
