2001 Yamaha XT225 CA (XT225NC) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 2001 Yamaha XT225 CA (XT225NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

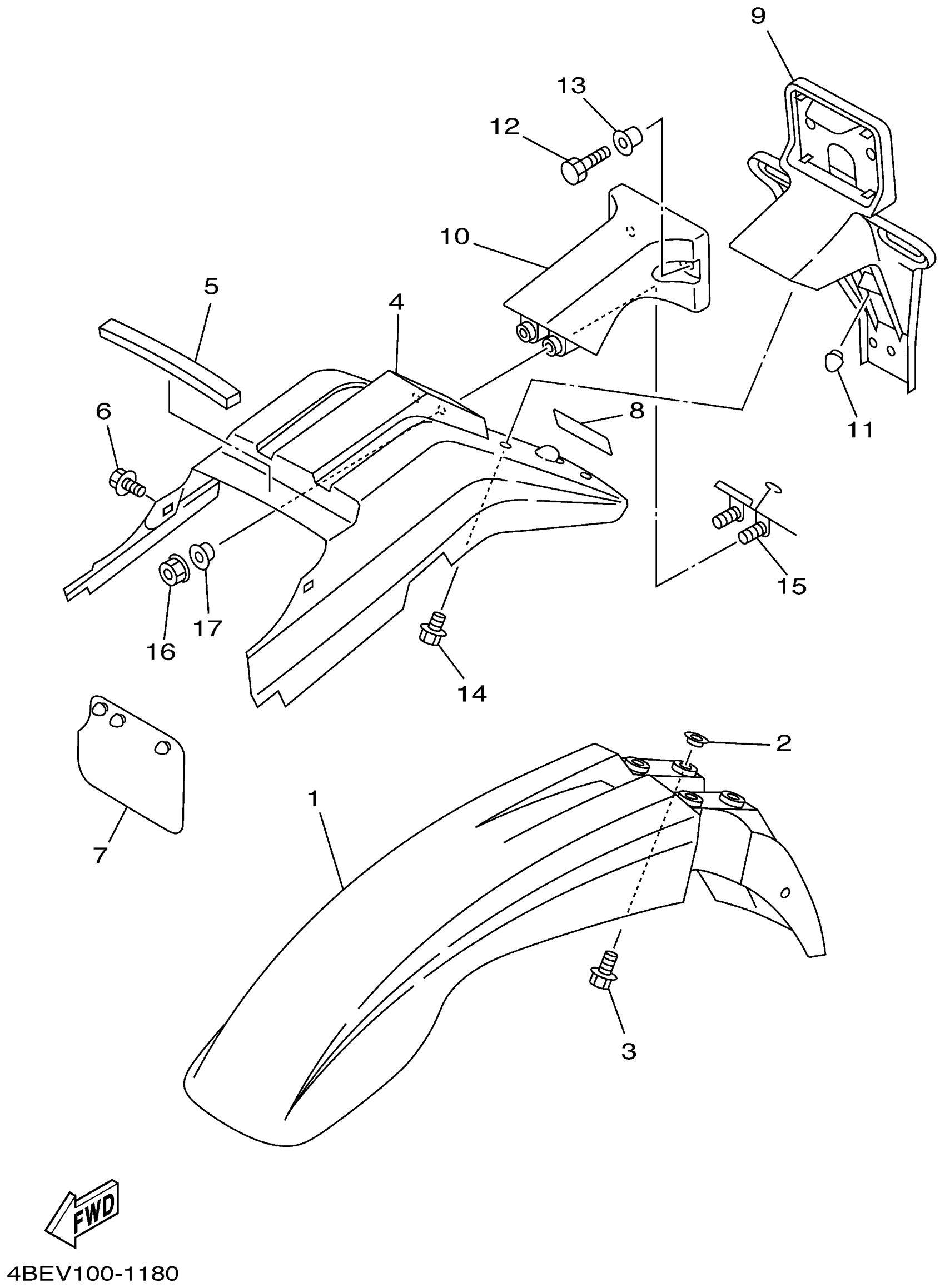

2001 Yamaha XT225 CA (XT225NC) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

4BE-21511-00-00

—
Out of stock

2

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

3

BOLT, WITH WASHER (10V)

90119-06063-00

1

$6.29

In stock

4

FENDER,REAR

99999-03284-00

1
Out of stock

5

DAMPER

3RW-21639-00-00

1
Out of stock

6

BOLT, WITH WASHER

90119-06152-00

1

$2.74

In stock

7

FLAP

34X-21691-00-00

1
Out of stock

8

EMBLEM, YAMAHA

3WF-2153E-71-00

1

$4.48

In stock

9

BRACKET, LICENCE

4BE-84551-00-00

1
Out of stock

10

DAMPER

4BE-84527-00-00

1
Out of stock

11

DAMPER 2

42U-21639-00-00

—
Out of stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

14

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

15

CLAMP, WIRE

4BE-21637-00-00

—
Out of stock

16

NUT(6TA)

95317-06600-00

—

$2.69

In stock

17

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock
